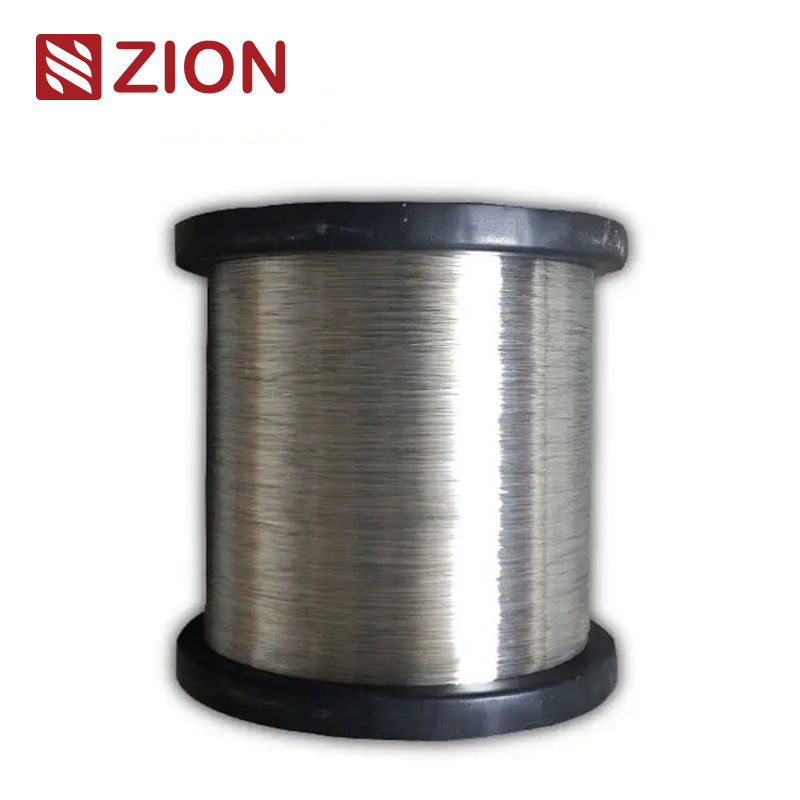

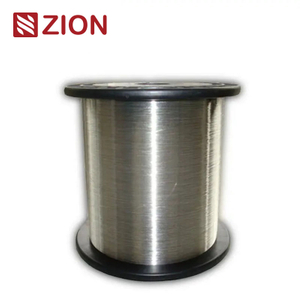

Aluminum-Magnesium alloy wire
HELLOSIGNALTM OR OEM
7500000
CE/ROHS/ISO9001/SGS
0.1mm-3.0mm
according to the clients' request
500kgs
Normally 25 days after received the deposit.
NINGBO OR SHANGHAI
T/T,L/C
| Material: | |
|---|---|
| Availability: | |
Product Description
It is made by melting aluminum ingot, magnesium ingot and other metal raw materials which will get through several times drawing pricesses and high- temperarure annealed. There will be no metamorphosing during the heat treatment or mechanical workout. Producible scope: diameter is from Φ0.10mm to 3.00mm.
Product Fearures: bright color and excellent electrical conductivity, can bear being bended, good tensile strength and elongation, light density and so on.
Main Application: flexible coaxial cable, a variety of audio and video cable, vehicle signal cable, network cable, data transmission cables and so on. Al-Mg alloy wire 5154 can be used in the above cables: cable conductor, braiding and shielding, the single wire conductor and other conductors. Applicable to a variety of electronic components' lead wire, such as capactiors, resistors and so on.
Al-Mg alloy wire 5154(parameter table)
| Nomial diameter Φ /mm | Diameter difference ±mm | Resistivity (20℃) ≤Ω.km／mm2 | Measured resistance (20 ℃) ≤Ω／km | Density (20 ℃) g／cm3 | conductivity (20 ℃) ≥％ |
| 0.1 | 0.003 | 48 | 6111 | 2.78 | 36 |
| 0.11 | 0.003 | 48 | 5050 | 2.78 | 36 |
| 0.12 | 0.003 | 48 | 4244 | 2.78 | 36 |
| 0.13 | 0.003 | 48 | 3616 | 2.78 | 36 |
| 0.14 | 0.003 | 48 | 3118 | 2.78 | 36 |
| 0.15 | 0.003 | 48 | 2716 | 2.78 | 36 |
| 0.16 | 0.003 | 48 | 2387 | 2.78 | 36 |
| 0.17 | 0.003 | 48 | 2114 | 2.78 | 36 |
| 0.18 | 0.003 | 48 | 1886 | 2.78 | 36 |
| 0.19 | 0.003 | 48 | 1692 | 2.78 | 36 |
| 0.2 | 0.004 | 48 | 1527 | 2.78 | 36 |
| 0.25 | 0.004 | 48 | 977 | 2.78 | 36 |
| 0.3 | 0.004 | 48 | 679 | 2.78 | 36 |
| 0.35 | 0.004 | 48 | 498 | 2.78 | 36 |
| 0.4 | 0.005 | 48 | 381 | 2.78 | 36 |
| 0.45 | 0.005 | 48 | 301 | 2.78 | 36 |
| 0.5 | 0.005 | 48 | 244 | 2.78 | 36 |
| 0.64 | 0.006 | 48 | 149 | 2.78 | 36 |
| 0.7 | 0.007 | 48 | 124 | 2.78 | 36 |
| 0.81 | 0.008 | 48 | 93.1 | 2.78 | 36 |
| 0.9 | 0.009 | 48 | 75.4 | 2.78 | 36 |
| 1.02 | 0.01 | 48 | 58.7 | 2.78 | 36 |
| 1.13 | 0.011 | 48 | 47.8 | 2.78 | 36 |
| 1.38 | 0.013 | 48 | 32 | 2.78 | 36 |
| 1.63 | 0.016 | 48 | 23 | 2.78 | 36 |
| 1.78 | 0.017 | 48 | 19.2 | 2.78 | 36 |
| 1.96 | 0.019 | 48 | 15.9 | 2.78 | 36 |

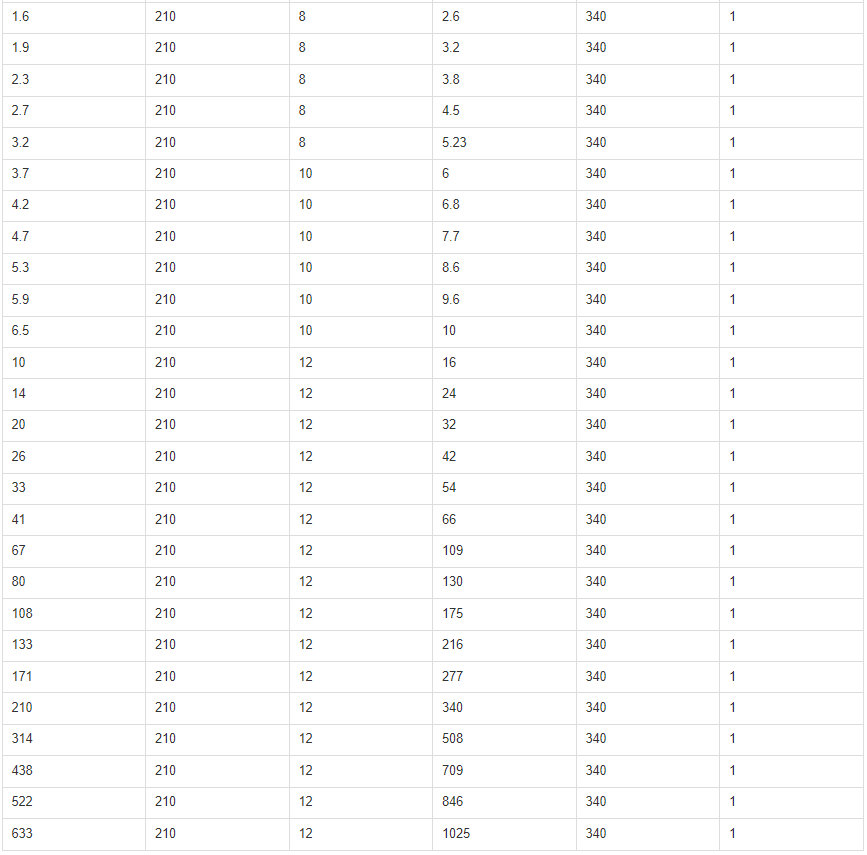

| Intensity test of the soft state ≥N | Tensile strength of soft-state ≥N／mm2 | soft-state elongstion ≥％ | Hard measured intensity ≥N | Tensile strength of hard-state ≥N／mm2 | Hard elongation ≥％ |
| 1.6 | 210 | 8 | 2.6 | 340 | 1 |
| 1.9 | 210 | 8 | 3.2 | 340 | 1 |
| 2.3 | 210 | 8 | 3.8 | 340 | 1 |
| 2.7 | 210 | 8 | 4.5 | 340 | 1 |
| 3.2 | 210 | 8 | 5.23 | 340 | 1 |
| 3.7 | 210 | 10 | 6 | 340 | 1 |
| 4.2 | 210 | 10 | 6.8 | 340 | 1 |
| 4.7 | 210 | 10 | 7.7 | 340 | 1 |
| 5.3 | 210 | 10 | 8.6 | 340 | 1 |
| 5.9 | 210 | 10 | 9.6 | 340 | 1 |
| 6.5 | 210 | 10 | 10 | 340 | 1 |
| 10 | 210 | 12 | 16 | 340 | 1 |
| 14 | 210 | 12 | 24 | 340 | 1 |
| 20 | 210 | 12 | 32 | 340 | 1 |
| 26 | 210 | 12 | 42 | 340 | 1 |
| 33 | 210 | 12 | 54 | 340 | 1 |
| 41 | 210 | 12 | 66 | 340 | 1 |
| 67 | 210 | 12 | 109 | 340 | 1 |
| 80 | 210 | 12 | 130 | 340 | 1 |
| 108 | 210 | 12 | 175 | 340 | 1 |
| 133 | 210 | 12 | 216 | 340 | 1 |
| 171 | 210 | 12 | 277 | 340 | 1 |
| 210 | 210 | 12 | 340 | 340 | 1 |
| 314 | 210 | 12 | 508 | 340 | 1 |
| 438 | 210 | 12 | 709 | 340 | 1 |
| 522 | 210 | 12 | 846 | 340 | 1 |
| 633 | 210 | 12 | 1025 | 340 | 1 |
The above is just for refernce, we can do as customer's order.

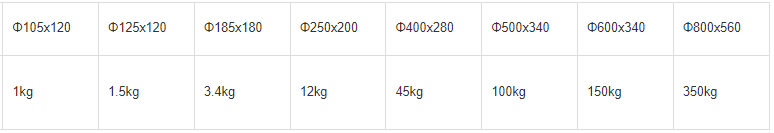

| Package size mm(reel) | Φ105x120 | Φ125x120 | Φ185x180 | Φ250x200 | Φ400x280 | Φ500x340 | Φ600x340 | Φ800x560 |
| Weight of wire per reel(kg) | 1kg | 1.5kg | 3.4kg | 12kg | 45kg | 100kg | 150kg | 350kg |
