1-5/8" RF
hellosignal
XT0312
Specification

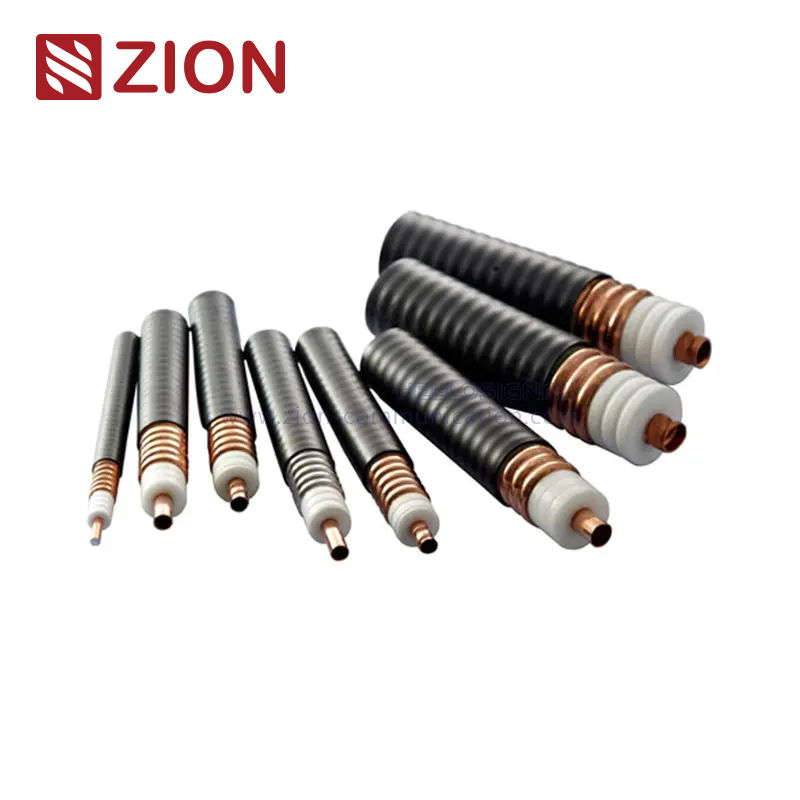

1-5/8" RF Coaxial Cable
| Construction Parameters: | ||
| Inner Conductor | 17.5mm Helical Copper Tube | |
| Dielectric | 43.5mm Foamed PE | |
| Outer Conductor | Nom.46.5mm Corrugated Copper Tube | |
| Jacket | 49.5mm Black PE/Low Smoke Halogen-free Fire-retardant PE | |
| Electrical Characteristics: | ||
| Capacitance | 76 pF/m | |
| Impedance | 50 Ω | |
| Velocity of Propagation | 0.88 | |
| Peak Power Rating | 320 KW | |
| RF Peak Voltage | 5.7 KV | |
| Insulation Resistance | >5000 M.Ω.KM | |
| Cut-off Frequency | 2.8 GHz | |
| Insulation Voltage | 15 KV | |
| Jacket Sparkt | 10 KV | |
| Shielding Effectiveness | >120 dB | |
| Mechanical and Environmental: | ||
| Min.Single Bending Radius | 200 mm | |
| Min.Repeated Bending Radius | 510 mm | |
| No. of Bends | 15 | |
| Tensile Strength | 900 kg | |
| Operating Temp. | -55 to +85 ℃ | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Attenuation (dB/100m) | Average Power(KW) |
| 100 | 0.67 | 16.90 |
| 200 | 0.98 | 11.60 |
| 450 | 1.53 | 7.36 |
| 800 | 2.12 | 5.26 |
| 900 | 2.28 | 4.93 |
| 1000 | 2.42 | 4.61 |
| 1500 | 3.09 | 3.64 |
| 1800 | 3.45 | 3.27 |
| 2000 | 3.68 | 3.00 |
| 3000 | 4.24 | 2.61 |
| Order Informations: | ||
| Marking | HELLOSIGNAL 1-5/8" RF COAXIAL CABLE XXX M (or Per customer's request) | |
| Inner Package | 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request) | |
| Outer Package | Carton, Color Box, Pallet (or Per customer's request) | |
| Delivery time | Normally 15 days after received the deposit. | |
| More informations | please contact with us. | |
| Brand | HELLOSIGNAL® OR OEM | |
