17 VATC BC 75 Ohm CATV coaxial Cable

Construction Parameters:

Inner Conductor

0.051"/1.13mm/16AWG BC

Dielectric

0.180"/4.8mm Foamed PE

Shield 1

0.20"/4.95mm Bonded Aluminum PET

Shield 2

Aluminum braid wire 55% coverage

Jacket

0.268"±0.006"/6.81±0.15mm PVC

Jacket Thickness

0.030"/0.76mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be <  17.2 Ω/km

5.25Ω/1000ft

Capacitance

52 ±3 pF/m         15.9 ±0.9 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

0.268"±0.006"/6.81±0.15mm PVC

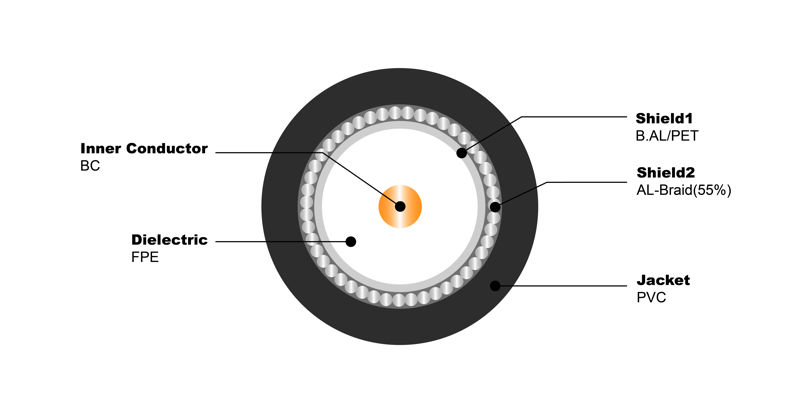

Cross Section

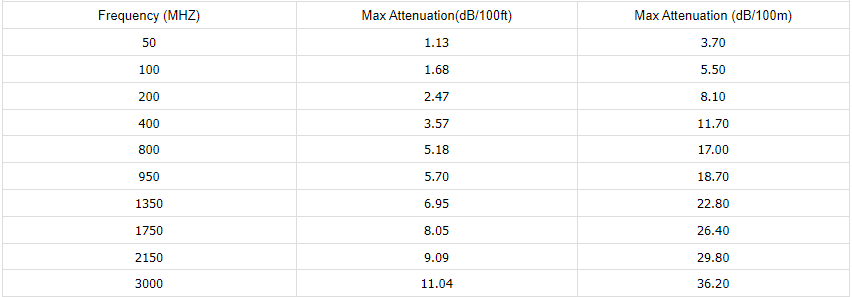

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

50

1.13

3.70

100

1.68

5.50

200

2.47

8.10

400

3.57

11.70

800

5.18

17.00

950

5.70

18.70

1350

6.95

22.80

1750

8.05

26.40

2150

9.09

29.80

3000

11.04

36.20

Order Informations:

Marking

HELLOSIGNAL 17 VATC BC

CATV COAXIAL CABLE 7100421 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
