670-086/25
hellosignal
XT0803
Specification
670-086/25 Semi Flexible Cable
| Construction Parameters: | ||
| Inner Conductor | 0.93mm Silver Plated Copper Clad Steel | |
| Dielectric | 1.65mm PTFE | |
| Outer Conductor | Nom.2.1mm Tin Soaked Copper Braid | |
| Electrical Characteristics: | ||
| Capacitance | 190.4 pF/m | |
| Impedance | 25 Ω | |
| Velocity of Propagation | 0.695 | |
| Operating Frequency (GHz) | 50 | |
| Time Delay(ns/m) | 4.7 | |
| Max. Operating Voltage (kVrms) | 1.5 | |
| Mechanical and Environmental: | ||
| Min. Bending Radius (mm) | 6 | |
| Min.Repeated Bending Radius (mm) | 20 | |
| Operating Temp.(℃) | -55 to +125 ℃ | |

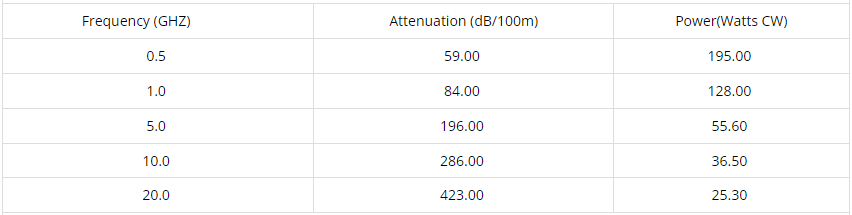

| Attenuation(20℃): | ||
| Frequency (GHZ) | Attenuation (dB/100m) | Power(Watts CW) |
| 0.5 | 59.00 | 195.00 |
| 1.0 | 84.00 | 128.00 |
| 5.0 | 196.00 | 55.60 |
| 10.0 | 286.00 | 36.50 |
| 20.0 | 423.00 | 25.30 |
| Order Informations: | ||
| Marking | HELLOSIGNAL 670-086/25 XXX M (or Per customer's request) | |
| Inner Package | 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request) | |
| Outer Package | Carton, Color Box, Pallet (or Per customer's request) | |
| Delivery time | Normally 15 days after received the deposit. | |
| More informations | please contact with us. | |
| Brand | HELLOSIGNAL® OR OEM | |
