8D-FB
hellosignal
XT0323
Specification

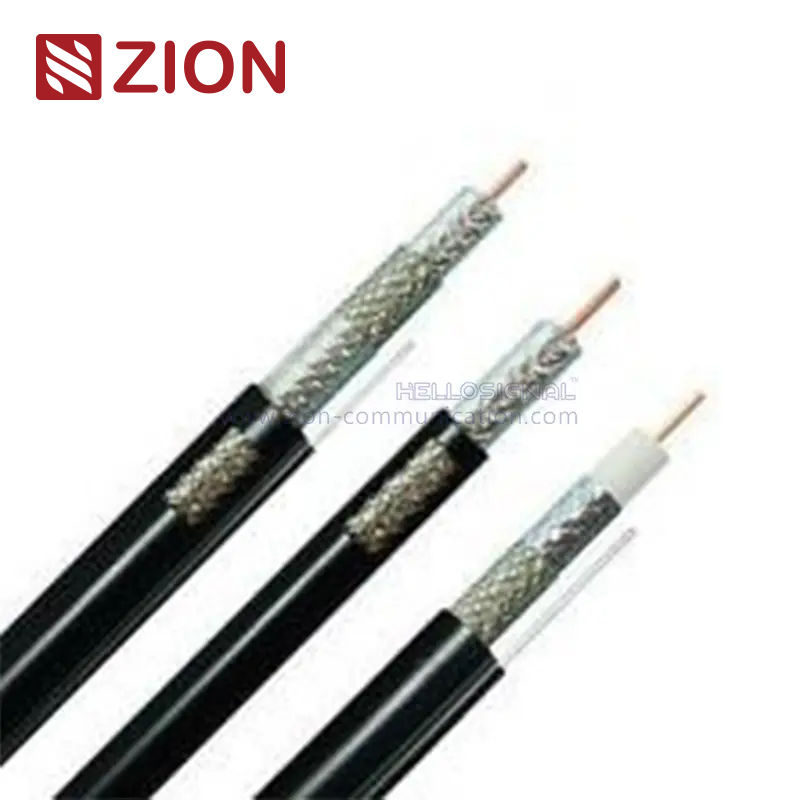

8D-FB Coaxial Cable
| Construction Parameters: | ||
| Inner Conductor | 2.80mm Bare Copper/Copper Clad Aluminum | |
| Dielectric | 7.80mm Foamed PE | |
| First Shield | Nom. 8.00mm BONDED AL FOIL | |
| Second Shield | Nom.8.60mm Tinned Copper/Tinned Copper Clad Aluminum Braid | |
| Jacket | 10.30mm PVC (Color by your choise)/PE | |
| Electrical Characteristics: | ||
| Capacitance | 82 pF/m | |
| Impedance | 50 Ω | |
| Conductor DCR | 3.9 Ohm/km | |
| Velocity of Propagation | 0.82 | |
| Max Operating Voltage | 50 Ω | |
| Operating Temp Range | -40 ℃ to 80℃ | |
| RoHS | YES | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation (dB/100m) | |
| 150 | 5.2 | |
| 280 | 7.3 | |
| 350 | 8.2 | |
| 400 | 8.6 | |
| 800 | 12.3 | |
| 900 | 13.0 | |
| 1200 | 16.5 | |
| 1500 | 18.7 | |
| 1900 | 21.7 | |
| 2000 | 22.5 | |
| 2500 | 25.5 | |
| Order Informations: | ||
| Marking | HELLOSIGNAL 8D-FB COAXIAL CABLE XXX M (or Per customer's request) | |
| Inner Package | 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request) | |
| Outer Package | Carton, Color Box, Pallet (or Per customer's request) | |
| Delivery time | Normally 15 days after received the deposit. | |
| More informations | please contact with us. | |
| Brand | HELLOSIGNAL® OR OEM | |
