ADSS-D-inner water blocking tape
N/M
N/M
All Dielectric self-supporting
inner water blocking tape
ISO9001
2km/Spool
Wooden Spool ，Φ1200*750mm
100km
5-25 Days
NINGBO CHINA
30%TT as deposit,70%Balance before shipping.
Product Description
Technical data:
Numbers of fibers: 4-72F;74-96F;98-144F
Fiber type: Single mode G.652.D/ Monomode
Strength Member: Aramid Yard
Loose Tube: 2.1mm-3.0mmPBT
Filler Rope: FRP
Water Blocking Layer（Material）: Waterproof GEL-filled/Water Blocking tape
Additional Strength Member（Material）：Aramid yarn
Outer Sheath: PE/AT jacket
Cable Diameter(±0.2mm): 11.5mm-18mm
Cable Weight(±10.0kg/km): 125-250kg
Attenuation coefficient : @ 1310nm≤0.35dB ; @ 1550nm ≤0.2dB
Min. bending radius Without Tension: 10.0×Cable-φ
Min. bending radius Under Maximum Tension: 20.0×Cable-φ
Description:

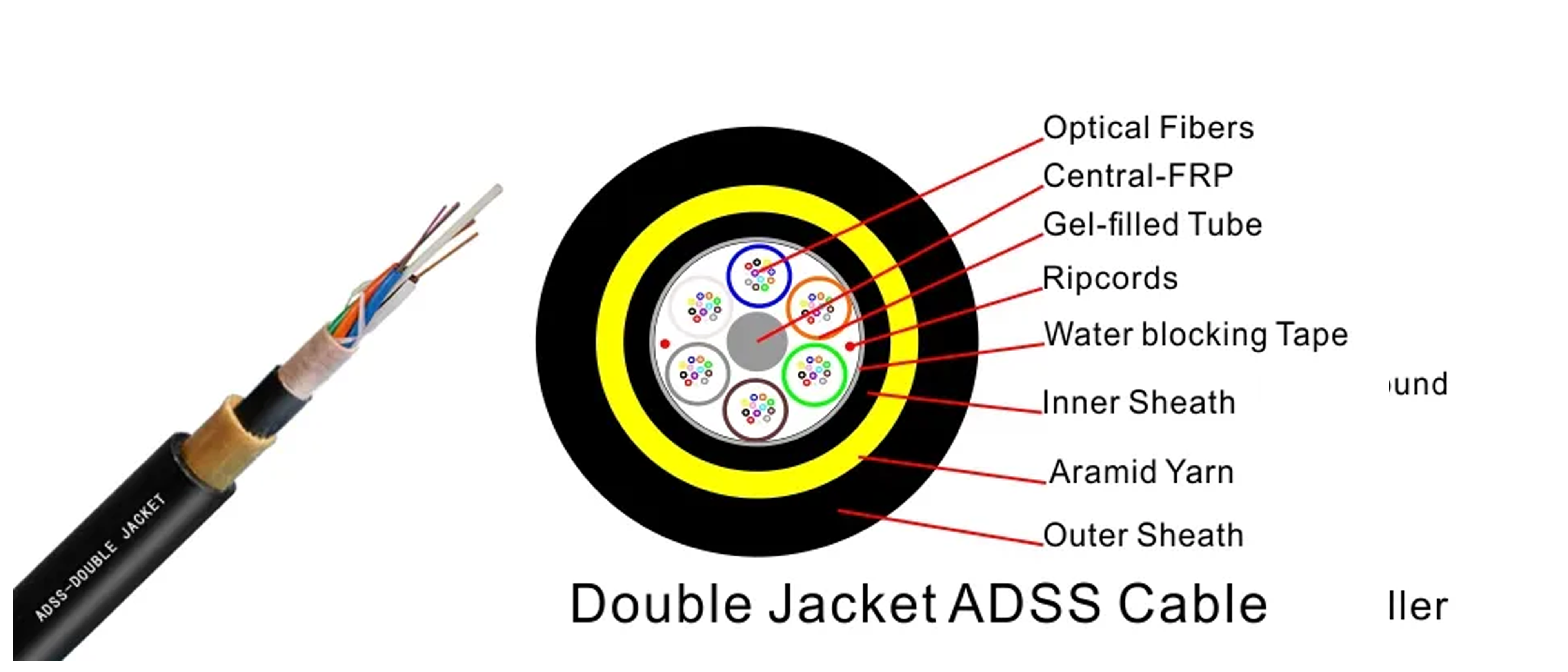

ADSS cable is loose tube stranded. Fiber, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes(and fillers) are stranded around a FRP(Fiber Reinforced Plastic ) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE(polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT(anti-tracking) outer sheath.
ADSS CABLE PLACE ORDER INFORMATION:
| Order Information: | ||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
| Fiber Type | Jacket Type | Out Cable Dia. | Fiber Count | Aramid Yarn Details Important | Span | Length/spool | RTS Important | |
| G.652.D | PE | 10mm-12mm | 4-12 | Numbers | Types | 100m | 4km | 10 |
| OS2 9/125 | AT | 12-14mm | 24-60 | 20 | K49-2840D | 150m | 3km | 20 |
| OM1 62.5/125 | PE/Flame retardant | 14-16mm | 60-72 | 34 | K29-3000D | 150-250m | 2km | 30 |
| OM2 50/125 | AT/Flame retardant | 17-18mm | 96-144 | 8050D | 250-750m | 1km | 40-100 | |
Fibre Colors
No. | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
No. | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
Jacket Colors
No. | 1 | 2 | 3 | 4 | 5 | 6 |
Color | White | |||||
No. | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Black |
Single mode optical fiber (ITU-T Rec. G.652.D)
Item | Specification |
Fiber type | Single mode |
Fiber material | Doped silica |
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
£ 0.35 dB/km £ 0.32 dB/km £ 0.21 dB/km £ 0.24 dB/km |
Point discontinuity | £ 0.05 dB |
Cable cut-off wavelength | £ 1260 nm |
Zero-dispersion wavelength | 1300 ~ 1324 nm |
Zero-dispersion slope | £ 0.092 ps/(nm2.km) |
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm | £3.5 ps/(nm. km) £5.3 ps/(nm. km) £18 ps/(nm. km) £22 ps/(nm. km) |
PMDQ (Quadrature average*) | £0.2 ps/km1/2 |
Mode field diameter @ 1310 nm | 9.2±0.4 um |
Core / Clad concentricity error | £ 0.5 um |
Cladding diameter | 125.0 ± 0.7 um |
Cladding non-circularity | £1.0% |
Primary coating diameter | 245 ± 10 um |
Proof test level | 100 kpsi (=0.69 Gpa), 1% |
Temperature dependence 0oC~ +70oC @ 1310 & 1550nm | £ 0.1 dB/km |
