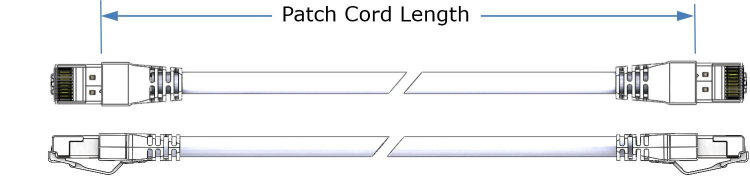

CAT.7A S/FTP RJ45 Patch Cord

Application:

Category 7A cabling systems is playing a major role in data centers and
mission-critical environments upgrading to 10GBASE-T.

ZION Communication CAT7A S/FTP Patch Cords conforms to ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE and CENELEC EN50173 for Category 7. The patch cords are 100% (FLUKE DSX 8000) tested per Cat.7A Channel up to 1000 MHz. Designed for high speed protocols such as IEEE 802.3:10Base-T, 100Base-T, 1000Base-T, 10GBase-T,  HDBase-T A & B and ATM, CATV,computer,hubs,switches,
routers,DSL/cable modems and patch panel in Gigabit datacenter.

Specification:

Ethernet Patch Cable

Conductor:

Stranded bare copper

Pairs:

4 Pairs

Insulation:

Skin-Foam-Skin PE

Insulation Color
Per
TIA/EIA 568-B

Orange, White/White-Orange

Blue, White/White-Blue

Green, White/White-Green

Brown, White/White-Brown

Individual Shield :

Pair in Al/PET Foil,
Aluminum face outwards,
100% coverage

Overall Shield:

TC or Al_Mg Braiding,
Coverage: ＞30%

Out Jacket:

LSZH OR PVC

Frequency Range

1 - 1000 Mhz

Impedance

100Ω

Max.Resistance
Unbalance

2%

Current Rating

1.5A

Voltage

30 VAC / 56 VDC

Operating Temp.

Min. -40 °C, Max. +65 °C

Connector

Description

Material

Type

Plug

Polycarbonate

RJ45

Boot

LSZH OR PVC

Snagless

Front Connection

Phosphor Bronze with 50u inch Gold over Nickel Plating

Blades

Shielding

Copper Alloy, Nickel plated

Durability

750 Mating Cycles min.

Characteristics:

VERSION

CLASS

MAX. OPERATING FREQUENCY

SHIELDING TYPE

PLUG CONNECTOR

USED FOR

NOTE

NORMAL

Cat 7A

G (I)

1000MHz

S/FTP

RJ45

10GBase-T
(Lengths of 20m)

Faster server interconnection.
Connections in data centres.

ISO/IEC TR
11801-99-1

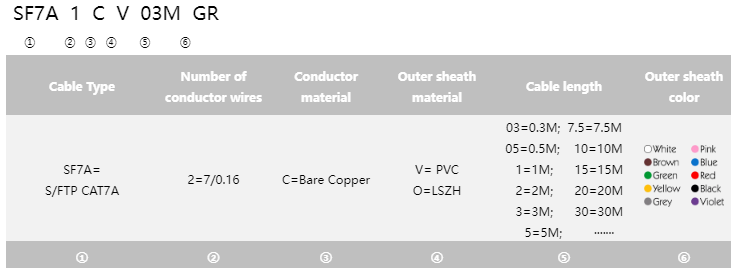

Product Code:

SF7A  1  C  V  03M  GR
  ①         ②    ③   ④       ⑤         ⑥

Cable Type

Number of
conductor wires

Conductor
material

Outer sheath
material

Cable length

Outer sheath color

SF7A=
S/FTP CAT7A

2=7/0.16

C=Bare Copper

V= PVC
O=LSZH

03=0.3M;  7.5=7.5M
05=0.5M;    10=10M
   1=1M;      15=15M
   2=2M;      20=20M
   3=3M;      30=30M
   5=5M;         ·······

①

②

③

④

⑤

⑥

Ordering Information

CAT 7A S/FTP 26AWG Copper Conductor RJ45 Patch Cord

Conductor: 7/0.16mm Copper;  Cable OD:6.2±0.2mm; Max Length: up to 20meter.

Zion Code

Description

SF7A2CO05MGR

CAT 7A S/FTP 26AWG Copper RJ45 Patch Cord,LSZH,Gray, 0.5m

SF7A2CO1MGR

CAT 7A S/FTP 26AWG Copper RJ45 Patch Cord,LSZH,Gray, 1m

SF7A2CO2MGR

CAT 7A S/FTP 26AWG Copper RJ45 Patch Cord,LSZH,Gray, 2m

SF7A2CO3MGR

CAT 7A S/FTP 26AWG Copper RJ45 Patch Cord,LSZH,Gray, 3m

SF7A2CO5MGR

CAT 7A S/FTP 26AWG Copper RJ45 Patch Cord,LSZH,Gray, 5m

SF7A2CO7AMGR

CAT 7A S/FTP 26AWG Copper RJ45 Patch Cord,LSZH,Gray, 7Am

SF7A2CO10MGR

CAT 7A S/FTP 26AWG Copper RJ45 Patch Cord,LSZH,Gray, 10m

SF7A2CO15MGR

CAT 7A S/FTP 26AWG Copper RJ45 Patch Cord,LSZH,Gray, 15m

SF7A2CO20MGR

CAT 7A S/FTP 26AWG Copper RJ45 Patch Cord,LSZH,Gray, 20m
