CT167 CPE PVC 75 Ohm CATV coaxial Cable

Construction Parameters:

Inner Conductor

0.065"/1.67mm/14AWG BC

Dielectric

7.28mm 5 cell air spaced PE

Shield 1

overlapped copper foil

Shield 2

16*6*0.12mm bare copper

braid wire 55% coverage

Jacket

10.1±0.20mm PVC

Jacket Thickness

0.030"/0.76mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be <  7.86 Ω/km

Capacitance

52 ±3 pF/m         15.9 ±0.9 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

7.8±0.20mm PVC

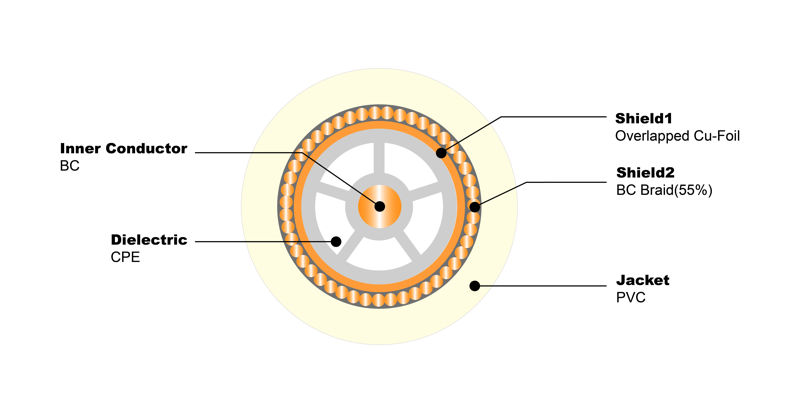

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.80

10

1.20

50

3.20

100

5.40

200

6.50

300

8.50

470

11.00

600

13.50

1000

16.40

Order Informations:

Marking

HELLOSIGNAL CT167 CPE PVC

CATV COAXIAL CABLE 7100447×××M/FT

Package

Inquired Length on Reel,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
