CU/XLPE/PVC/SWA/PVC 0.6/1KV Cable(1.5mm²-16mm²)

CU/XLPE/PVC/SWA/PVC 0.6/1KV Cable(1.5mm²-16mm²)

Application:

Cable Standards:

Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.

Flame propagation to BS EN 60332-1-2

BS5467

IEC/EN 60502-1

IEC/EN 60228

Product Description:

Conductor

Class 2 stranded copper conductor acc BS EN 60228 (previously BS 6360)

Insulation

Cross linked Polyethylene (XLPE)

Bedding

Polyvinyl Chloride (PVC)

Armour

Steel Wire Armour (SWA)

Sheath

Polyvinyl Chloride PVC

Characteristics:

Voltage Rating

600/1000 Volts

Temperature Limits

-15°C to +90°C

Core Identification:

2 Core

Brown

Blue

3 Core

Brown

Black

Grey

4 Core

Brown

Black

Black

Grey

5 Core

Brown

Black

Black

Grey

G/Y

7 Core and above

White cores with black numbers

Should not be installed at temperatures below 0°C  or above +60°C

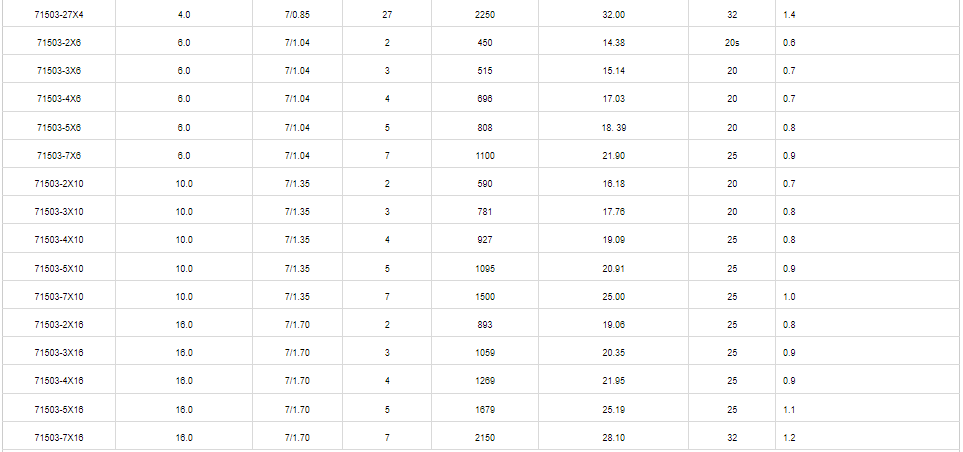

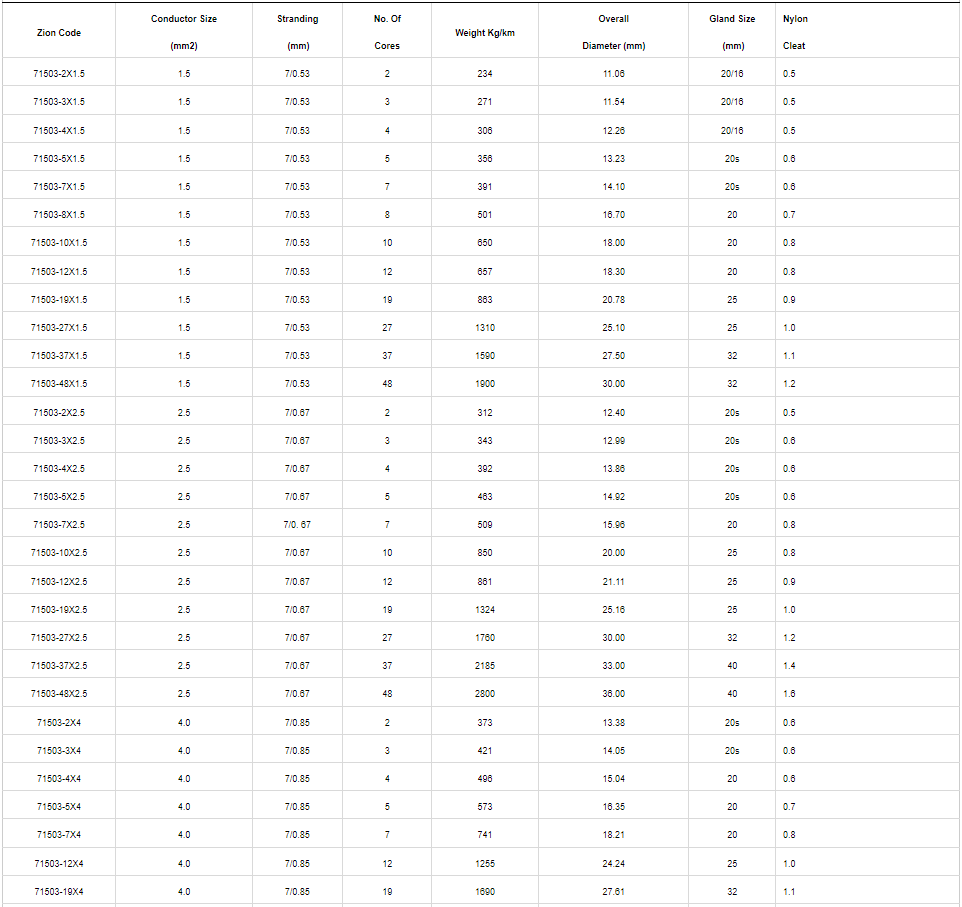

Dimensions(1.5mm²-16mm²):

Zion Code

Conductor Size
(mm2)

Stranding
 (mm)

No. Of
Cores

Weight Kg/km

Overall
Diameter (mm)

Gland Size
 (mm)

Nylon
Cleat

71503-2X1.5

1.5

7/0.53

2

234

11.06

20/16

0.5

71503-3X1.5

1.5

7/0.53

3

271

11.54

20/16

0.5

71503-4X1.5

1.5

7/0.53

4

306

12.26

20/16

0.5

71503-5X1.5

1.5

7/0.53

5

356

13.23

20s

0.6

71503-7X1.5

1.5

7/0.53

7

391

14.10

20s

0.6

71503-8X1.5

1.5

7/0.53

8

501

16.70

20

0.7

71503-10X1.5

1.5

7/0.53

10

650

18.00

20

0.8

71503-12X1.5

1.5

7/0.53

12

657

18.30

20

0.8

71503-19X1.5

1.5

7/0.53

19

863

20.78

25

0.9

71503-27X1.5

1.5

7/0.53

27

1310

25.10

25

1.0

71503-37X1.5

1.5

7/0.53

37

1590

27.50

32

1.1

71503-48X1.5

1.5

7/0.53

48

1900

30.00

32

1.2

71503-2X2.5

2.5

7/0.67

2

312

12.40

20s

0.5

71503-3X2.5

2.5

7/0.67

3

343

12.99

20s

0.6

71503-4X2.5

2.5

7/0.67

4

392

13.86

20s

0.6

71503-5X2.5

2.5

7/0.67

5

463

14.92

20s

0.6

71503-7X2.5

2.5

7/0. 67

7

509

15.96

20

0.8

71503-10X2.5

2.5

7/0.67

10

850

20.00

25

0.8

71503-12X2.5

2.5

7/0.67

12

861

21.11

25

0.9

71503-19X2.5

2.5

7/0.67

19

1324

25.16

25

1.0

71503-27X2.5

2.5

7/0.67

27

1760

30.00

32

1.2

71503-37X2.5

2.5

7/0.67

37

2185

33.00

40

1.4

71503-48X2.5

2.5

7/0.67

48

2800

36.00

40

1.6

71503-2X4

4.0

7/0.85

2

373

13.38

20s

0.6

71503-3X4

4.0

7/0.85

3

421

14.05

20s

0.6

71503-4X4

4.0

7/0.85

4

496

15.04

20

0.6

71503-5X4

4.0

7/0.85

5

573

16.35

20

0.7

71503-7X4

4.0

7/0.85

7

741

18.21

20

0.8

71503-12X4

4.0

7/0.85

12

1255

24.24

25

1.0

71503-19X4

4.0

7/0.85

19

1690

27.61

32

1.1

71503-27X4

4.0

7/0.85

27

2250

32.00

32

1.4

71503-2X6

6.0

7/1.04

2

450

14.38

20s

0.6

71503-3X6

6.0

7/1.04

3

515

15.14

20

0.7

71503-4X6

6.0

7/1.04

4

696

17.03

20

0.7

71503-5X6

6.0

7/1.04

5

808

18. 39

20

0.8

71503-7X6

6.0

7/1.04

7

1100

21.90

25

0.9

71503-2X10

10.0

7/1.35

2

590

16.18

20

0.7

71503-3X10

10.0

7/1.35

3

781

17.76

20

0.8

71503-4X10

10.0

7/1.35

4

927

19.09

25

0.8

71503-5X10

10.0

7/1.35

5

1095

20.91

25

0.9

71503-7X10

10.0

7/1.35

7

1500

25.00

25

1.0

71503-2X16

16.0

7/1.70

2

893

19.06

25

0.8

71503-3X16

16.0

7/1.70

3

1059

20.35

25

0.9

71503-4X16

16.0

7/1.70

4

1269

21.95

25

0.9

71503-5X16

16.0

7/1.70

5

1679

25.19

25

1.1

71503-7X16

16.0

7/1.70

7

2150

28.10

32

1.2

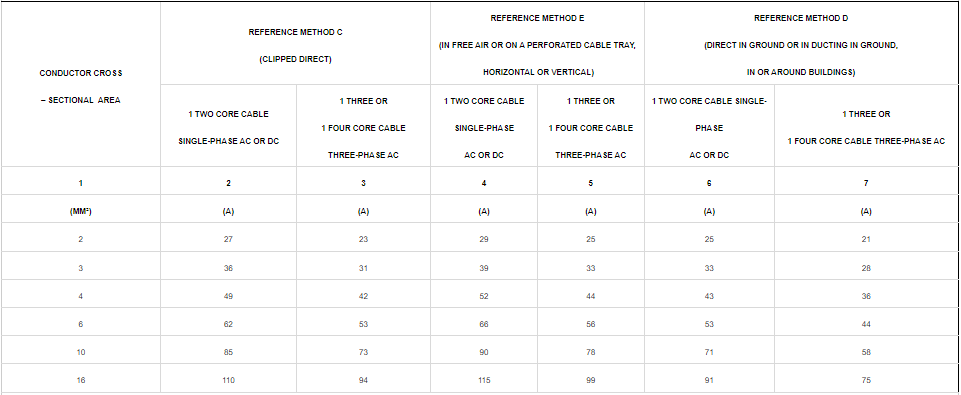

Current Carrying (amperes)

CONDUCTOR CROSS
– SECTIONAL  AREA

REFERENCE METHOD C
(CLIPPED DIRECT)

REFERENCE METHOD E
(IN FREE AIR OR ON A PERFORATED CABLE TRAY,  HORIZONTAL OR VERTICAL)

REFERENCE METHOD D
(DIRECT IN GROUND OR IN DUCTING IN GROUND,
IN OR AROUND BUILDINGS)

1 TWO CORE CABLE
SINGLE-PHASE AC OR DC

1 THREE OR
1 FOUR CORE CABLE
THREE-PHASE AC

1 TWO CORE CABLE SINGLE-PHASE
AC OR DC

1 THREE OR
1 FOUR CORE CABLE THREE-PHASE AC

1 TWO CORE CABLE SINGLE-PHASE
AC OR DC

1 THREE OR
1 FOUR CORE CABLE THREE-PHASE AC

1

2

3

4

5

6

7

(MM²)

(A)

(A)

(A)

(A)

(A)

(A)

2

27

23

29

25

25

21

3

36

31

39

33

33

28

4

49

42

52

44

43

36

6

62

53

66

56

53

44

10

85

73

90

78

71

58

16

110

94

115

99

91

75

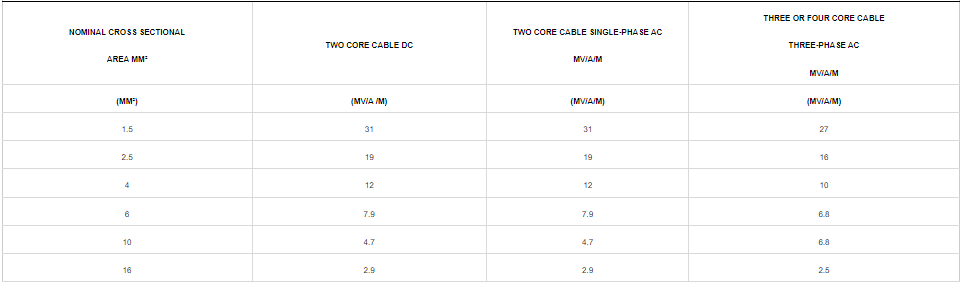

Voltage Drop

NOMINAL CROSS SECTIONAL
AREA MM²

TWO CORE CABLE DC

TWO CORE CABLE SINGLE-PHASE AC
MV/A/M

THREE OR FOUR CORE CABLE
THREE-PHASE AC
MV/A/M

(MM²)

(MV/A /M)

(MV/A/M)

(MV/A/M)

1.5

31

31

27

2.5

19

19

16

4

12

12

10

6

7.9

7.9

6.8

10

4.7

4.7

6.8

16

2.9

2.9

2.5
