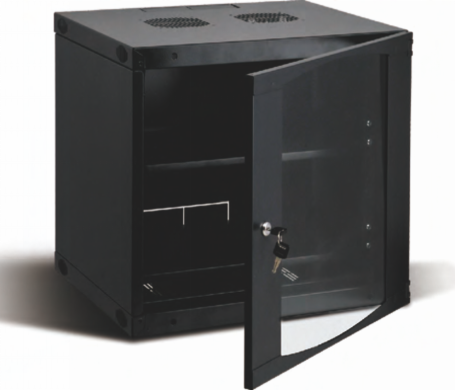

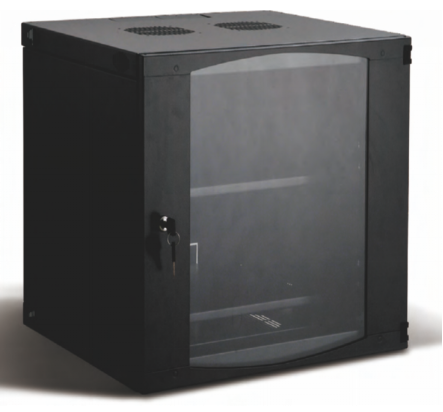

EW Wall Mount Rack Cabinet

 · SPCC Cold Rolled Steel;

 · Thickness: Mounting profile: 2.0mm;

 · others: 1.0mm.

 Colour:

  · ZCEW.■■■■0■■: RAL7035

  · ZCEW.■■■■1■■: RAL7021

Loading Capacity:

  · Static loading: 30KG.

 Finish:

  · Pretreated steel coated with textured, polyester powder paint

 COMPLIANCE （Reference Standard）

 · Comply with ANSI/EIA RS-310-D

 · IEC60297-2

 · DIN41494;PART1; DIN41494;PART7.

 Feature

· Knocked down and smaller packaging, easy to transport

  and carry.

· Cable entry on both of top cover and bottom panel.

· Front and rear frame of the specially-made structure, better

  stability.

· Using 13 screw set to assembly the whole cabinet, it

  spends only 10mins by one person to operate.

· It has a pilot pin to help close the front door to avoid

  mismatch and the front door can be changed to another

  way to open.

· The cable can be entered from the top, bottom,

back of the cabinet, suitable to every situation.

The incoming cable hole patented, it can be adjusted

and has the round edge to avoid the cutting to the cable.

· Side panel can be opened in a rotated way or disassembling,

having space enough to wiring, the the side panel can be locked

safely from inside without the locker and key.

· Maximum bearing capacity: 30KG.

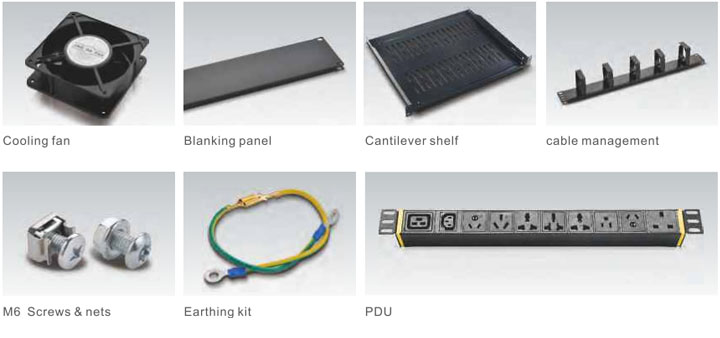

 May Installs The Fitting

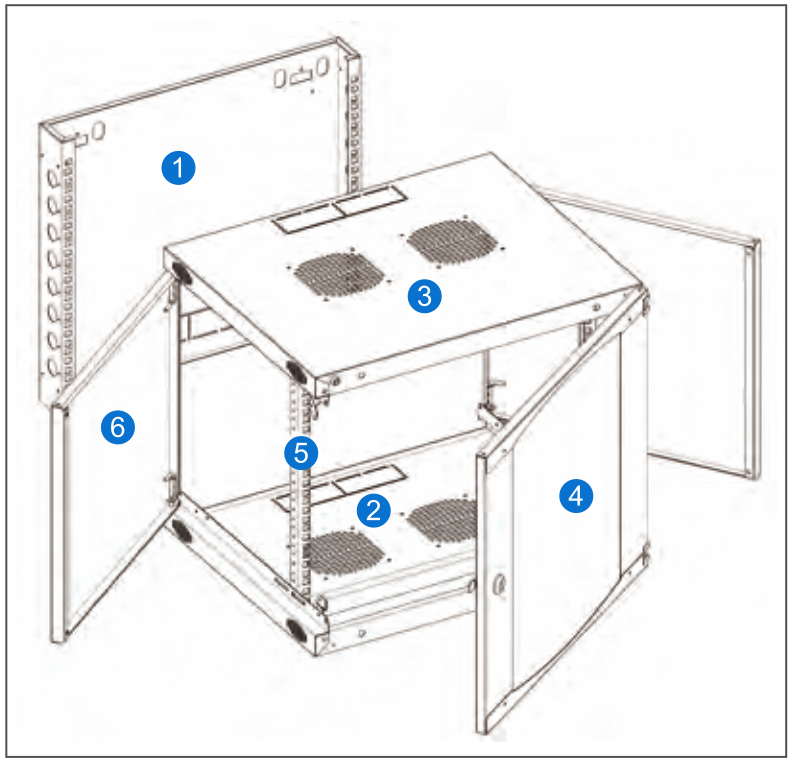

Definition Of Cord

Main Part

S/N

Specification

Qty

Material

Surface Finish

Remark

1

Back frame

1

SPCC t1.0

Powder coated

·····

2

Bottom

1

SPCC t1.0

Powder coated

·····

3

Top cover

1

SPCC t1.0

Powder coated

·····

4

Front door

1

4MM toughed glass
 door/SPCC t1.0

Powder coated

Small lock

5

19"rails frame

1

SPCC t2.0

Powder coated

·····

6

Side panel

2

SPCC t1.0

Powder coated

·····

Order Information:

Part Number.

RU

 Width
(mm)

Depth(D)
(mm)

Height(H)(mm)

Disassembled packing
dimension(MM)

Assembled packing
dimension(MM)

ZCEW.5406.EWSC

6

540

450

327

570*215*485

550*460*340

ZCEW.5606.EWSC

600

570*165*635

550*610*340

ZCEW.5409.EWSC

9

540

450

460

500*215*590

550*460*470

ZCEW.5609.EWSC

600

590*205*615

550*610*470

ZCEW.5412.EWSC

12

540

450

593

570*205*655

550*460*605

ZCEW.5612.EWSC

600

590*205*635

550*610*605

ZCEW.5415.EWSC

15

540

450

725

570*205*790

550*460*740

ZCEW.5615.EWSC

600

630*205*745

550*610*740
