FIRE RESISTANT CABLE PH 120 Mica Tape
| Application: | |||||||
| These cables are used for installation in fire systems for connecting fire alarms etc. The cable can be installed in dry and moist areasas well for fixed open air installation. This cable type with electrostatic screening (St) protects the transmission circuits against externelectrical interferences. These cables meet the local wiring code according with SANS 10139. | |||||||
| Standards: | |||||||
| All these cables comply to: SANS 1411-1 IEC 60092-359(SHF1) Low emission of smoke and corrosive gases BS EN 50200 PH120 | |||||||
| Electrical Data (at20°C) | |||||||
| Minimum Bend Radius | Min.Insulation resistance | Max.Working Temperature | Test voltage (rms value) | Max. Operating voltage peak value | |||
| MΩ/km | ℃ | V | V | ||||
| 8×Diameter | 300 | -40℃～+90℃ | 1000 | 300/500 | |||

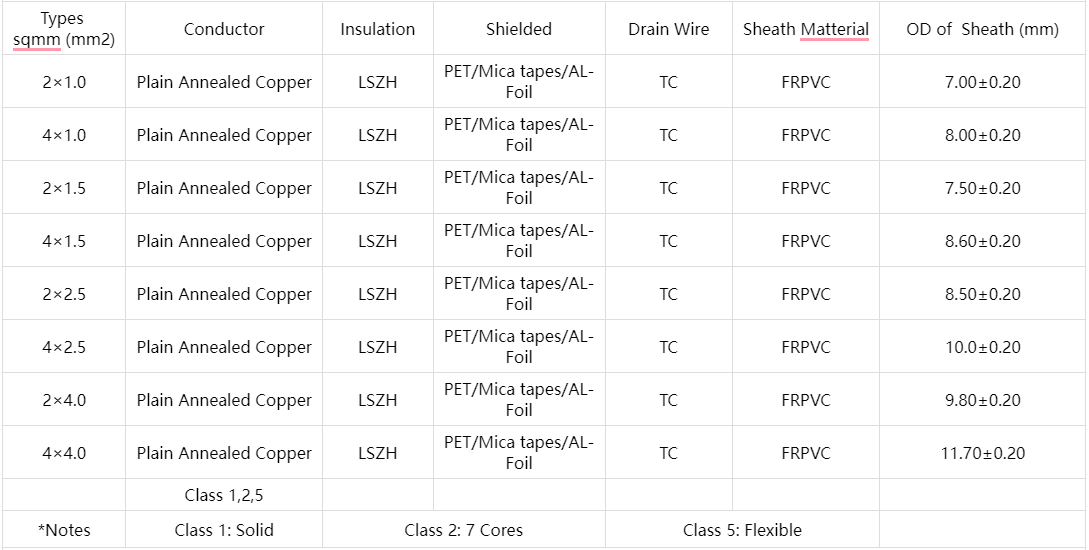

| Types and Mechanical Data | |||||||
| Types sqmm (mm2) | Conductor | Insulation | Shielded | Drain Wire | Sheath Matterial | OD of Sheath (mm) | |
| 2×1.0 | Plain Annealed Copper | LSZH | PET/Mica tapes/AL-Foil | TC | FRPVC | 7.00±0.20 | |
| 4×1.0 | Plain Annealed Copper | LSZH | PET/Mica tapes/AL-Foil | TC | FRPVC | 8.00±0.20 | |
| 2×1.5 | Plain Annealed Copper | LSZH | PET/Mica tapes/AL-Foil | TC | FRPVC | 7.50±0.20 | |
| 4×1.5 | Plain Annealed Copper | LSZH | PET/Mica tapes/AL-Foil | TC | FRPVC | 8.60±0.20 | |
| 2×2.5 | Plain Annealed Copper | LSZH | PET/Mica tapes/AL-Foil | TC | FRPVC | 8.50±0.20 | |
| 4×2.5 | Plain Annealed Copper | LSZH | PET/Mica tapes/AL-Foil | TC | FRPVC | 10.0±0.20 | |
| 2×4.0 | Plain Annealed Copper | LSZH | PET/Mica tapes/AL-Foil | TC | FRPVC | 9.80±0.20 | |
| 4×4.0 | Plain Annealed Copper | LSZH | PET/Mica tapes/AL-Foil | TC | FRPVC | 11.70±0.20 | |
| Class 1,2,5 | |||||||
| *Notes | Class 1: Solid | Class 2: 7 Cores | Class 5: Flexible | ||||

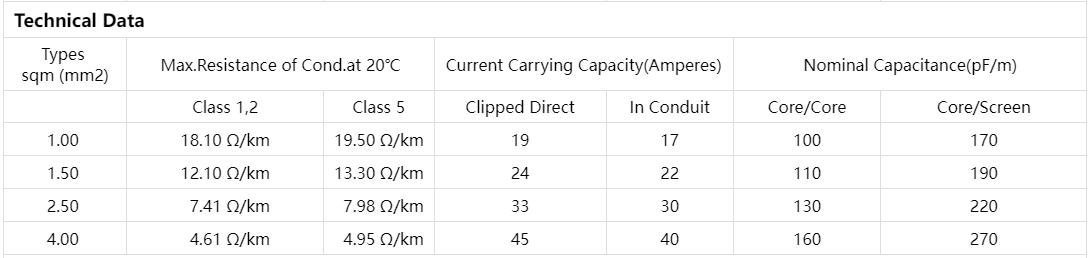

| Technical Data | |||||||
| Types sqmm (mm2) | Max.Resistance of Cond.at 20℃ | Current Carrying Capacity(Amperes) | Nominal Capacitance(pF/m) | ||||
| Class 1,2 | Class 5 | Clipped Direct | In Conduit | Core/Core | Core/Screen | ||
| 1.00 | 18.10 Ω/km | 19.50 Ω/km | 19 | 17 | 100 | 170 | |
| 1.50 | 12.10 Ω/km | 13.30 Ω/km | 24 | 22 | 110 | 190 | |
| 2.50 | 7.41 Ω/km | 7.98 Ω/km | 33 | 30 | 130 | 220 | |
| 4.00 | 4.61 Ω/km | 4.95 Ω/km | 45 | 40 | 160 | 270 | |
| Order Informations: | |||||||
| Marking | HELLOSIGNAL KT1414 FIRE RESISTANT CABLE PH 120 Mica Tape N×NNmm2 XXX M | ||||||
| Package | 100m/Roll,500m/Wooden Spool,Carton | ||||||
| Brand | HELLOSIGNAL® OR OEM | ||||||
