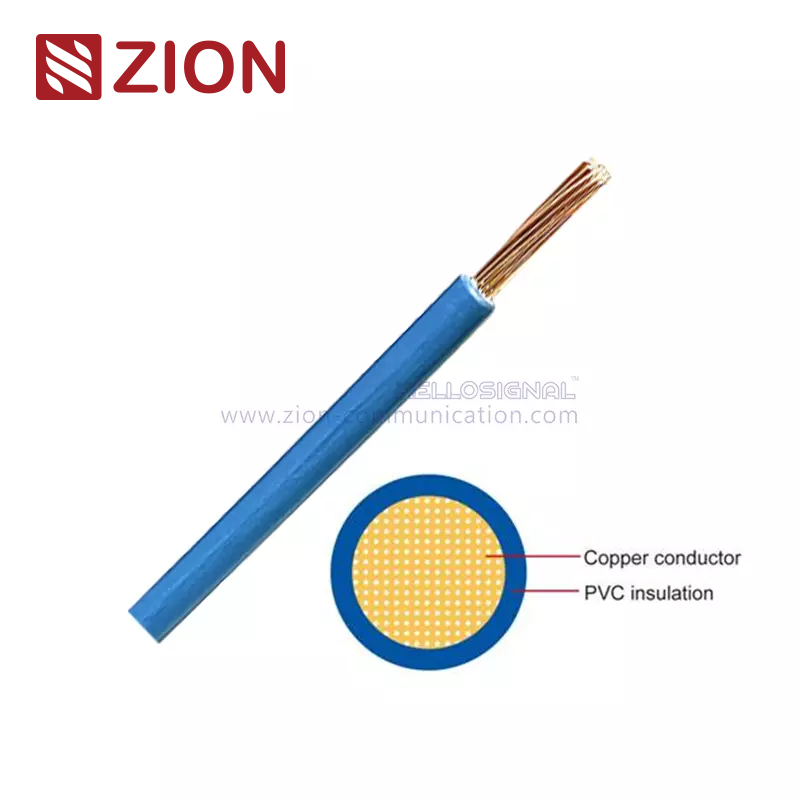

FLY Automotive Cable

FLY Automotive Cable

Product Description:

Conductor

Cu-ETP1 bare according to DIN EN 13602

Insulation

PVC

Standard Compliance

ISO 6722 Class B

Special properties

Conductors >6mm² are suitable for use as battery cables

Technical Parameters

Operating temperature:–40 °C to +105 °C

Application:

Automotive PVC insulated single-core unshielded low-tension wire is used for automobiles.

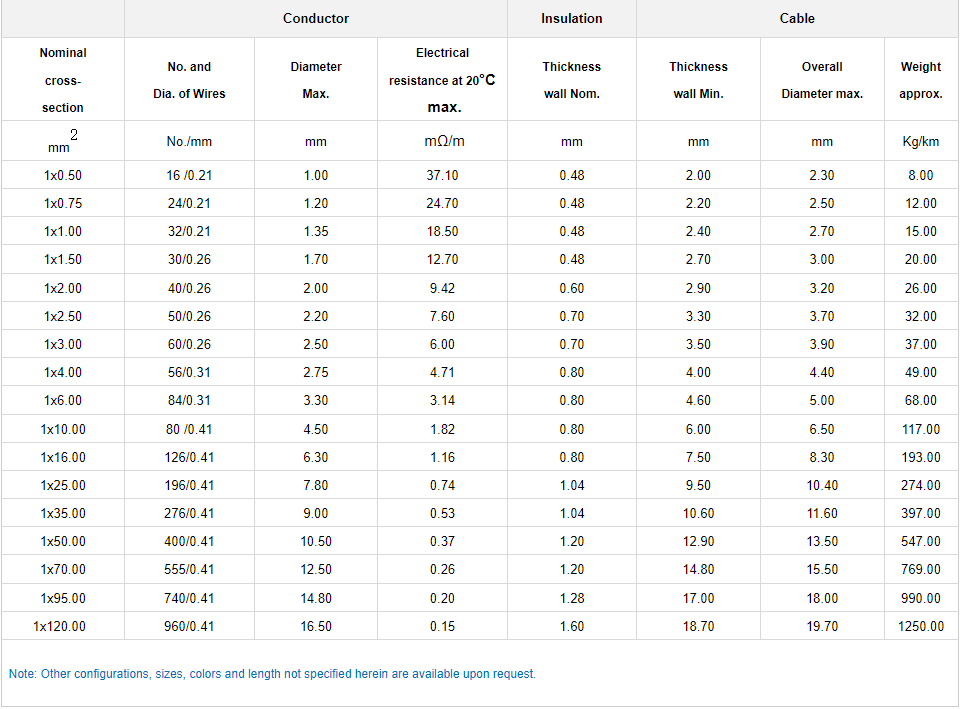

Zion's Hot Types of FLY Automotive cable

Conductor

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter
Max.

Electrical resistance at 20°C  max.

Thickness
wall Nom.

Thickness
wall Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x0.50

16 /0.21

1.00

37.10

0.48

2.00

2.30

8.00

1x0.75

24/0.21

1.20

24.70

0.48

2.20

2.50

12.00

1x1.00

32/0.21

1.35

18.50

0.48

2.40

2.70

15.00

1x1.50

30/0.26

1.70

12.70

0.48

2.70

3.00

20.00

1x2.00

40/0.26

2.00

9.42

0.60

2.90

3.20

26.00

1x2.50

50/0.26

2.20

7.60

0.70

3.30

3.70

32.00

1x3.00

60/0.26

2.50

6.00

0.70

3.50

3.90

37.00

1x4.00

56/0.31

2.75

4.71

0.80

4.00

4.40

49.00

1x6.00

84/0.31

3.30

3.14

0.80

4.60

5.00

68.00

1x10.00

80 /0.41

4.50

1.82

0.80

6.00

6.50

117.00

1x16.00

126/0.41

6.30

1.16

0.80

7.50

8.30

193.00

1x25.00

196/0.41

7.80

0.74

1.04

9.50

10.40

274.00

1x35.00

276/0.41

9.00

0.53

1.04

10.60

11.60

397.00

1x50.00

400/0.41

10.50

0.37

1.20

12.90

13.50

547.00

1x70.00

555/0.41

12.50

0.26

1.20

14.80

15.50

769.00

1x95.00

740/0.41

14.80

0.20

1.28

17.00

18.00

990.00

1x120.00

960/0.41

16.50

0.15

1.60

18.70

19.70

1250.00

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
