H05V-K/H07V-K Electrical lnstallation Cable

▉ Application

This cable is suitable for controling and connecting electrical equipments and used as control and connecting cables In mechanlcal equlpments.It apply to power distribution box or be used as electronic cable for transmission.It is used for wiring of fixed installation.

▉ Cable Construction

Conductors:  flexible stranded copper wire

Insulation:heat and fire resistant PVC

     Color:black,white,blue,red,green,yellow,yellow/green,etc

Product referance standard:EN50525

▉ Product Feature

    Good mechanical properties

    Fire resistance meets IEC60332-1

▉ Technical data

     Temperature Range

Static    : -15℃~＋70℃

     Rated Voltage

IEC/VDE  ＜ 1.5mm² ;300/500V

IEC/VDE   ≥ 1.5mm² ;450/750V

     Test Voltage

＜1.5mm² : 2000V/5min;

≥1.5mm² : 2500V/5min;

▉ Cross Section

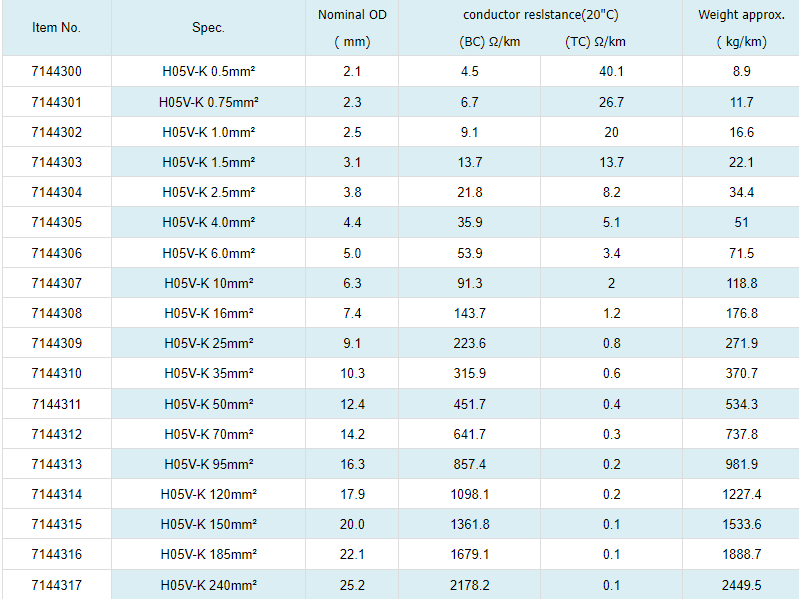

▉ Product List

Item No.

Spec.

Nominal OD
( mm)

conductor reslstance(20"C)
 (BC) Ω/km           (TC) Ω/km

Weight approx.
( kg/km)

7144300

H05V-K 0.5mm²

2.1

4.5

40.1

8.9

7144301

H05V-K 0.75mm²

2.3

6.7

26.7

11.7

7144302

H05V-K 1.0mm²

2.5

9.1

20

16.6

7144303

H05V-K 1.5mm²

3.1

13.7

13.7

22.1

7144304

H05V-K 2.5mm²

3.8

21.8

8.2

34.4

7144305

H05V-K 4.0mm²

4.4

35.9

5.1

51

7144306

H05V-K 6.0mm²

5.0

53.9

3.4

71.5

7144307

H05V-K 10mm²

6.3

91.3

2

118.8

7144308

H05V-K 16mm²

7.4

143.7

1.2

176.8

7144309

H05V-K 25mm²

9.1

223.6

0.8

271.9

7144310

H05V-K 35mm²

10.3

315.9

0.6

370.7

7144311

H05V-K 50mm²

12.4

451.7

0.4

534.3

7144312

H05V-K 70mm²

14.2

641.7

0.3

737.8

7144313

H05V-K 95mm²

16.3

857.4

0.2

981.9

7144314

H05V-K 120mm²

17.9

1098.1

0.2

1227.4

7144315

H05V-K 150mm²

20.0

1361.8

0.1

1533.6

7144316

H05V-K 185mm²

22.1

1679.1

0.1

1888.7

7144317

H05V-K 240mm²

25.2

2178.2

0.1

2449.5

▉ Order Informations

Marking

HELLOSIGNAL Electrical lnstallation Cable
H05V-K/H07V-K XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
