HD80 E PVC 75 Ohm CATV coaxial Cable

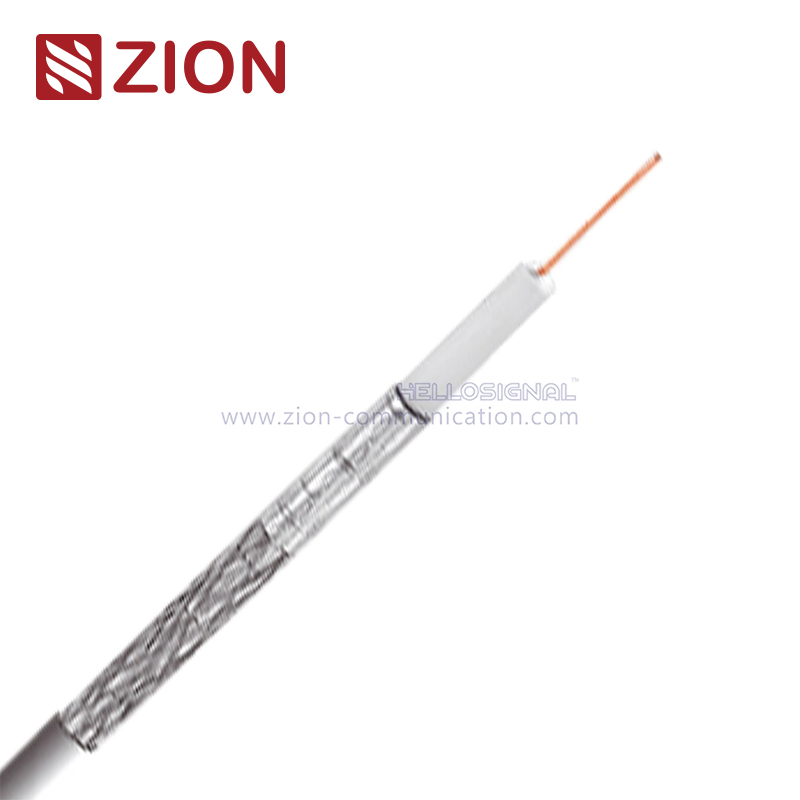

Construction Parameters:

Inner Conductor

0.80±0.20mm Copper

Dielectric

3.50±0.10mmmm Foamed PE

Shield 1

Aluminum PET Aluminum

Shield 2

Aluminum braid wire 65% coverage

Jacket

5.00±0.10mm PVC

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

35 Ω/km

Capacitance

52 ±3 pF/m

Impedance

75 ± 3 Ω

Return loss

between 5 and 3000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

2.50 KV

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

5.0±0.15mm PVC

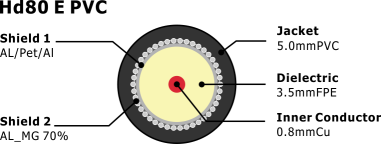

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

2

1.30

3

1.60

4

1.90

5

2.10

200

11.00

862

23.00

Order Informations:

Marking

HELLOSIGNAL HD80 E PVC

CATV COAXIAL CABLE 7100531 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
