HELLOSIGNAL Z-FLEX-SB20276 PVC flexible singal control cable for drag chain with screen (Twisted pair)

  • Z-FLEX-SB20276 PVC flexible singal control cable for drag chain with screen (Twisted pair)

  • hellosignal

  • 7145100

Availability:

Product Description

Z-FLEX-SB20276 PVC flexible singal

control cable for drag chain with screen

(Twisted pair)


Application

This cable apply to drag chain and general line control of
low voltage control system.It has ideal outside diameter
and apply to smaller bending radius for drag chain.
It apply to line control system with less interference.

Cable Construction

Conductor:high bending strength ultra-fine stranded copper conductor

Insulation: PVC mixture insulation

Shield:high strength tinned copper braid

Jacket:flexible oil and heat resistant PVC jacket










Product Feature

This product meets the requirements of UL758 style 20276

Oil,abrasion and bending resistance










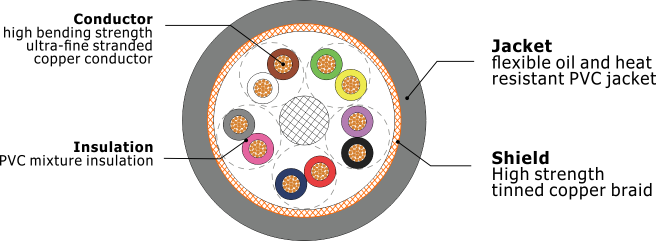

Cross Section

 Z-FLEX-SB20276 PVC flexible singal control cable for drag chain with screen (Twisted pair)

Technical data

Temperature range

Bend:  -5 to 80

Static: -40 to 80

Rated voltage

UL/CSA    30V

IEC/VDE   100V以下

Insulation resistance

20≥10M ohm/km

Min bending radius

6D(D=cable diameter)


Product List

Item No.

Spec.(core*Nominal cross-section)
mm²

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)


7145100

2*2*26AWG

5.1

15.2

36



7145101

2*3*26AWG

5.6

19.7

42



7145102

2*4*26AWG

6

24

50



7145103

2*10*26AWG

7.9

47.6

92



7145104

2*20*26AWG

10.5

89

160



7145105

2*30*26AWG

11.7

108.1

202



7145106

2*2*24AWG

5.6

19

45



7145107

2*3*24AWG

6.3

25.3

56



7145108

2*4*24AWG

6.7

30.5

62



7145109

2*10*24AWG

9

61.9

120



7145110

2*20*24AWG

12

116

209



7145111

2*30*24AWG

13.7

148.1

271



7145112

2*2*22AWG

6.1

25.2

57



7145113

2*3*22AWG

6.8

33.8

68



7145114

2*4*22AWG

7.4

42.1

82



7145115

2*10*22AWG

10

91.8

161



7145116

2*20*22AWG

13.5

173.4

284



7145117

2*30*22AWG

212.5

0

382



7145118

2*2*20AWG

6.7

35.5

73



7145119

2*3*20AWG

7.6

48.9

91



7145120

2*4*20AWG

8.2

61.3

108



7145121

2*10*20AWG

11.3

138.3

220



7145122

2*20*20AWG

16.3

264.6

423



7145123

2*30*20AWG

18.3

325.2

524



Order Informations

Marking

HELLOSIGNAL Z-FLEX-SB20276 PVC flexible singal control cable
for drag chain with screen (Twisted pair) XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
