HELLOSIGNAL Z-SERVO PUR flexible screened cable for servo motor

  • Z-SERVO PUR flexible,screened cable for servo motor

  • hellosignal

  • 7146000

Availability:

Product Description

Z-SERVO  PUR flexible,screened cable

for servo motor

Application

This cable apply to power supply of servo motor.This cable
has ideal outside diameter and apply to small bending radius
for drag chain.Resistant to hydrolysis and microbial attack.

Cable Construction

Conductor:high bending strength ultra-fine stranded copper conductor

Insulation:high mechanical strength TPE mixture

Core identification:one is yellow/green insulated wwire,others are

 black insulated wire print white font

Shield:high strength tinned copper braid

Jocket:high abrasion resistant PUR jacket.Orange(simllar to RAL2003)

Product Feature

This product meets the requirements of UL758 style 20939

Fire resistance meets FT1&IEC60332-1

Extremely oil resistance,anti-hydrolysis

Good performance of resistant to signal interference

High tensile strength,abrasion,impact and bending resistant

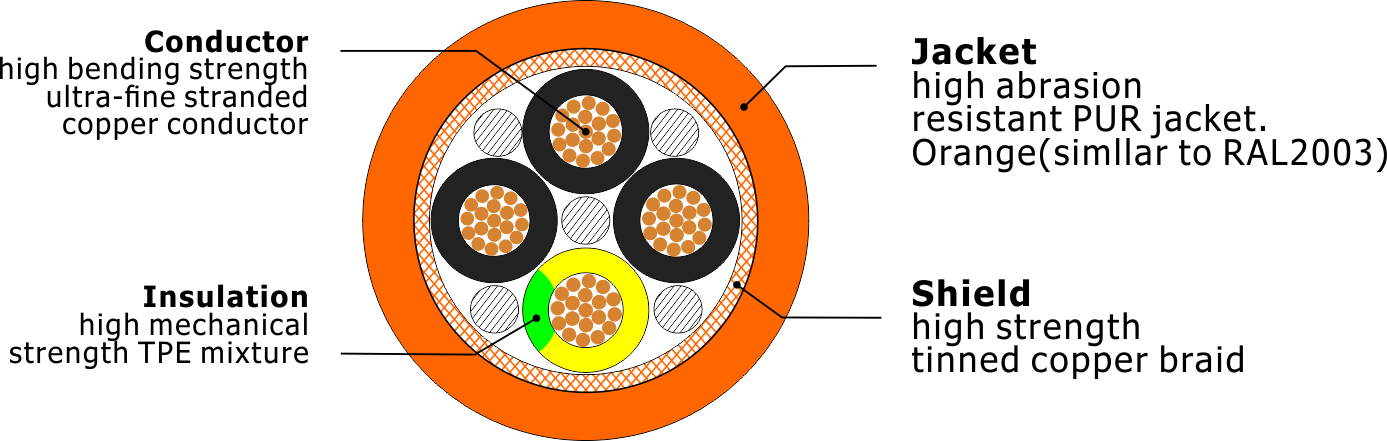

Cross Section

Z-SERVO PUR flexible,screened cable for servo motor

Technical data

Temperature range

Bend:  -30 to 80

Static: -40 to 80

Rated voltage

UL/CSA    300V

 IEC/VDE   ≤0.5mm²;300/300V

                  ≥0.5mm²;450/750V

Insulation resistance

20≥1000M ohm/km

Min bending radius

Fixed:    5D(D=cable diameter)

Moving: 7.5(D=cable diameter)

Product List

Item No.

Spec.

Jacket

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

7135000

4G*1.5

9

81

120

7135001

4G*2.5

10.1

122

171

7135002

4G*4

13.4

205

280

7135003

4G*6

15

289

381

7135004

4G*10

19.4

469

651

7135005

4G*16

22.3

711

942

7135006

4G*25

28.6

1112

1508

7135007

4G*35

31.8

1499

1975

Order Informations

Marking

HELLOSIGNAL Z-SERVO PUR flexible,screened cable
for servo motor XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
