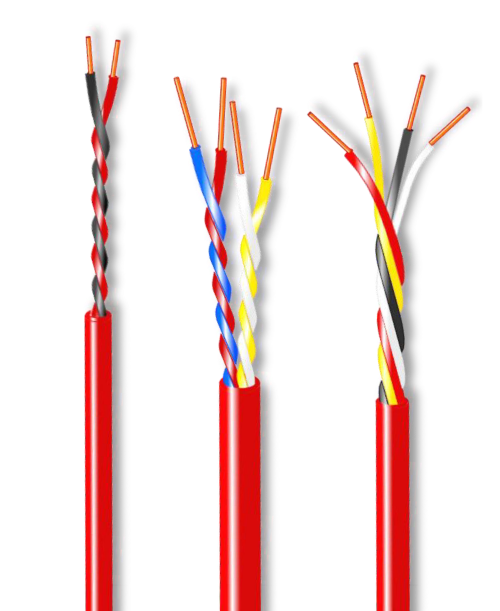

JB-YY Fire alarm cable

Technical Data and Standards

Conductor:

Bare Copper, Solid

Conductor standard:

EN 60228 CI.1

Insulation:

PVC T12(Y12)

Insulation Standard:

DIN VDE 0207

Identification:

Colored DIN VDE 0815

Out Jacket:

PVC TM2(YM2)

Fire behaviour

IEC 60332-1-2

※ J- Installation Cable | B-Fire alarm | Y-PVC insulation and jacket |  Y-PVC Jacket

COMPLIANCE （Reference Standard and Certificates)

· Conductor: EN 60228 CI.1

· Insulation: EN 50363-3  |  Jacket: EN50363-4-1

·  Fire behaviour: IEC 60332-1-2

Application Support

· These cables are designed for signal transmission in fire detection systems.

· For fixed installation on and under plaster,in dry and damp rooms
    but also in the open air for fixed installation on outer walls of buildings.

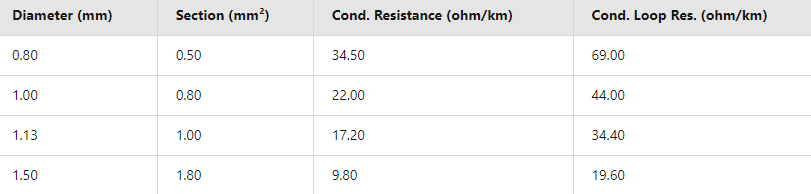

Technical Data of conductor

Diameter(mm)

0,80

1,00

1,13

1,50

Section(mm²)

0,50

0,80

1,00

1,80

Cond. Resistance (ohm/km)

34,50

22,00

17,20

9,80

Cond. Loop Res.(ohm/km)

69,00

44,00

34,40

19,60

Electrical Characteristics

Peak Operating Voltage

300 V

Operating Voltage Uo

500 V

Test Voltage

800 V

Insulation Resistance

＞100M ohm/km

PHYSICAL PROPERTIES

Bend Radius(Min)

10×OD of Jacket

Operating Temperature

-15 ℃ to 70 ℃

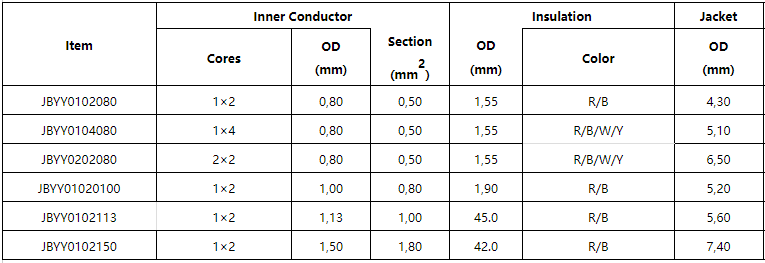

Construction

Item

Inner Conductor

Insulation

Jacket

Cores

OD
(mm)

Section
(mm²)

OD
(mm)

Color

OD
(mm)

JBYY0102080

1×2

0,80

0,50

1,55

R/B

4,30

JBYY0104080

1×4

0,80

0,50

1,55

R/B/W/Y

5,10

JBYY0202080

2×2

0,80

0,50

1,55

R/B/W/Y

6,50

JBYY01020100

1×2

1,00

0,80

1,90

R/B

5,20

JBYY0102113

1×2

1,13

1,00

45.0

R/B

5,60

JBYY0102150

1×2

1,50

1,80

42.0

R/B

7,40

※ R:RED  B:BLACK  W:WHITE  Y:YELLOW

※ Tolerance range for insulation and sheath diameter. Insulation: ±0,05mm | Jacket:±0,30 mm

Order Informations

Marking

HELLOSIGNAL JB-YY N×N×N Fire alarm Cable ...300M(or Per customer's request)

Inner Package

300m/Spool(or Per customer's request)

Outer Package

Carton, Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
