KX6
hellosignal
Specification

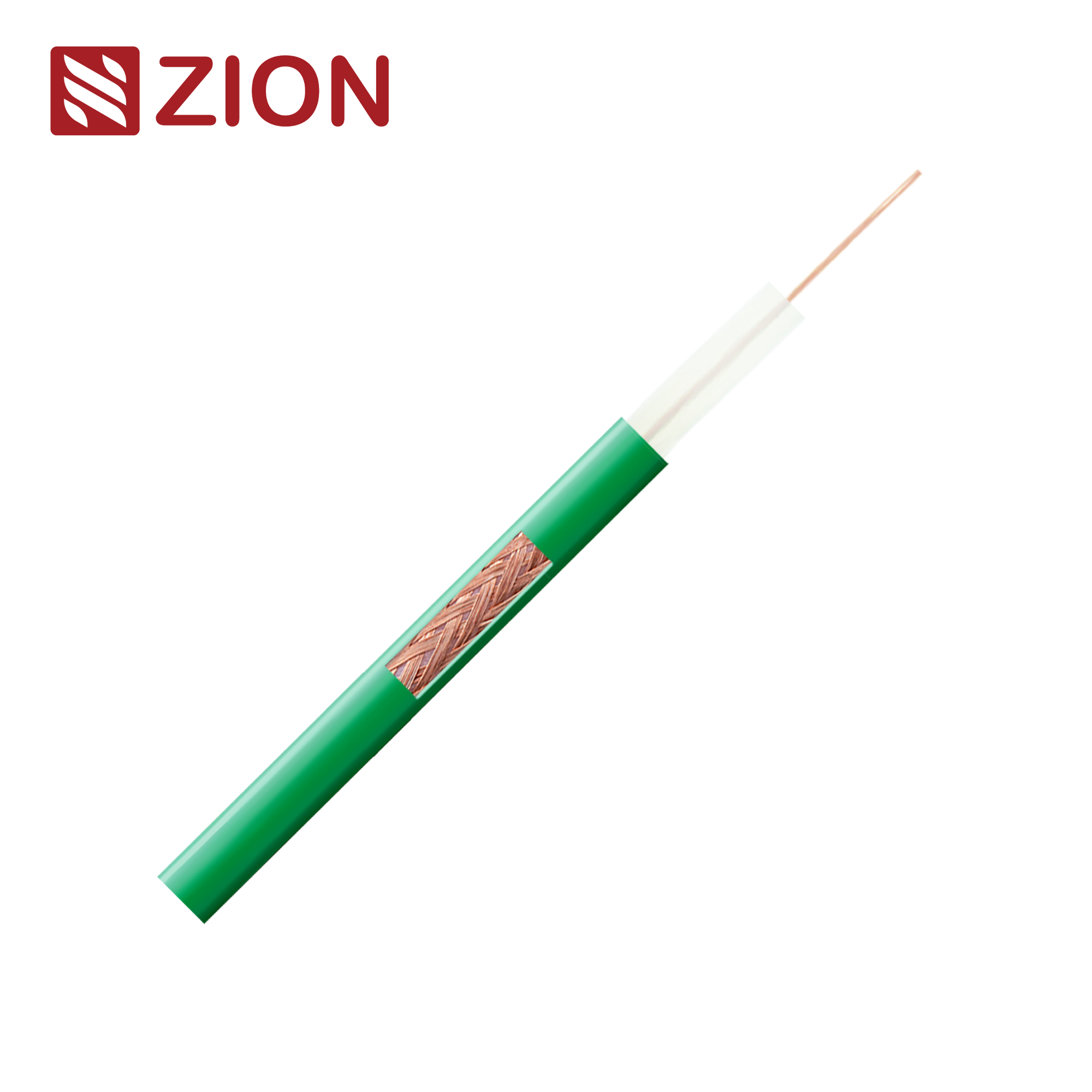

KX6 COAXIAL CABLE
| Construction Parameters: | ||
| Inner Conductor | 7×0.2mm Copper | |
| Dielectric | 3.7mm±0.10 Solid PE | |
| Shield | Copper/CCA braid wire 90% coverage | |
| Outer sheath | 6.10±0.10mm PVC | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance | 87.5Ω/KM | |
| Capacitance | 67 ±3 pF/m | |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.85 | |
| Sparker Test (VAC) | 4 | |

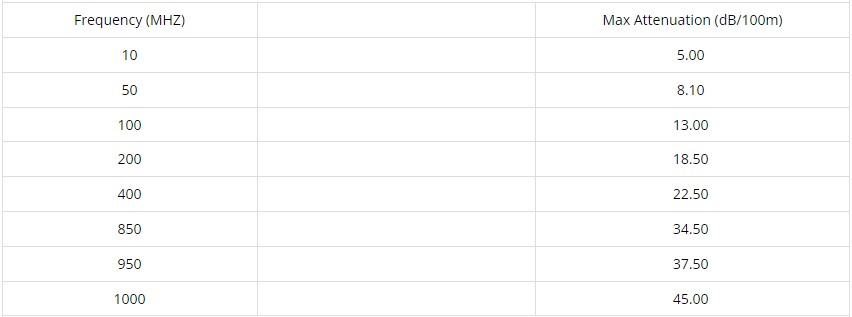

| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation (dB/100m) | |
| 10 | 5.00 | |
| 50 | 8.10 | |
| 100 | 13.00 | |
| 200 | 18.50 | |
| 400 | 22.50 | |
| 850 | 34.50 | |
| 950 | 37.50 | |
| 1000 | 45.00 | |
| Mechanical and Envrionmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ℃ to 70℃ | |
| Cable diamensions | 6.6±0.15mm PVC | |
| Order Informations: | ||
| Marking | HELLOSIGNAL KX6 COAXIAL CABLE ×××M | |
| Package | 100M/Reel (Per customers inquire) | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
