Mini RG59 Economy + 2×0.50 75 Ohm CCTV coaxial Cable

Construction Parameters:

Inner Conductor

0.41mm Bare Copper

Dielectric

1.9mm Foam PE

Shield 1

AL/PET/Copper Color

Shield 2

0.12mm CCA-Braid(70%)

Jacket

3.8mm PVC/PE/LSZH

Power Wire Conductor

2x(17*0.20mmCCA )

Power wire Diameter of insulation

2.0mm PVC (Red,Black)

Jacket

5.0 mm PVC/PE/LSZH

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor                         Resistance

136 Ohms/KM at 20℃

Capacitance

52±2 pF/m

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.66

Sparker Test (VAC)

3

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

3.8×5.0 mm

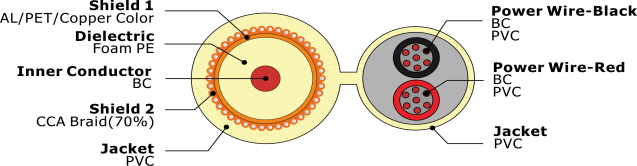

Cross Section

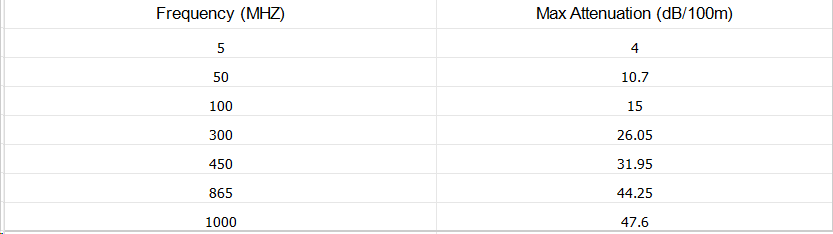

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation (dB/100m)

5

4.00

50

10.70

100

15.00

300

26.05

450

31.95

865

44.25

1000

47.60

Order Informations:

Marking

HELLOSIGNAL Mini RG59 Economy+ 2×0.50 Figure 8
CCTV COAXIAL CABLE 7102168 ×××M

Package

100M/Roll,200M/Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
