N8DMSCL - N Male Clamp Straight Connectors for 7D-FB Cable

 SKU: N8DMSCL
 装接式/Clamp Type

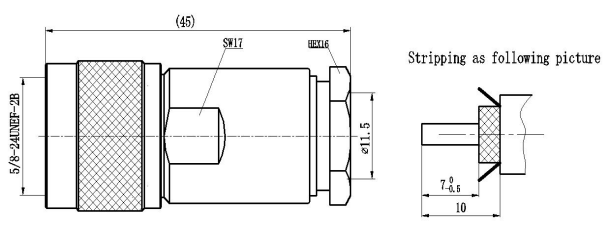

For Cable：8D-FB Cable Dimensions are in millimeters (Jacket OD: 11.1±0.1mm)

Interface:

According to

IEC 60169-16

Electrical:

Characteristic Impedance

50 ohm

Frequency Range

DC-3GHz

VSWR

≤1.2

Insertion Loss (3G)

≤0.15

Dielectric Withstanding Voltage

≥2500V RMS,50Hz,at sea level

Dielectric Resistance

≥5000MΩ

Contact Resistance

Center Contact ≤1.0mΩ
Outer   Contact ≤1.0mΩ

Mechanical:

Durability

Mating cycles ≥500 cycles

Material and plating:

Material

plating

Body

Brass

Ni

Insulator

PTFE

_

Center conductor

Phosphor bronze

Au

Other

Brass

Ni

Environmental:

Temperature Range

-40℃～+85℃

RoHS-compliance

Full ROHS compliance

Salt-fog test

96h
