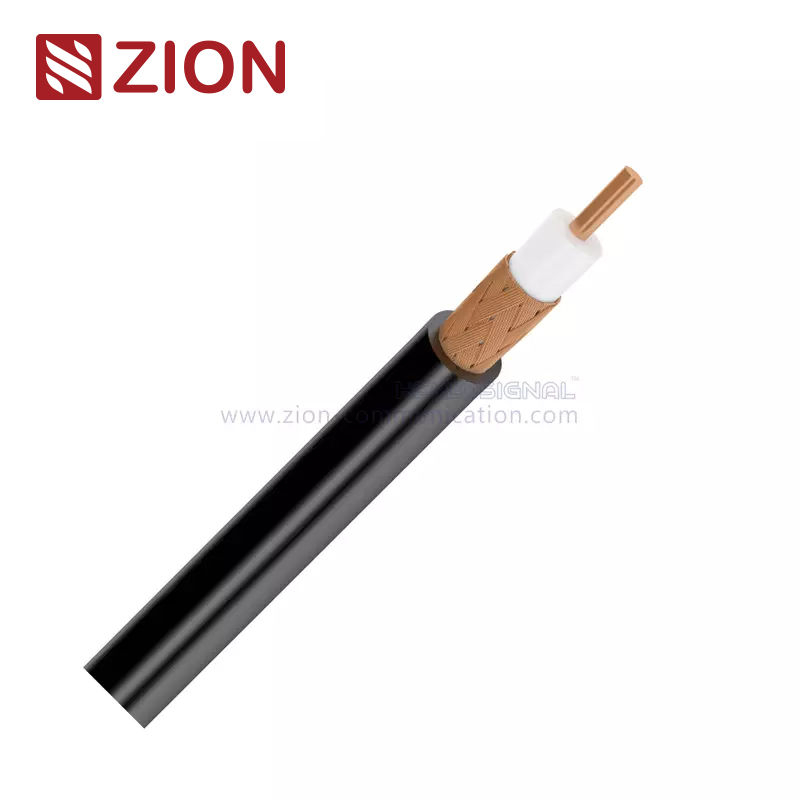

NO.7100263 RG11U BC FEP 95% BC Copolymer

Construction Parameters:

Inner Conductor

0.064"/1.63mm/14AWG BC

Dielectric

0.144"/7.11mm Foamed Polyethylene

Shield

Bare Copper(95%)

Jacket

0.4"±0.006"/10.3mm±0.15mm Copolymer

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

8.25 Ohms/KM at 20℃

Capacitance

16.2±0.35 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 23dB

Velocity of Propagation

0.82

Sparker Test (VAC)

3

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

0.4"±0.006"/10.3mm±0.15mm PVC

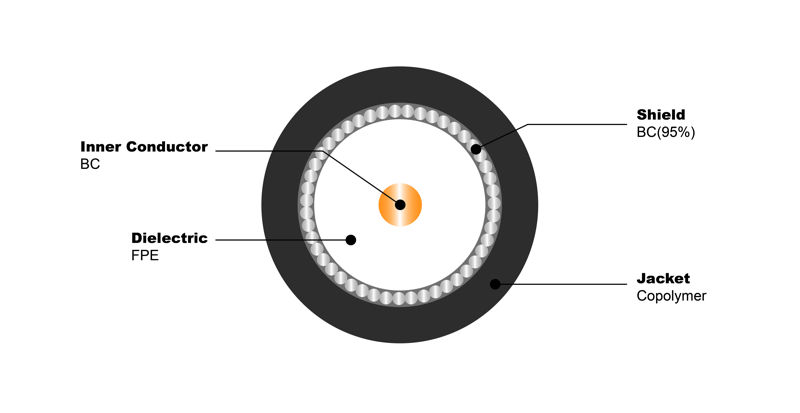

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

5

10

0.35

50

0.87

100

1.38

200

1.98

400

2.95

700

4.00

900

4.54

1000

4.70

Order Informations:

Marking

HELLOSIGNAL RG11U BC FEP 95% BC Copolymer

CCTV COAXIAL CABLE 7100263 ×××M/FT

Package

Inquired Length on wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
