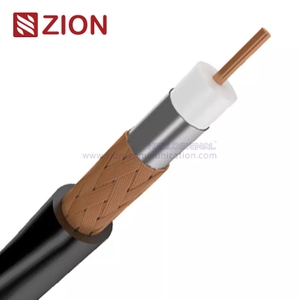

NO.7100316 Паракс РК 75-2-122 BC 45% BC PVC

Construction Parameters:

Inner Conductor

0.014"/0.37mm/28 AWG BC

Dielectric

0.144"/2.2mm  Solid PE

Shield 1

Al/PET

Shield 2

Copper braid wire 45% coverage

Jacket

0.130"±0.006"/3.30±0.30mm PVC

Jacket Thickness

0.032"/0.81mm

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be < 168.2 Ω/km

Capacitance

68±1 pF/m

Impedance

75±5 Ω

Return loss

20dB

Velocity of Propagation

Sparker Test (VAC)

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

0.130"±0.006"/3.30±0.30mm PVC

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

10

6.40

50

12.70

200

24.00

470

37.60

862

52.10

1000

56.70

1350

65.60

1750

76.80

2150

85.80

2400

97.90

Order Informations:

Marking

HELLOSIGNAL PK75-2-122 BC 45% CCA PVC

CCTV COAXIAL CABLE 7100316 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL®OR OEM
