NO.7100347 Паракс РК 75-3-314 нг(А)-HF BC 65% TCCA LSZH

Construction Parameters:

Inner Conductor

0.024"/0.60mm/22 AWG BC

Dielectric

0.144"/2.70mm FPE

Shield 1

Cu/Pet Foil

Shield 2

0.005"/0.12mm TCCA(65%)

Jacket

0.170"±0.006"/4.50±0.30mm LSZH

Jacket Thickness

0.032"/0.81mm

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be < 63Ω/km

Capacitance

56.5±1 pF/m

Impedance

75±5 Ω

Return loss

between 5 and 1000MHz: > 20dB

Velocity of Propagation

0.82

Sparker Test (VAC)

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

0.130"±0.006"/3.30±0.30mm LSZH

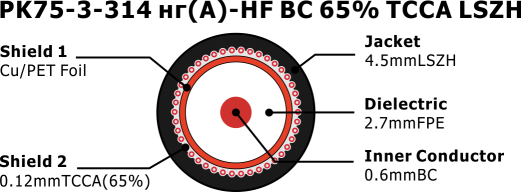

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100m)

10

3.51

50

7.50

200

15.50

470

24.20

862

33.30

1000

36.30

1350

42.70

1750

49.60

2150

54.90

Order Informations:

Marking

HELLOSIGNAL PK75-3-314 нг(А)-HF BC 65% TCCA LSZH

CCTV COAXIAL CABLE 7100347 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
