NO.7102103 RG59 67% + 2X26 AWG

Construction Parameters:

Inner Conductor

0.032"/0.81mm/20AWG CCS

Dielectric

0.144"/3.66±0.05mm Foamed Polyethylene

Shield

0.12mmAL-Braid(67%)

Jacket

6.0mmPVC

Power Wire Conductor

2x(10*0.12mmCCA )

Power wire Diameter of insulation

0.91HDPE(Red,Black)

Jacket

3.0mmPVC

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor                   Resistance

The Max. at 20℃ shall be <   139.5 Ω/km

42.5Ω/1000ft

Capacitance

52 ±3 pF/m       15.8 ±1 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

6.0×3.0mm

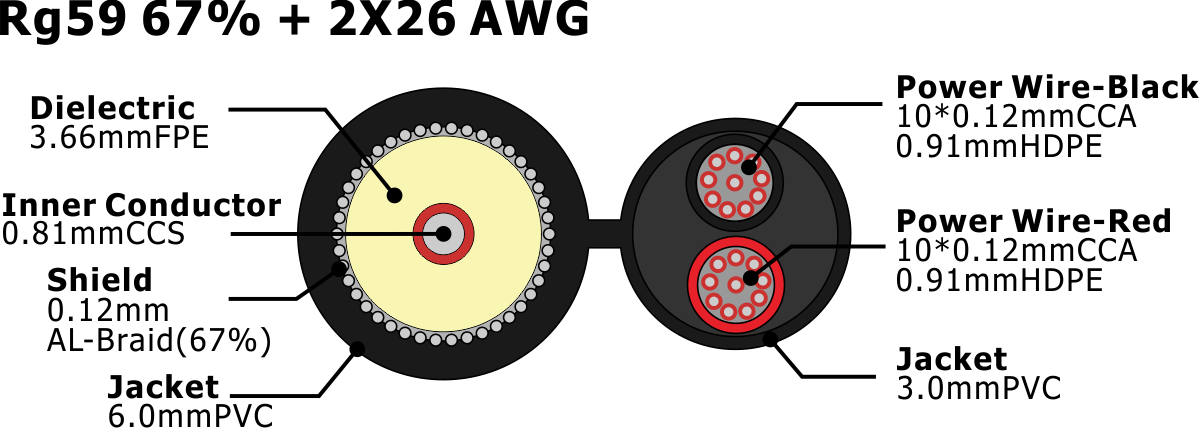

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.86

2.82

55

2.05

6.73

83

2.45

8.04

187

3.60

11.81

211

3.80

12.47

250

4.10

13.45

300

4.45

14.60

350

4.80

15.75

400

5.10

16.73

450

5.40

17.72

500

5.70

18.70

550

5.95

19.52

600

6.20

20.34

750

6.97

22.87

865

7.52

24.67

1000

8.12

26.64

Order Informations:

Marking

HELLOSIGNAL RG59 67% + 2X26 AWG
CCTV COAXIAL CABLE 7102103 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
