NO.7102137 HD70+2×0.75

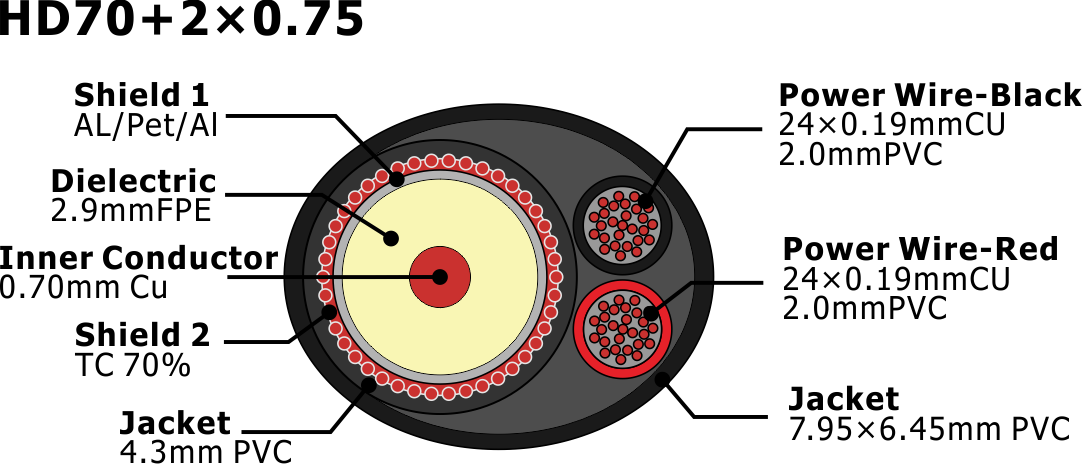

Construction Parameters:

Inner Conductor

0.70mm Cu

Dielectric

2.9mm Foamed Polyethylene

Shield 1

AL/Pet/Al

Shield 2

TC 70%

Jacket

4.3mm PVC

Power Wire Conductor

2x(24×0.19mmCU )

Power wire Diameter of insulation

2.0mmPVC(Red,Black)

Jacket

7.95×6.45mm PVC Common

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor                   Resistance

The Max. at 20℃ shall be <   64.9  Ω/km

Capacitance

52 ±3 pF/m       15.8 ±1 pF/ft

Impedance

75 ± 3 Ω

Return loss

20dB

Velocity of Propagation

0.82

Sparker Test (VAC)

3

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

7.95×6.45mm

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

1

1.80

5

2.80

10

3.90

50

7.90

100

11.10

200

15.10

400

21.80

700

29.80

900

34.40

1000

36.00

Order Informations:

Marking

HELLOSIGNAL HD70+2×0.75
CCTV COAXIAL CABLE 7102137 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
