NO.7110606 3×2.5mm² FPLR Fire Alarm Cable

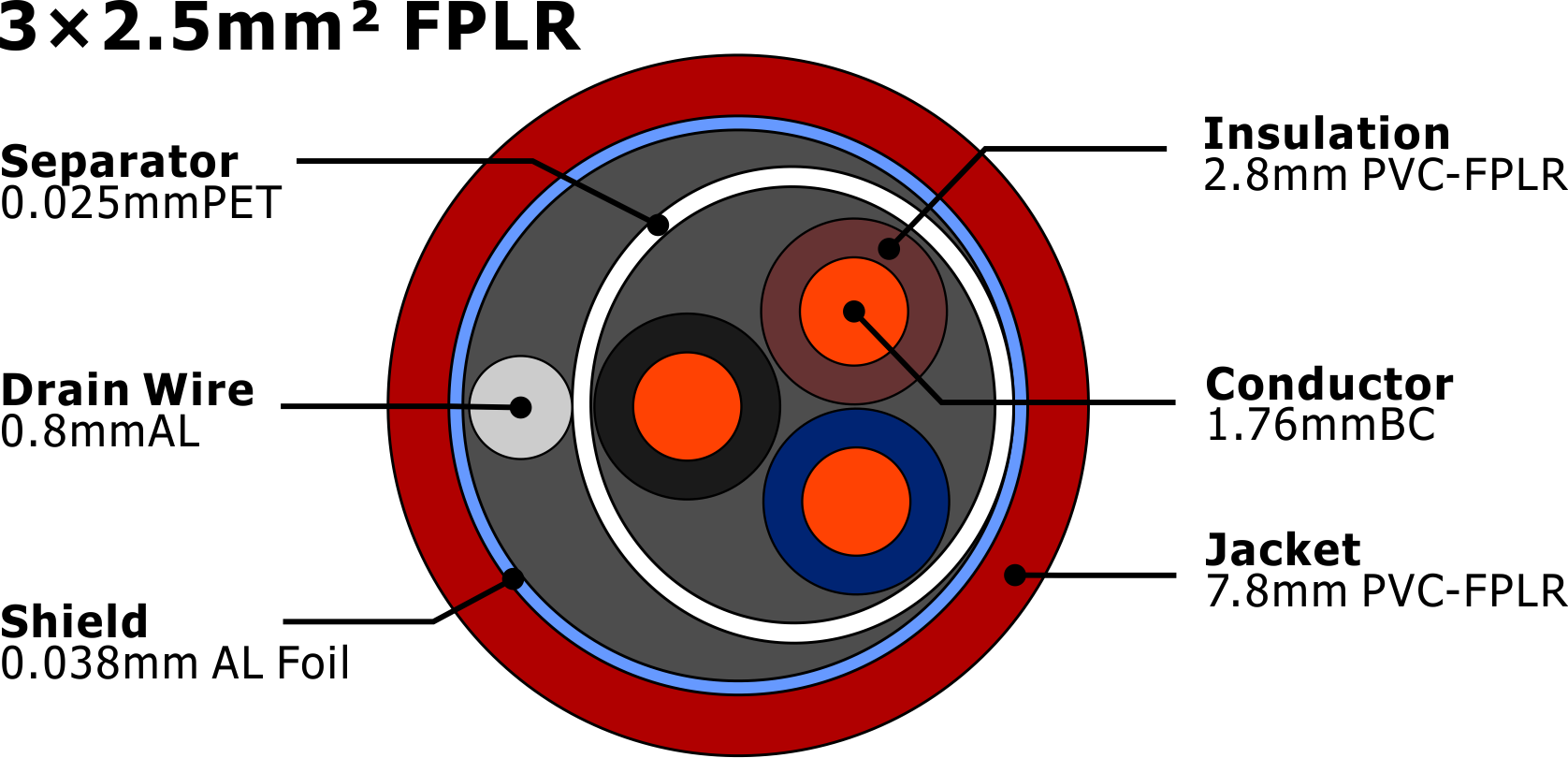

Cable construction :

Conductor:

Solid Bare Copper
3×1.76mm

Insulation:

Type:PVC-FPLR
Dia.over Dielectric: 0.110''nom.(2.8mm)

Insulation Color:

Blu/Brn

Separator :

PET Foil

Drain Wire:

0.8mm Aluminum/TCCA

Shield:

Aluminum PET (100% Coverage 20% overlapping)

Jacket:

PVC-FPLR

Dia.over Jacket: 0.307''(7.8mm)

Print Legend:

HELLOSIGNAL NO.7110606 3×2.5mm2 FPLR MMDDYYYY

Electrical Properties :

Min.Conductor resistance

17.2Ω/km

Min.Insulation resistance

300 MΩ/km

Temperature Range

-35℃～+105℃

Test voltage (rms value)

2KV/15 min , 1KV/5min

Max. Operating
Voltage peak value

Cross Section :

Standard:

ANSI/UL 1424, Cables for Power-Limited Fire-Alarm Circuits

All these cables comply to:

Application of insulation

BS 7629-1-2008

Inner Conductor Diameter

BS EN 60228

Insulation Type

BS 50363-5

Corrosive and Acid Gas Emission

BS EN 50267-2-1

Flame Propagation(bunched cable)

IEC332-3/TS EN50266

Flame Propagation(single cable)

IEC332-1/TS EN60332-1-2

Sheath

BS 7656-6-1/LTS 3

Order Informations :

Package

Inquired Length on Reel,Pull Box,
Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
