NO.7111204 2×0.50+8×0.22mm² STR-U

Name: NO.7111204 2×0.50+8×0.22mm² STR-U
Brand: hellosignal
Rating: 5.0 (41 reviews)

Conductor: Stranded or solid Conductor Material: Copper, Tinned Copper, CCA, TCCA Insulation: PVC Drain Wire: Stranded or solid Rip Cord Jacket: PVC White or as customers need

Model:
Security Cable shielded
Brand:
hellosignal
Code:
7111204
Categories:
security alarm cable
Certificates:
UL, ETL, CE,CPR, RoHS
Length:
100m,305m,500m,500ft,1000ft
Packing:
pull box, wooden spool, carton, pallet
MOQ:
10KM
Delivery time:
Normally 25 working days
Port of Loading:
NINGBO, SHANGHAI
Term of payment:
T/T, L/C at sight, D/P at sight

Availability:



Inquire Add to Basket

Product Description


2×0.50+8×0.22mm² STR-U Security Alarm Cable NO.7111204

Cable construction :
Party 1
Conductor:
2×(16/0.20mm)TC/BC/CCA/TCCA
Dielectric:
Type: PVC
Diameter: 1.50mm
Color Code:
1.Blk	2.Red
Party 2
Conductor:
8×(7/0.20mm)TC/BC/CCA/TCCA
Dielectric:
Type: PVC
Diameter: 0.95mm
Color Code:
1.Blk	2.Red	3.Ylw	4.Grn
5.Brn	6.Blu	7.Wht	8.Org
Rip Cord
Cotton Wire
Jacket:
Type: PVC
Diameter: 5.70mm

Print Legend:
HELLOSIGNAL NO.7111204 2×0.50+8×0.22mm² STR-U Security Alarm Cable ××× M

Application:
Wiring Burglar & Security alarms, public address systems,intercoms, telephone stations, speakers,instrumentation,control and other low voltage circuits that are power limited.

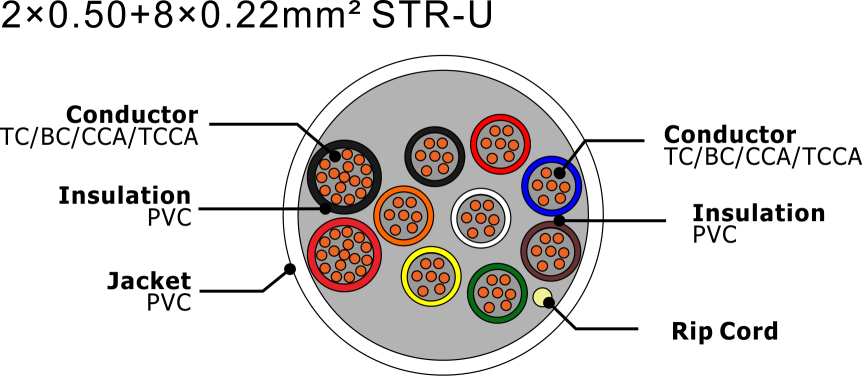

Cross Section :














Order Informations :
Package			Inquired Length on Reel,Pull Box,Plastic Spool,Wooden Spool,Pallet …
Delivery time			Normally 25 days after received the deposit.
Brand			HELLOSIGNAL^TM OR OEM

Production Process Flow

#1 Insulation Line 1

#2 Insulation Line 2

#3 Twisting Machine 1

#4 Twisting Machine 2

#5 Jacket Line

#6 Testing Room1

#7 Testing Room2

#8 Loading Container
