NO.7112224 SF/UTP CAT6 BC PVC CMR

Construction

Conductor:

23 AWG Solid Bare Copper

Pairs:

4 Pairs

Insulation:

1.14 mm HDPE

Insulation Colors:

Blue-White/Blue,Orange-White/Orange

Green-White/Green,Brown-White/Brown

Filler:

Cross Filler

Shield 1:

PET

Drain Wire:

0.40±0.005mm TC

Shield 2:

Al/PET Foil,Foil face out

Shield 3:

TC or AL_MG Braiding

Rip Cord:

Cotton

Out Jacket:

8.1±0.2 mm  PVC CMR

Electrical Characteristics

Impedance

1 - 250MHz 100±15 Ohms

Insulation Resistance

＞5000MΩ*KM

Dielectric strength

DC  2500V  2S

Max.Conductor DC

8.4 Ohms/100m

Resistance 20℃

Res. unbalance (%)

Max. 2.5

Pair to Ground

330 pF/100m

Capacitance Unbalance

Transfer Impendance

Max 10 mOhms/m  @100Mhz

Installation temp.

 -30 - 50℃

Operation temp.

 -20 - 75℃

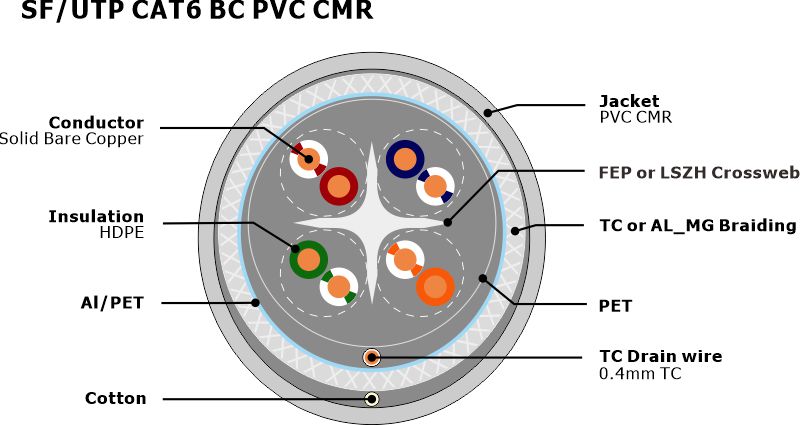

Cross Section

 Application

•  Exceeds ANSI/TIA-568-C.2 and ISO 11801 2nd Edition Class E Category 6 channel standards.

•  Exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156·5 Category 6 component standards.

•  Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.

•  Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.

•  Descending length cable markings enable easy identification of remaining cable

   which reduces installation time and cable scrap.

•  Color Availability: Additional cable colors available.

Performance Characteristics

Frequency

RL(Min.)

Insertion Loss(Max.)

Propagation Delay (Max.)

Delay Skew(Max.)

NEXT (Min.)

PSNEXT (Min.)

ELNEXT (Min.)

PSELNEXT (Min.)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

1

20

2

570

45

74

72

67.8

64.8

4

23

3.8

552

45

65

63

55.7

52.7

10

25

6

545

45

59

57

47.8

44.8

16

25

7.6

543

45

56

54

43.7

40.7

20

25

8.5

542

45

55

53

41.7

38.7

31.25

23.6

10.7

540

45

52

50

37.9

34.9

62.5

21.5

15.4

539

45

47

45

31.8

28.8

100

20.1

19.8

538

45

44.3

42.3

27.8

24.8

200

18

29

537

45

39.7

37.7

21.7

18.7

250

17.3

32.8

536

45

38

36

19.8

16.8

Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations

Marking

HELLOSIGNAL NO.7112224 SF/UTP CAT6 4PR 23AWG PVC CMR  XXX

(or Per customer's request)

Inner Package

305m/Spool,305m/Reel (or Per customer's request)

Outer Package

Color Box, Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^®   OR OEM
