NO.7112322 U/FTP CAT 6A BC PVC

Construction

Conductor:

23 AWG Solid Bare Copper

Pairs:

4 Pairs

Insulation:

1.35 mm Skin-Foam-Skin

Insulation Colors:

Blue-White/Blue,Orange-White/Orange

Green-White/Green,Brown-White/Brown

Overall Shield

Individual Pair shield,Al/PET Foil,Foil face out

Drain Wire

0.40±0.005mm TC

Rip Cord:

Cotton

Out Jacket:

8.0±0.2 mm  PVC

Electrical Characteristics

Impedance

4 - 100MHz 100±15 Ohms

100 - 200MHz 100±22 Ohms

200 - 500MHz 100±32 Ohms

Max.Conductor DC

8.7 Ohms/100m

Resistance 20℃

Res. unbalance (%)

Max. 2.5

Pair to Ground

330 pF/100m

Capacitance Unbalance

Transfer Impendance

Max 10 mOhms/m  @100Mhz

Installation temp.

 -30 - 50℃

Operation temp.

 -20 - 75℃

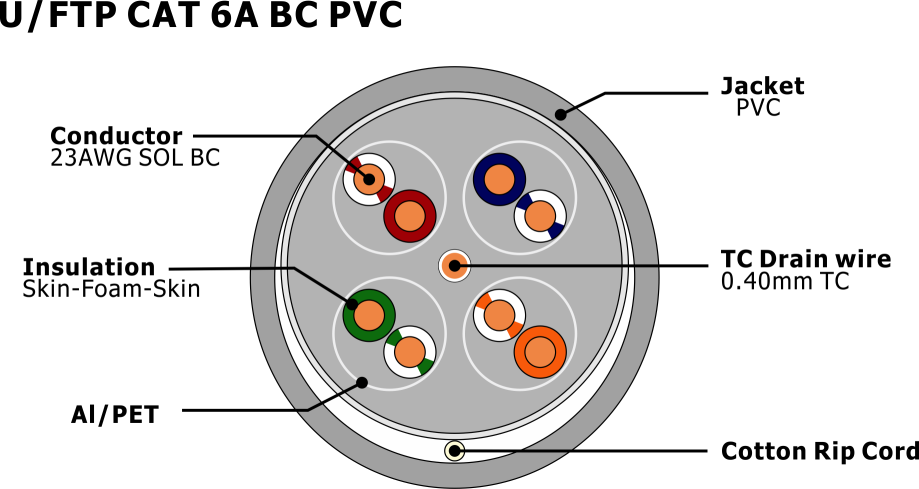

Cross Section

Application

•  Suitable for structured premises cabling.

•  For transmission of digital and analogue voice and data signals.

•  Especially suitable for all Class EA applications.

•   ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base-T.(IEEE 802.3).

•  Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s.(IEEE802.5).

Standard

IEC/ISO 61156-5; ANSI/TIA568C.2; ISOIIEC 11801

Performance Characteristics

Frequency

RL (Min.)

Insertion Loss(Max.)

Propagation Delay (Max.)

Delay Skew(Max.)

NEXT (Min.)

PSNEXT (Min.)

ELNEXT (Min.)

PSELNEXT (Min.)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

1

20

2.1

570

45

74.3

72.3

67.8

64.8

4

23

3.8

552

45

65.3

63.3

55.8

52.8

10

25

6

545

45

59.3

57.3

47.8

44.7

16

25

7.6

543

45

56.2

54.2

43.7

40.7

20

25

8.5

542

45

54.8

52.8

41.8

38.8

31.25

25

10.7

540

45

51.9

49.9

37.9

34.9

62.5

21.5

15.4

539

45

47.4

45.4

31.9

28.9

100

20.1

19.8

538

45

44.3

42.3

27.8

24.8

200

18

29

537

45

39.8

37.8

21.8

18.8

300

17.3

36.4

536

45

37.1

35.1

18.3

15.3

400

17.3

43

536

45

35.3

33.3

15.8

12.8

500

17.3

45.3

536

45

33.8

31.8

13.8

10.8

Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations

Marking

HELLOSIGNAL NO.7112322 U/FTP CAT6A 4PR 23AWG PVC
XXX (or Per customer's request)

Inner Package

305m/Spool,305m/Reel (or Per customer's request)

Outer Package

Color Box, Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^®  OR OEM
