NO7102201 КВК-В-1,5+2х0.35,Common

Construction Parameters:

Inner Conductor

0.25mmCu

Dielectric

1.6mm Solid Polyethylene

Shield

64×0.12mmCCA(90%)

Jacket

3.1mm PVC

Power Wire Conductor

2x(7x0.25mmCCA )

Power wire Diameter of insulation

1.7mm PVC (Red,Black)

Jacket

6.1mm PVC Common

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor                         Resistance

The Max. at 20℃ shall be <   350 Ω/km

Capacitance

68 ±3 pF/m

Impedance

75 ± 5Ω

Return loss

20dB

Velocity of Propagation

0.82

Sparker Test (VAC)

3

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

6.1mm

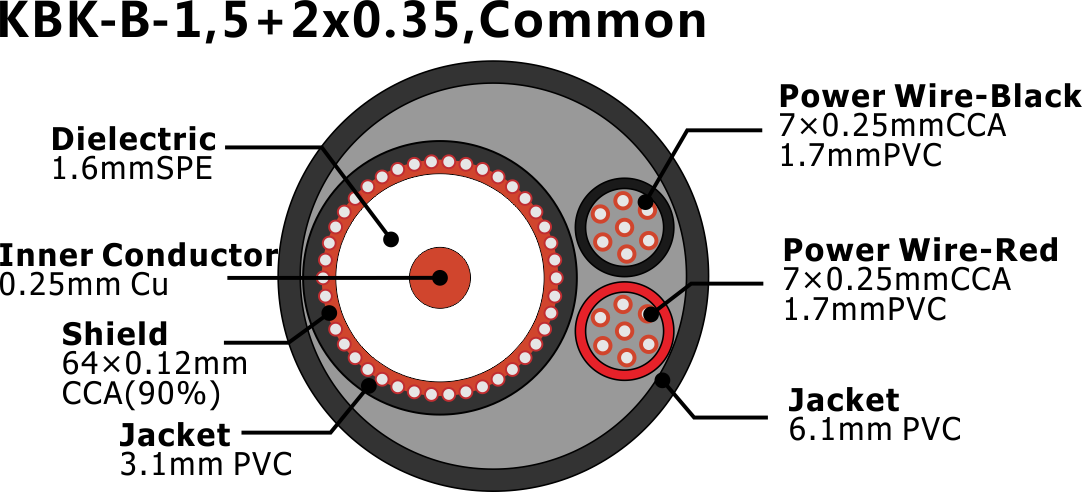

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

5.21

50

16.45

100

23.23

300

40.22

450

49.26

865

68.28

1000

73.42

1750

97.12

2150

107.70

2500

116.07

3000

127.15

Order Informations:

Marking

HELLOSIGNAL КВК-В-1,5+2х0.35,Common
CCTV COAXIAL CABLE 7102201 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
