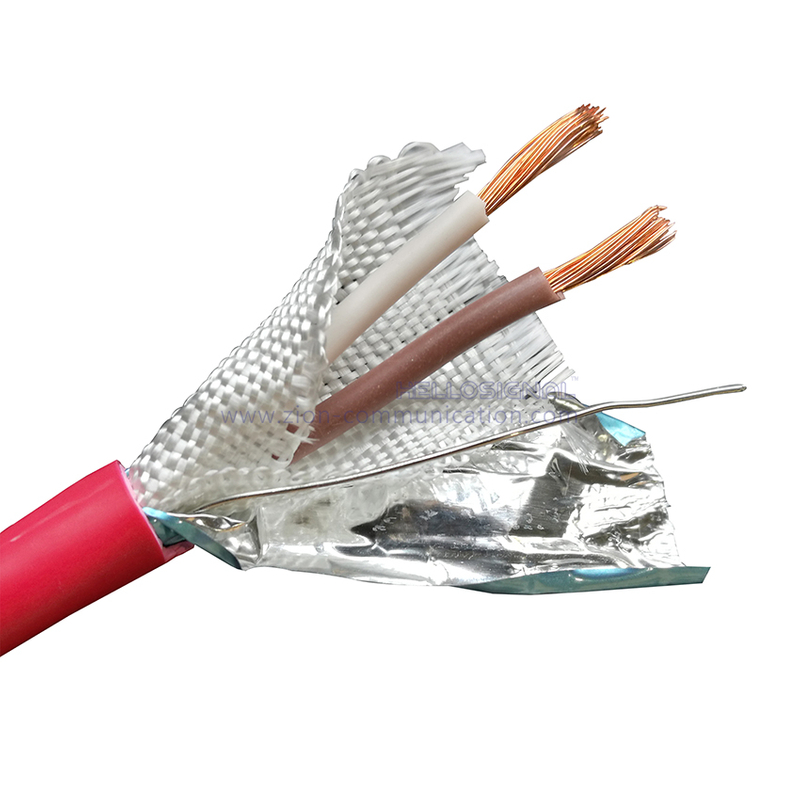

PH120 FG40HM1 2Cores Fire Alarm Cable
| Application: | ||||||
| These cables are used for installation in fire systems for connecting fire alarms etc. The cable can be installed in dry and moist areasas well for fixed open air installation. This cable type with electrostatic screening (St) protects the transmission circuits against externelectrical interferences. | ||||||
| Standards: | ||||||
| All these cables comply to: BS 5839-1:2002 Code of practice for fire system design, installation, commissioning and maintenance. BS 7629-1:2008 Low emission of smoke and corrosive gases BS EN 50200 PH120 Temperature: 830 °C Flame and shock for 120 minutes. | ||||||
| Electrical Data(at20℃) | ||||||
| Minimum Bend Radius | Min.Insulation resistance | Max.Working Temperature | Test voltage (rms value) | Max. Operating voltage peak value | ||
| MΩ/km | ℃ | V | V | |||
| 8×Diameter | 300 | -40℃～+90℃ | 1000 | 300/500 | ||
| Types and Mechanical Data | ||||||
| Types sqmm (mm2) | Conductor | Insulation | Shielded | Drain Wire | Sheath Matterial | OD of Sheath (mm) |
| 2×0.5 | BC Class 5 | Silicone Rubber | PET/AL-Foil 125% | TC | FR-LSZH | 5.40±0.20 |
| 2×0.75 | BC Class 5 | Silicone Rubber | PET/AL-Foil 125% | TC | FR-LSZH | 5.80±0.20 |
| 2×1.0 | BC Class 5 | Silicone Rubber | PET/AL-Foil 125% | TC | FR-LSZH | 7.00±0.20 |
| 2×1.5 | BC Class 5 | Silicone Rubber | PET/AL-Foil 125% | TC | FR-LSZH | 7.50±0.20 |
| 2×2.5 | BC Class 5 | Silicone Rubber | PET/AL-Foil 125% | TC | FR-LSZH | 8.50±0.20 |
| 2×4.0 | BC Class 5 | Silicone Rubber | PET/AL-Foil 125% | TC | FR-LSZH | 9.80±0.20 |
| *Notes | Class Types: | Class1: Solid / Class 2: 7 Cores / Class 5: Flexible | ||||
| FR-LSZH: | LSZH thermoplastic material Type LTS3to BS 7656-6.1 | |||||
| Silicone Rubber: | High performance silicone rubber EI2 to BS EN 50363-1 | |||||
| Technical Data | ||||||
| Types sqmm (mm2) | Max.Resistance of Cond.at 20℃ | Current Carrying Capacity (Amperes) | Nominal Capacitance(pF/m) | |||
| Class 1,2 | Class 5 | Clipped Direct | In Conduit | Core/Core | Core/Screen | |
| 0.50 | ||||||
| 0.75 | ||||||
| 1.00 | 18.10 Ω/km | 19.50 Ω/km | 19 | 17 | 100 | 170 |
| 1.50 | 12.10 Ω/km | 13.30 Ω/km | 24 | 22 | 110 | 190 |
| 2.50 | 7.41 Ω/km | 7.98 Ω/km | 33 | 30 | 130 | 220 |
| 4.00 | 4.61 Ω/km | 4.95 Ω/km | 45 | 40 | 160 | 270 |
| Order Informations: | ||||||
| Marking | HELLOSINGAL PH120 FG40HM1 Cable N*NNmm2 XXX M MMDDYYYY | |||||
| Package | 100M/Reel | |||||
| Brand | HELLOSIGNAL® OR OEM | |||||
Packing
