PS625
hellosignal
XT0206
Specification

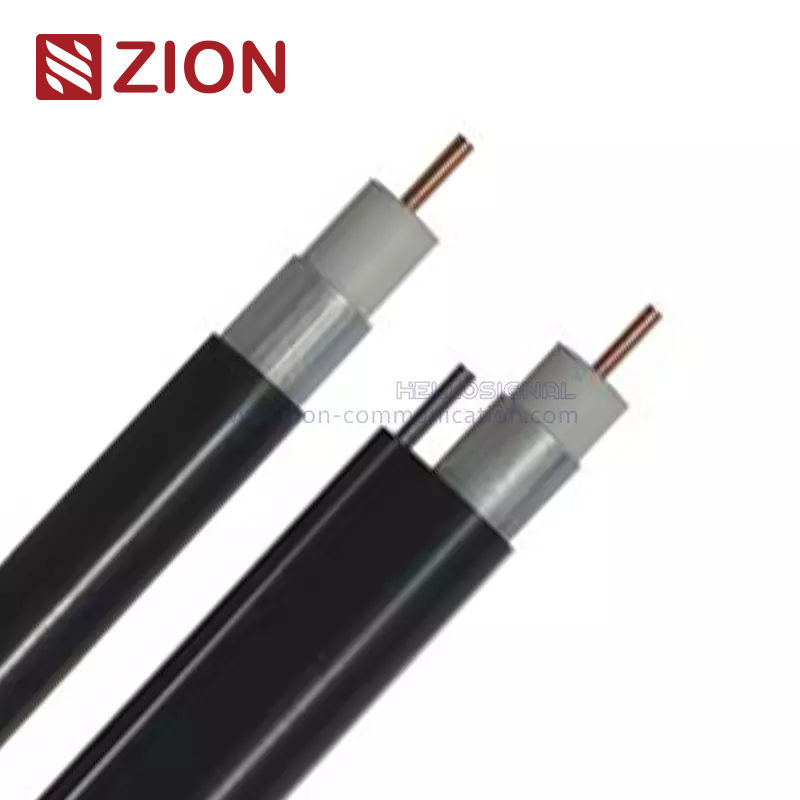

PS 625 Coaxial Cable
| Construction Parameters: | ||
| Inner Conductor | 0.137Inches /3.48mm Copper Clad Aluminum | |
| Dielectric | 0.565Inches /14.35mm Foamed PE | |
| First Shield | 0.625Inches /15.88mm Welding Smooth Aluminum Tube | |
| Shield Thickness | 0.030Inches /0.76mm | |
| Jacket | 0.685Inches /17.40mm PE/ Flame Retardant PE | |
| Jacket Thickness | 0.030Inches /0.76mm | |
| Messenger | 0.109Inches /2.77mm Steel | |
| Electrical Characteristics: | ||
| Capacitance(pF/m) | 50 ± 3 | |
| Impedance(ohm) | 75 ± 2 | |
| Velocity of Propagation (%) | 87 | |
| Inner Conductor DC Resistance(Ω/km) | 2.76 | |
| Outer Conductor DC Resistance(Ω/km) | 0.85 | |
| Loop DC Resistance(Ω/km) | 3.61 | |
| Mechanical Characteristics: | ||
| Min.Bend Radius(mm) | 127 | |
| Max.Pulling Tension(kgf) | 216 | |
| Max.Breaking Strength of Messenger(kgf) | 816 | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Nominal (dB/100m) | Max Attenuation (dB/100m) |
| 5.00 | 0.39 | 0.43 |
| 55.00 | 1.38 | 1.48 |
| 83.00 | 1.67 | 1.84 |
| 211.00 | 2.79 | 3.02 |
| 250.00 | 3.02 | 3.28 |
| 300.00 | 3.35 | 3.54 |
| 350.00 | 3.58 | 3.87 |
| 400.00 | 3.87 | 4.17 |
| 450.00 | 4.13 | 4.43 |
| 500.00 | 4.33 | 4.69 |
| 550.00 | 4.63 | 4.92 |
| 600.00 | 4.86 | 5.18 |
| 750.00 | 5.45 | 5.84 |
| 865.00 | 5.81 | 6.33 |
| 1000.00 | 6.40 | 6.79 |
| Order Informations: | ||
| Marking | HELLOSIGNAL PS 625 XXX M (or Per customer's request) | |
| Package | 1000m/Wooden Spool (or Per customer's request) | |
| Delivery time | Normally 15 days after received the deposit. | |
| More informations | please contact with us. | |
| Brand | HELLOSIGNAL® OR OEM | |
