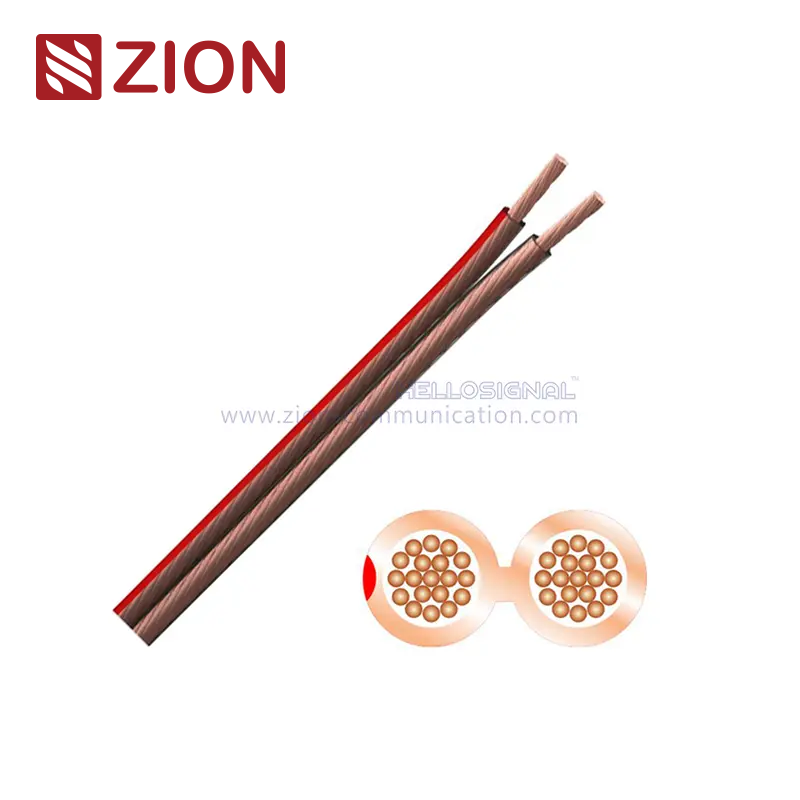

Parallel Speaker Cable (PSC2×2.5-PVC)-ZIPCORD

Parallel Speaker Cable (PSC2×2.5-PVC)-ZIPCORD

Application:

This construction method offers optimum flexibility.

Product Description:

Conductor Material

99.999% Oxygen Free Bare Copper

Number of Strands

322/0.1mm

Insulation Material

Polyvinyl Chloride (PVC)

Insulation Colour :

Clear with a Red polarity stripe

Electrical Characteristics:

Nominal Conductor Resistance

< 8.0 Ω/km

Insulation Resistance

> 200 MΩ.M

Capacitance

57 pF/m ± 12

Voltage Rating

300/500V

Test Voltage

2.5kV for 5 Minutes

Physical Characteristics:

Overall Diameter

3.6 x 7.4 ± 0.2mm

Min. Bend Radius

15 x OD

Temperature Rating

-20°C to +70°C

Standards:

Flame Retardant

BS EN 60332-1-2

RoHS3 Compliant

Yes

CE Compliant

LVD (2014/35/EU), CPR (305/2011)
