Patch Panels ZCPP197-1(D)

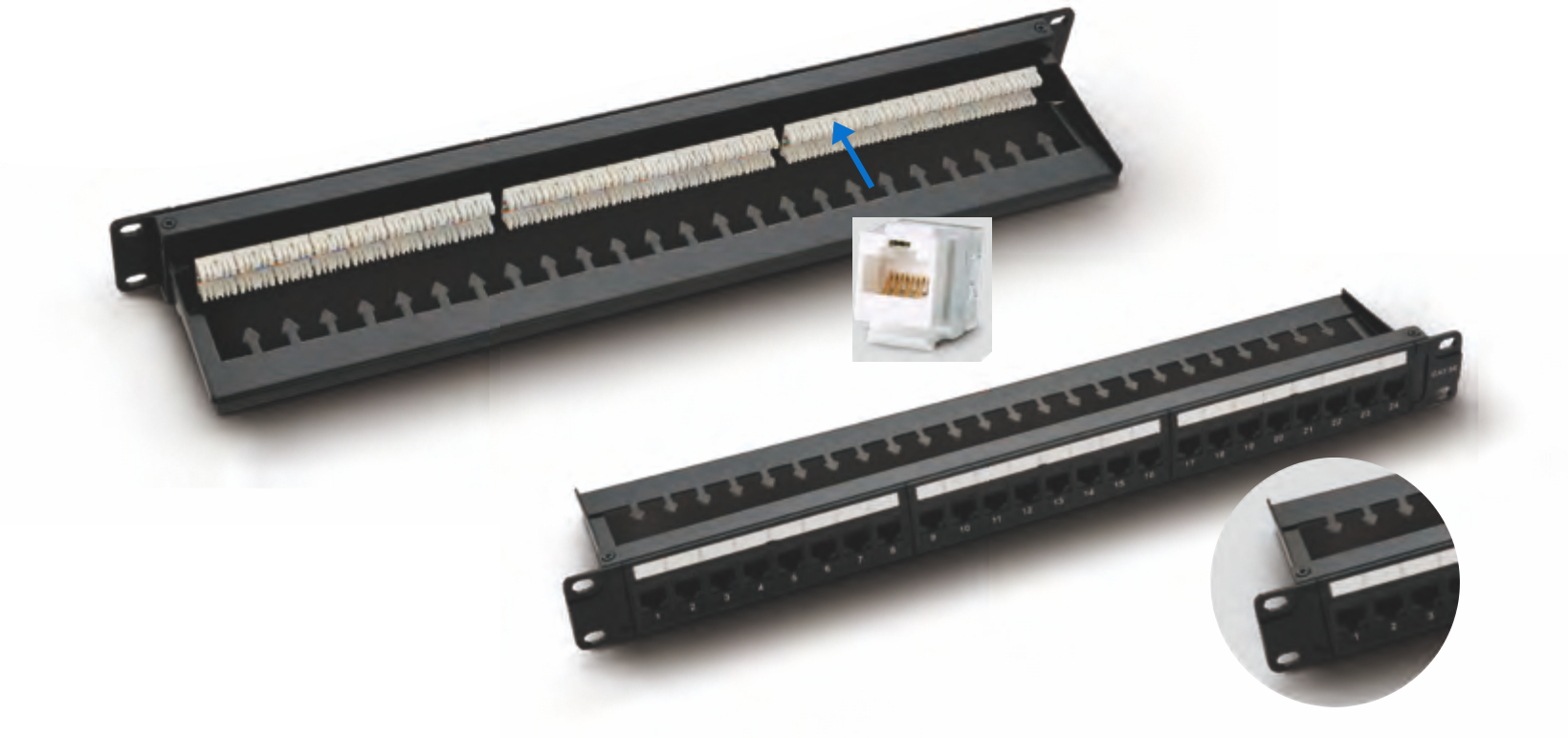

ZCPP197-1

Cat 5e patch panel

Features

∙ Meet ISO/IEC 11801,TIA/EIA568C.
∙ Fit for wires AWG22-26.
∙ Each keystone could be removed or installed, easy for
  maintenance.
∙ IDC contacts: Maximum 200 reterminations.
∙ Min. life 750 insertions.
∙ Material: PC/ABS for cover, PC for module
  phosphor bronze for IDC.
∙ 110 IDC.

Order Information

Item No.

Description

ZCPP197-24-1U5E

Cat5e 19",1U,24 ports

ZCPP197-48-2U5E

Cat5e 19",1U,48 ports

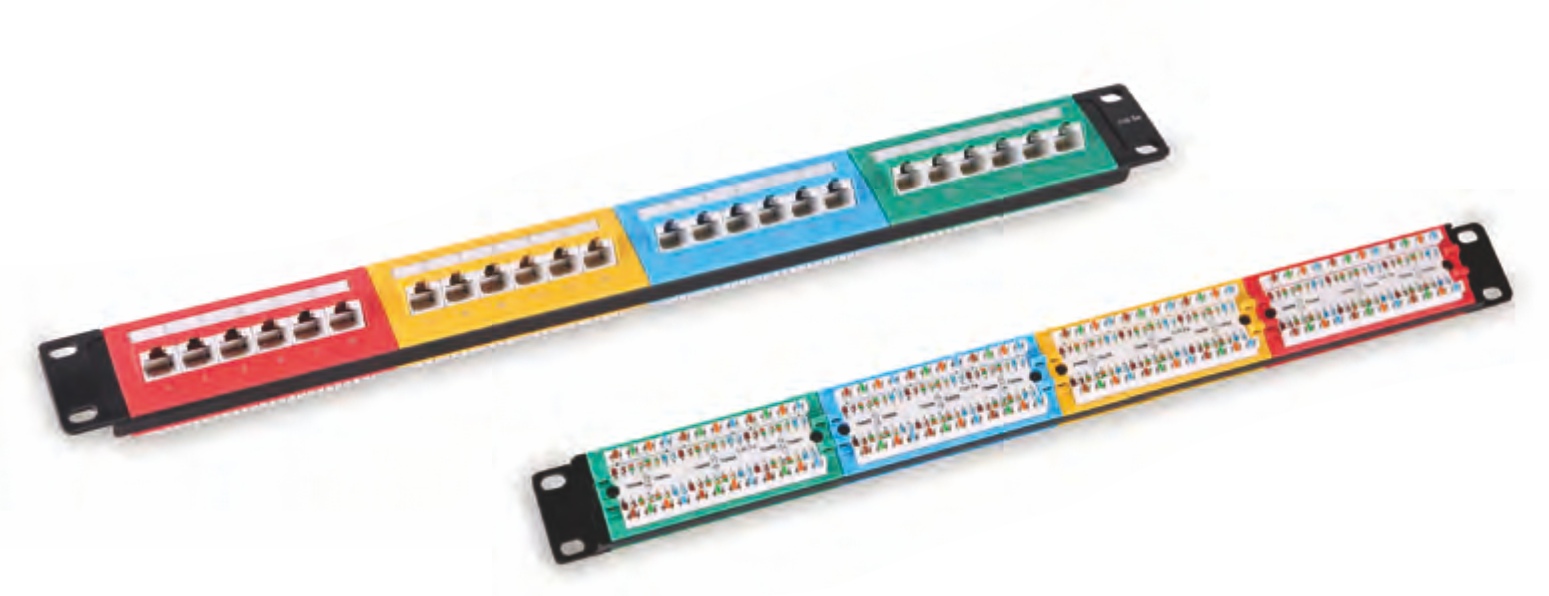

ZCPP197D

Cat 5e patch panel 45Degree.

Features

∙ Meet ISO/IEC 11801,TIA/EIA568C.
∙ Fit for wires AWG22-26.
∙ IDC contacts: Maximum 200 reterminations.
∙ Min. life 750 insertions.
∙ Material: PC/ABS for cover, PC for module
  phosphor bronze for IDC.
∙ Dual IDC.

Order Information

Item No.

Description

ZCPP197-24D-1U5E

Cat5e 19",1U,24 ports

ZCPP197-48D-2U5E

Cat5e 19",1U,48 ports
