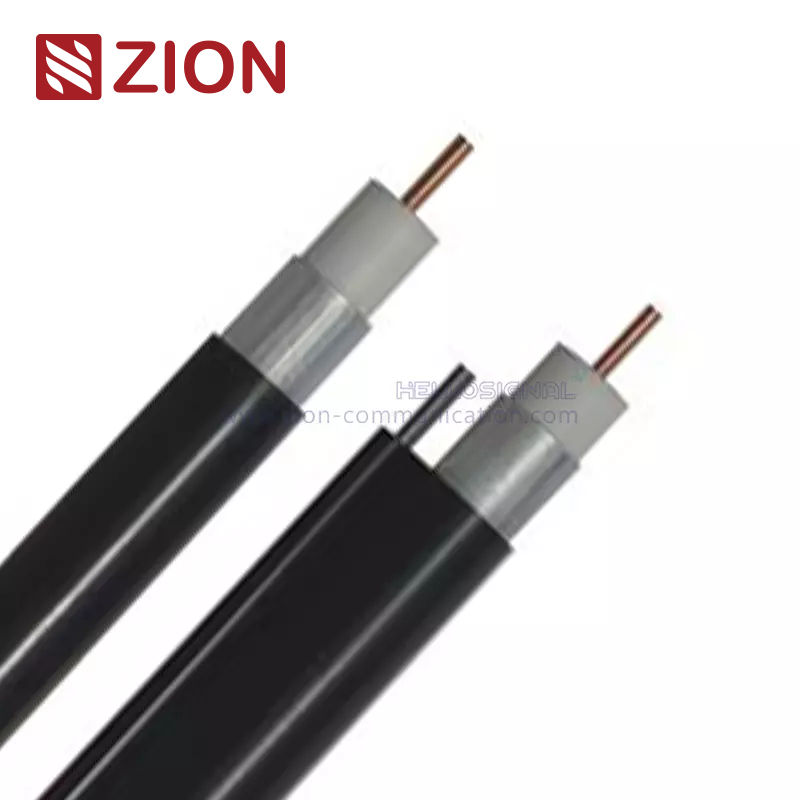

QR-715 Coaxial Cable
| Construction Parameters: | ||
| Inner Conductor | 0.166Inches /4.22mm Copper Clad Aluminum | |
| Dielectric | 0.686Inches /17.42mm Foamed PE | |
| First Shield | 0.715Inches /18.16mm Welding Smooth Aluminum Tube | |
| Shield Thickness | 0.0145Inches /0.37mm | |
| Jacket | 0.785Inches /19.94mm PE/ Flame Retardant PE | |
| Jacket Thickness | 0.035Inches /0.89mm | |
| Messenger | 0.188Inches /4.78mm Steel | |
| Electrical Characteristics: | ||
| Capacitance(pF/m) | 50 ± 3 | |
| Impedance(ohm) | 75 ± 2 | |
| Velocity of Propagation (%) | 88 | |
| Inner Conductor DC Resistance(Ω/km) | 1.9 | |
| Outer Conductor DC Resistance(Ω/km) | 1.37 | |
| Loop DC Resistance(Ω/km) | 3.27 | |
| Mechanical Characteristics: | ||
| Min.Bend Radius(mm) | 12.7 | |
| Max.Pulling Tension(kgf) | 154 | |
| Max.Breaking Strength of Messenger(kgf) | 1769 | |

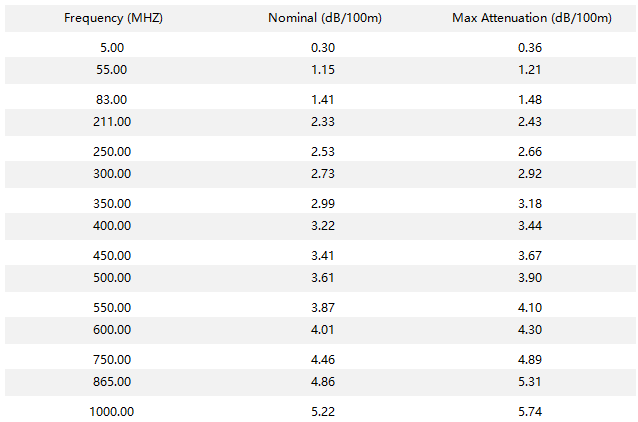

| Attenuation(20℃): | ||
| Frequency (MHZ) | Nominal (dB/100m) | Max Attenuation (dB/100m) |
| 5.00 | 0.30 | 0.36 |
| 55.00 | 1.15 | 1.21 |
| 83.00 | 1.41 | 1.48 |
| 211.00 | 2.33 | 2.43 |
| 250.00 | 2.53 | 2.66 |
| 300.00 | 2.73 | 2.92 |
| 350.00 | 2.99 | 3.18 |
| 400.00 | 3.22 | 3.44 |
| 450.00 | 3.41 | 3.67 |
| 500.00 | 3.61 | 3.90 |
| 550.00 | 3.87 | 4.10 |
| 600.00 | 4.01 | 4.30 |
| 750.00 | 4.46 | 4.89 |
| 865.00 | 4.86 | 5.31 |
| 1000.00 | 5.22 | 5.74 |
| Order Informations: | ||
| Marking | HELLOSIGNAL QR-715 XXX M (or Per customer's request) | |
| Package | 1000m/Wooden Spool (or Per customer's request) | |
| Delivery time | Normally 15 days after received the deposit. | |
| More informations | please contact with us. | |
| Brand | HELLOSIGNAL® OR OEM | |
