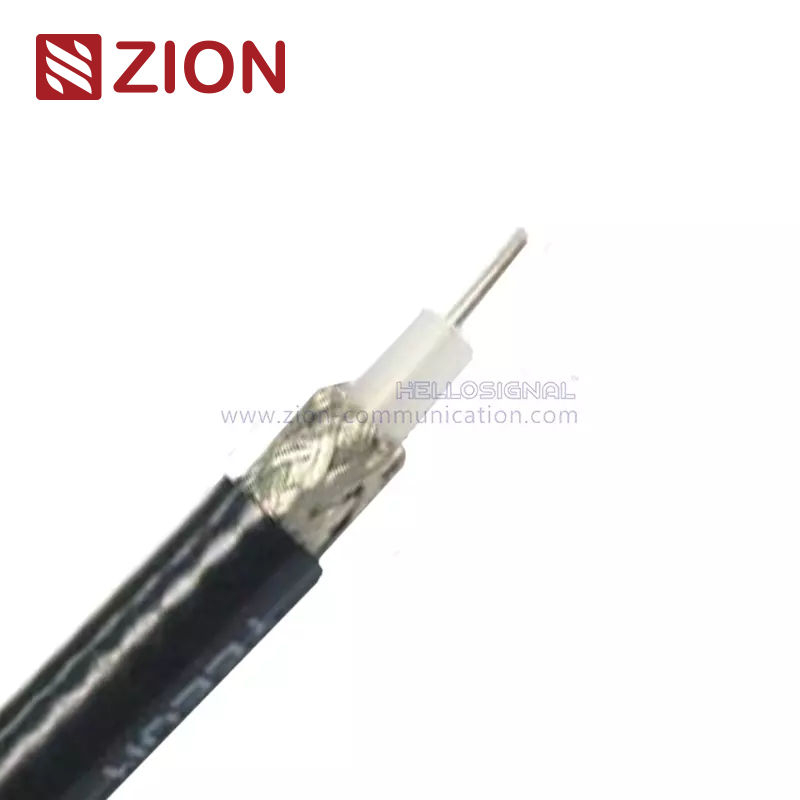

RG 223 Coaxial Cable

  • RG 223

  • hellosignal

  • XT0410

Availability:

Specification

RG 223 Coaxial Cable

Construction Parameters:
  Inner Conductor 0.90mm Silver Plated Copper
  Dielectric 2.95
  Shield Nom. 3.95mm Double Silver Plated Copper
  Jacket 5.30mm PVC (Color by your choise)

Electrical Characteristics:
  Capacitance 101.05 pF/m
  Impedance 50 Ω
  Velocity of Propagation  0.66
  Max Operating Voltage(KVMS) 1.4
  Operating Temp Range  (PVC) -25 ℃ to 70℃
  RoHS YES

Attenuation(20℃):
Frequency (MHZ)
 Max Attenuation (dB/100m)
100
 13.10
400
 26.90
1000
 44.00
3000
 81.40
5000
 109.90
11000
 177.50

Order Informations:
  Marking HELLOSIGNAL RG 214 COAXIAL CABLE  XXX M  (or Per customer's request)
  Inner Package 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request)
  Outer Package Carton, Color Box, Pallet (or Per customer's request)
  Delivery time Normally 15 days after received the deposit.
  More informations  please contact with us.
  Brand HELLOSIGNAL® OR OEM


Packing

100m roll plastic spool wooden spool
