RG11
hellosignal
XT2095
Specification

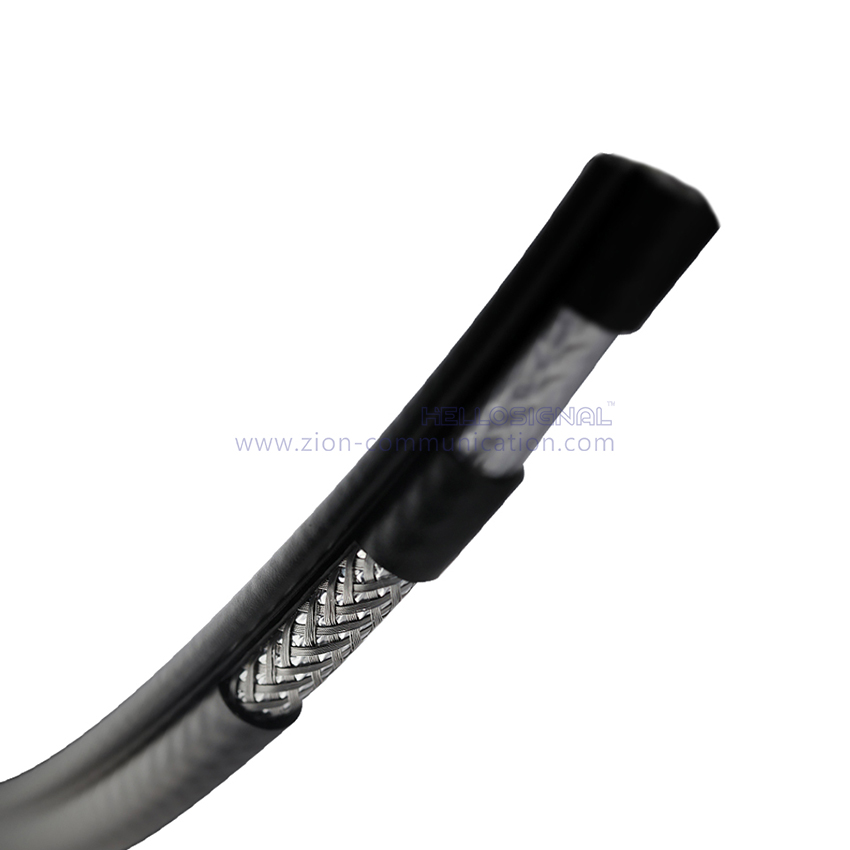

RG1160 Quad Jelly PE Messenger Coaxial Cable
| Construction Parameters: | ||
| Inner Conductor | 0.064"/1.63mm/14AWG Copper Clad Steel | |
| Dielectric | 0.280"/7.11mm Foamed PE(Gas Expanded Polyethylene) | |
| Shield 1 | 0.287"/7.29mm Bonded Aluminum Polyproylene | |
| Shield 2 | Aluminum braid wire 60% coverage | |
| Shield 3 | Aluminum Laminated Tape(Non-bonded) | |
| Shield 4 | Aluminum braid wire 40% coverage | |
| Jacket | 0.407"±0.006"/10.34±0.15mm PE(Jelly Flooded For Underground) | |
| Jacket Thickness | 0.037"/0.94mm | |
| Messenger | 0.083"/2.11mm | |
| Minimum Breaking Strength | 487lbs./221kg | |
| Application | For Use in Longer CATV Run Lengths | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance | The Max. at 20℃ shall be < 87 Ω/km < 26.53 Ω/1000ft | |
| Capacitance | 52 ±3 pF/m 15.85 ±1 pF/ft | |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.85 | |
| Sparker Test (VAC) | 4 | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.38 | 1.25 |
| 55 | 0.96 | 3.15 |
| 83 | 1.18 | 3.87 |
| 187 | 1.75 | 5.74 |
| 211 | 1.90 | 6.23 |
| 250 | 2.05 | 6.72 |
| 300 | 2.25 | 7.38 |
| 350 | 2.42 | 7.94 |
| 400 | 2.60 | 8.53 |
| 450 | 2.75 | 9.02 |
| 500 | 2.90 | 9.51 |
| 550 | 3.04 | 9.97 |
| 600 | 3.18 | 10.43 |
| 750 | 3.65 | 11.97 |
| 865 | 3.98 | 13.05 |
| 1000 | 4.35 | 14.27 |
| Mechanical and Environmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range (PVC) | -20 ℃ to 60 ℃ | |
| Cable diamensions | 0.41''±0.006''/10.39±0.15 mm PVC | |
| Order Informations: | ||
| Marking | HELLOSIGNAL KT2095 RG11 60% Bonded 40% Non.Bonded Jelly PE Messenger CATV COAXIAL CABLE ××× M/FT | |
| Package | 500FT/Pull Box, 1000FT/Wooden Spool, Pallet | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
