18AWG 4/C SOL FPL-CL2 Fire Alarm Cables

Cable construction :

Conductor:

18AWG Solid Bare Copper

Nom.Dia:0.04''(1.02mm)

Dielectric:

Type: Polypropylene

Dia.over Dielectric: 0.058±0.004''nom.(1.47±0.10mm)

Color Code:

1.Blk

2.Red

3.Ylw

4.Grn

Jacket:

Type: PVC

Color: Red

Dia.over Jacket: 0.170''±0.006''(4.32±0.15mm)

Print Legend:

HELLOSIGNAL NO.7110007 18AWG 4C 60C E××××××(UL) FPL-CL2

SUN RES(ROHS) ××××M/FT DEVICE/ZONE

 A B C D E F 1 2 3 4 5 6 7 8 9

Electrical Properties :

Temperature Rating

-20℃ ~ +60℃

Operating Voltage

300 Volts max

Capacitance

20 pf/ft nom

Impedance

81 Ohms nom

DC Resistance

6.5 Ohms/M' at 20℃

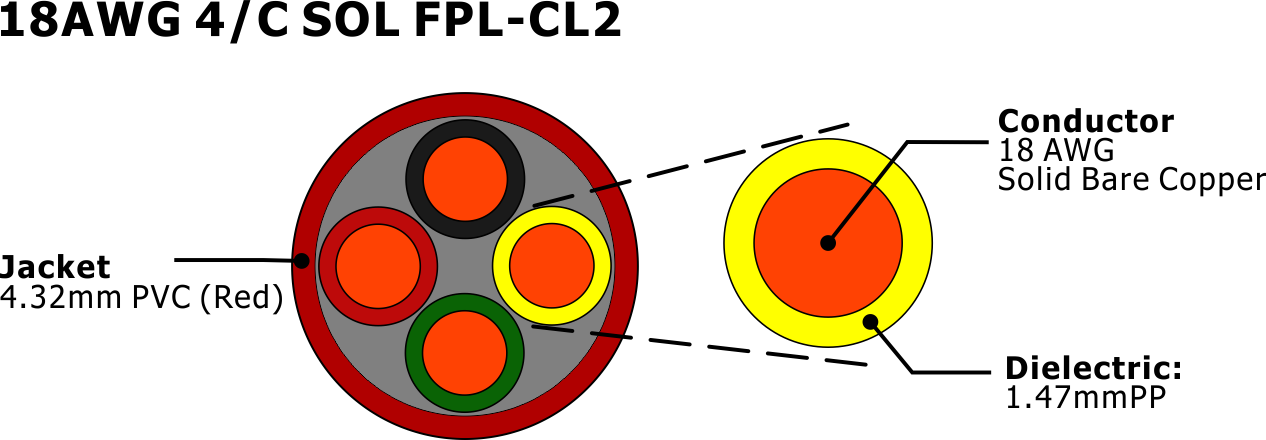

Cross Section :

Order Informations :

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet...

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
