GYTA 4 Cores OM3 50/125

Technical Parameters

Cable Code

GYTA

Fiber Count

4

Cable Diameter

9.7 (mm)

Cable Weight

90(kg/km)

Tensile Strength Long/Short term

600/1500(N)

Crush Resistance Long/Short term

300/1000(N/100mm)

Bending Radius Static/Dynamic

10D/20D(mm)

Storage/Operating Temperature:-40℃to+70℃

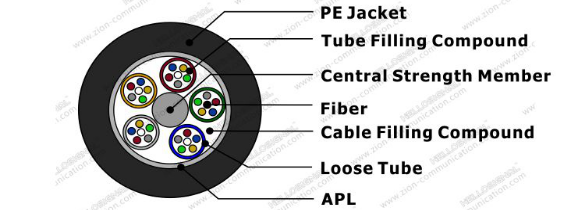

Cross Section

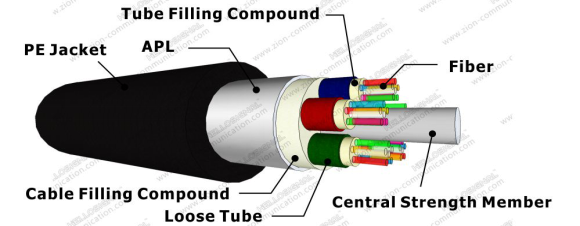

Description

The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a
water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high
fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around
the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is
applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the
cable is completed with a PE sheath.

Characteristics

Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection of fiber;
Specially designed compact structure is good at preventing loose tubes from shrinking;
PE sheath protects cable from ultraviolet radiation;
The following measures are taken to ensure the cable watertight:
(1)Steel wire used as the central strength member;
(2)Loose tube filling compound;
(3)100% cable core filling;
(4)APL moisture barrier

Standards

GYTA cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Order Informations

Marking

HELLOSIGNAL GYTA 4 Cores OM1 62.5/125 xxxxM
(or Per customer's request)

Inner Package

2000m/Spool (or Per customer's request)

Outer Package

Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL®  OR OEM
