GYTZA Flame-retardance Stranded Loose Tube Optical Cable

  • Stranded Loose Tube

  • Fire-Resistance

Availability:

Product Description


GYTZA                                                                                            Flame-retardance Stranded Loose Tube Optical Cable for Railway Transportation

Introduction:

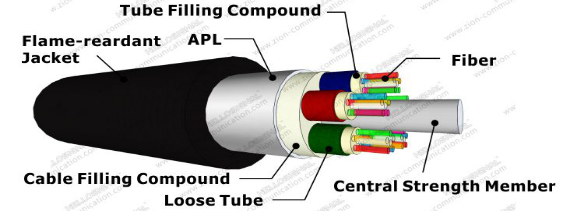

Optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a metallic central strength member to form a cable core. The core is armored with laminated aluminum tape. Then, a LSZH outer sheath is extruded.



























Features:

Accurate process control ensuring good mechanical and temperature performances
The material of loose tubes with good hydrolysis resistance and relatively high strength
LSZH sheath ensuring good flame-retardant performance
Water resistance of optical cable is ensured by the following measures
Special water-blocking compound filled in loose tubes
Laminated aluminum tape armor
Water-blocking material ensuring longitudinal water resistance



























Product Series:

GYFZY

Non-metallic+Fire-Resistant Layer+Flame-Retardant Sheath

GYTZA

Single APL Armor+ Single Flame-Retardant Sheath

GYTZA53

Single APL+Single PSP Armor+Double Flame-Retardant Sheaths

GYZS

Single Fire-Resistant Layer+ Single PSP armor+ Single Flame-Retardant Sheath

GYZS53

Double Fire-Resistant Layers+Double PSP armors+Double Flame-Retardant Sheaths

GYZS53+33

Double Fire-Resistant Layers+Double PSP+Single Steel Wire Armor+3 Flame-Retardant

GYFZA04+33

APL+Steel Wire armor+Fire-Resistant Layer+Anti-Termite Layer+Flame-Retardant Sheath

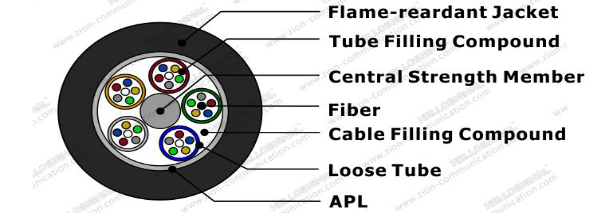

Cross Section:

GYTZA-2

1,Fibre  2,Loose Tube  3,Tube Filling Compound  4,Strength Member  5,APL  6,PE Layer  7,Cable Filling Compound  8,LSZH Sheath




























Technical Characteristics:

Type

Diameter
mm

Weight
(kg/km)

Unit

Tensile strength
Long/short term
(N)

Crush
Long/short term
(N/100mm)

GYTZA-2-30Xn

9.2

85

5

600/1500

300/1000

GYTZA-32-36Xn

10.2

107

6

600/1500

300/1000

GYTZA-38-60Xn

10.4

110

6

600/1500

300/1000

GYTZA-62-72Xn

11.4

130

6

600/1500

300/1000

GYTZA-74-96Xn

13.6

165

8

600/1500

300/1000

GYTZA-98-120Xn

14.8

195

10

600/1500

300/1000

GYTZA-122-144Xn

16.4

236

12

600/1500

300/1000

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.


Environmental Characteristics:

  Transport/storage temperature: -40~70


Delivery Length:

 Standard length:2000m;Other length availabe
