RG59 Golden 75 Ohm CCTV coaxial Cable

  • RG59
  • HELLOSIGNAL
  • 7100175
  • Coaxial Cable
  • 75 ohm
  • UL, ETL, CE, RoHS
  • 100m, 305m,500m,1000m,500ft,1000ft
  • roll, wooden spool, carton, pallet
  • 30KM
  • Normally 15 working days
  • NINGBO, SHANGHAI
  • T/T, L/C at sight, D/P at sight

Product Description

Construction Parameters:
Inner Conductor 0.58mm BC
Dielectric 3.7±0.05mm Solid PE
Shield 1 Golden Color AL/PET FOIL
Shield 2 0.12mm/34AWG Copper Clad Aluminum(85%)
Jacket 6.00±0.15mm PVC
Application For Use in Longer CCTV Run Lengths, POC
Electrical Characteristics:
Inner Conductor Resistance 66 Ohms/KM at 20
Capacitance 67±2 pF/m
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.66
Sparker Test (VAC) 3

Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20  to 65
Cable diamensions 6.00±0.15mm PVC

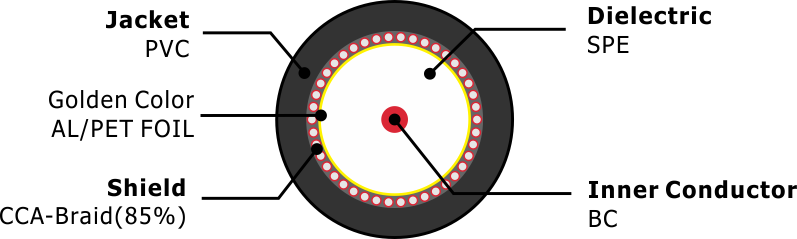

Cross Section
 RG59 Golden 75 Ohm CCTV coaxial Cable

Attenuation(20℃):
Frequency (MHZ) Max Attenuation (dB/100m)
5 2.4
50 7.5
100 10.6
300 18.3
450 22.5
865 31
1000 33.5

Order Informations:
Marking HELLOSIGNAL RG59 Golden CCTV COAXIAL CABLE 7100175 ×××M/FT
Package 100m/Spool,300M/Wooden Spool,500M/Wooden Spool
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
