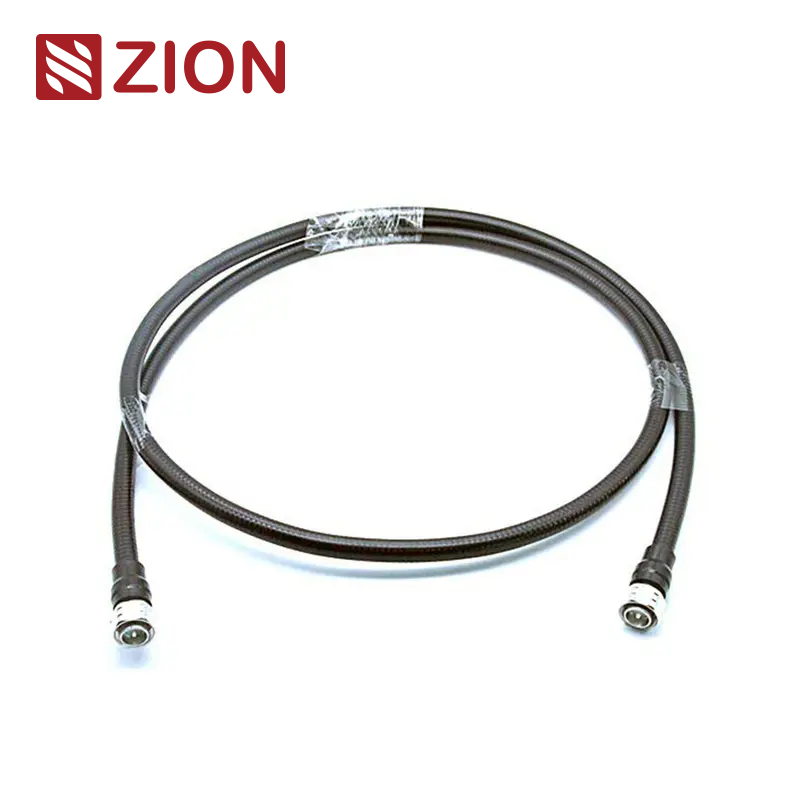

Super Flex Jumper Cable
HELLOSIGNAL
50ohm coax cable
50 ohm
Normally 15 working days
NINGBO, SHANGHAI
Availability: | |
---|---|
Product Description
1/2" Superflex Jumper, | |||
Cross Section: | |||
Interface: | |||
According to | IEC 61169-54 | ||
Electrical: | |||
Characteristic Impedance | 50 ohm | ||
Freqency Range | DC-4GHz | ||
VSWR | ≤1.12(0-3GHz) | ||
≤1.15(0-4GHz) | |||
PIM (@2-tonex20w) | ≤-160dBc | ||
Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level | ||
Dielectric Resistance | ≥5000MΩ | ||
Contact Resistance | Center Contact ≤1.0mΩ | ||
Outer Contact ≤1.0mΩ | |||
Mechanical: | |||
Durability | Mating cycles ≥100 cycles | ||
Material and plating: | |||
Material | Plating | ||
Body | Brass | Tri-alloy | |
Insulator | PTFE | - | |
Center conductor | Phosphor bronze/Brass | Ag | |
Others | Brass | Ni | |
Environmental: | |||
RoHS-compliance | Full RoHS compliance | ||
Temperature Range | -60℃~+85℃ | ||
Watertightness | IP6 | ||
Salt-fog test | 96h |
