Zion communication is a network cable manufacturer and cable solutions supplier provides network cables from short-run applications to the most critical long-distance Application Our network cables offer optimum performance for main distribution use in
data center systems where extended cable runs are required.
Copper Ethernet Trunk Cables
Description
ZION pre-terminated copper trunk cables provide a quick plug-and-play solution for links in the entire data center solution. They are ideal for environments with frequent moves, adds, and changes, offering fast and efficient installation of multiple point-to-point connections. These trunks can offer significant benefits over terminating twisted-pair cable in the field. Various pre-terminated copper trunk cables are available in UTP CAT5E, UTP CAT6, and S/FTP CAT6a construction with different termination types, such as jack-to-jack, jack-to-plug, and plug-to-plug.
Technical Specifications
●Available in variable bundle sizes of 6, 8, or 12 cores depending on your inquiry; ●CAT 6a, CAT 6, and CAT 5e UTP, FTP and S/FTP cable constructions; ●Level: Plenum, Riser, LSZH, Dca, Eca CPR rating ●End: Jack to Jack, Plug to Plug, Jack to Plug ●Custom lengths in 0.50-meter increments. Total trunk length shall not exceed ANSI/TIA standards; ●Unique identification number on the label at the end and each cable shall be numbered relative to the identification number; ●Out Jacket: PVC/LSZH or braiding material ●Copper trunks shall be designed and manufactured to conform to the requirements of the structured cabling wiring standards ISO/IEC 11801-1, EN 50173-1, TIA 568 and the data center cabling standards ISO/IEC 11801-5,ISO/IEC 22237-5, EN 50600-2-4, EN 50173-5, and TIA 942.
Special Features
●Fast and easy installation with a 75% reduction in labor costs ●Braided sleeve binding and optional pulling eye ensure snag-free installation. ●Plugs feature a clear SlimLine design, which includes a Snagless strain-relief boot (available for CAT 6A, CAT 6, and CAT 5e) ●Cable assemblies are 100% factory-tested, with test results available for each link.
Application
●Data Center Cabinets ●Telecommunications Racks ●Quick Network Deployment ●Termination Types and When To Use Them
The termination type of the cable assembly depends on the layout of the data center or TR room and the design philosophy employed. It would help if you considered the accessibility of the active equipment and to what extent patching will be used.
●Jack-to-Jack – Requires the use of empty patch panels on each end. Patch cords would then be used to complete the channel between active equipment and the physical layer. Many users prefer to employ cross-connects instead of direct connections. Active equipment is expensive and can be very delicate. To minimize the potential for trouble, functional equipment may be installed in a locked cabinet, with panels accessible in a nearby two-post rack.
●Jack-to-Plug – Eliminates one cross-connect point by having the cable plug directly into the active equipment (i.e. switches). The jack termination snaps into an empty panel, which would then be patched to other active equipment or work area ports as necessary.
●Plug-to-Plug – Used to make a direct connection between active equipment (e.g. server to switch), eliminating cross-connect capabilities. It also can be used in an open-space work area as a bundled patch cord group.
●UTP CAT 5e trunk cable UTP CAT5E Plug to Plug trunk cable UTP CAT5E Jack to Jack trunk cable UTP CAT5E Plug to Jack trunk cable

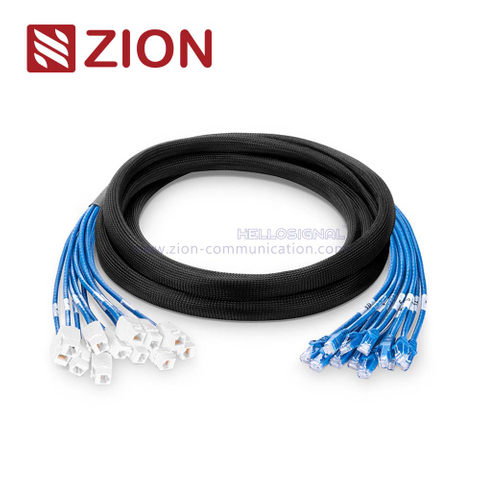

●UTP CAT 6 trunk cable UTP CAT 6 Plug to Plug trunk cable UTP CAT 6 Jack to Jack trunk cable UTP CAT 6 Plug to Jack trunk cable

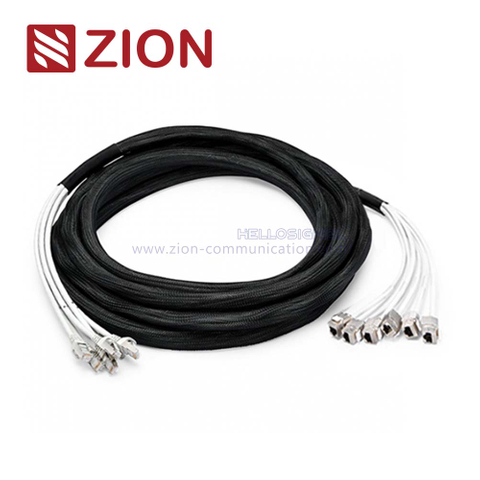

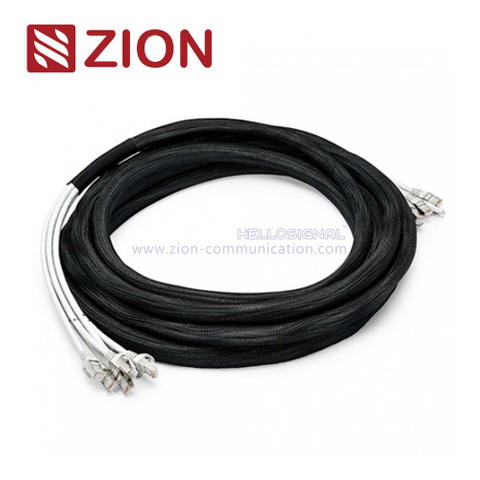

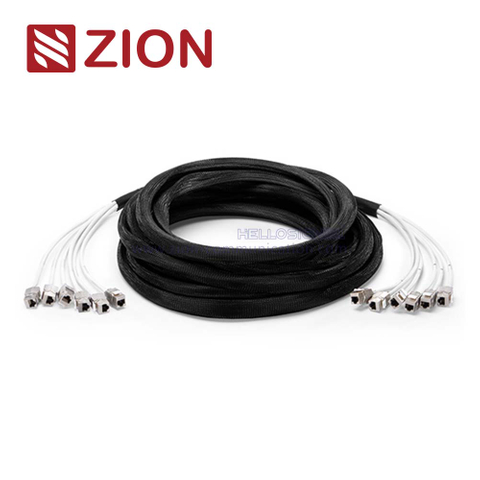

●S/FTP CAT 6a trunk cable S/FTP CAT 6a Plug to Plug trunk cable S/FTP CAT 6a Jack to Jack trunk cable S/FTP CAT 6a Plug to Jack trunk cable
