Aerial optic fiber cables are a type of optical fiber cables specifically designed for installation above ground, typically suspended between poles or towers.
This method of installation is commonly used in telecommunications networks for longdistance and local loop (last mile) connections.
Here are some key characteristics and considerations for aerial optic fiber cables:
Design for Aerial Environment:
These cables are designed to withstand environmental factors such as wind, ice, and UV radiation from the sun.
They often have features like UV-resistant sheaths and additional strength members to cope with the physical stresses of being suspended. Strength Members:
To support the cable's weight and maintain tensile strength, aerial fiber cables often incorporate materials like steel wire, FRP (Fiber Reinforced Plastic), or aramid yarn. These strength members prevent the cable from sagging or breaking under its own weight or due to environmental loads.
Types of Aerial Fiber Cables

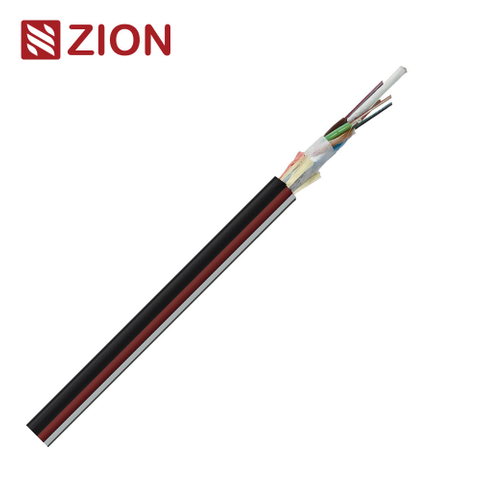

All-Dielectric Self-Supporting (ADSS):
ADSS cables are designed to be strong enough to support themselves without the need for additional steel wires or messenger cables. They are often used in environments where installing ground-based infrastructure is difficult or costly. Figure-8 Cables:
These cables have a built-in steel messenger wire that runs along the top of the cable, giving it a “figure-8” appearance in cross-section. The messenger wire provides additional support and is used to attach the cable to poles. Lashed Cables:
In this approach, a standard fiber optic cable is lashed to a separate steel messenger wire using a cable lashing machine. This method is often used to retrofit fiber optic lines onto existing aerial infrastructure.
Types of Figure-8 aerial optic fiber cable
Figure 8 aerial cables are the most commonly-used aerial fiber optic cables. And it can be divided into following main types:

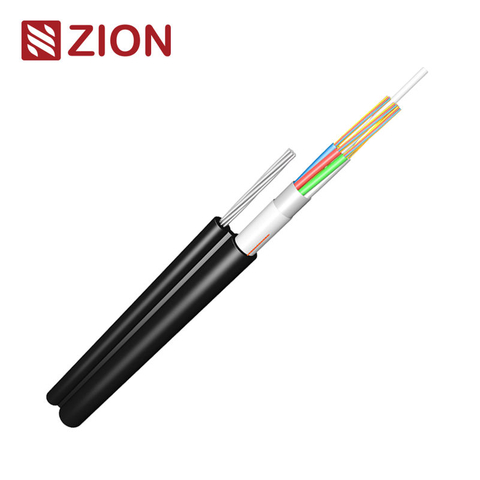

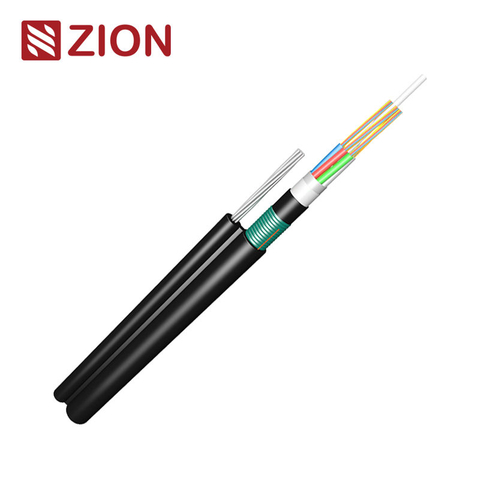

GYAXTC8Y, GYFC8S, GYFC8Y, GYFX8T53, GYFTC8A, and GYXTC8S.

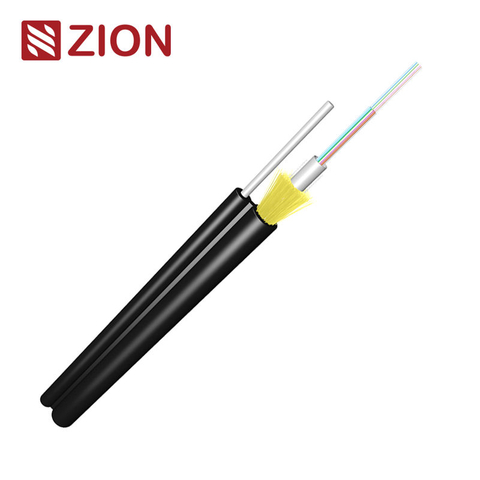

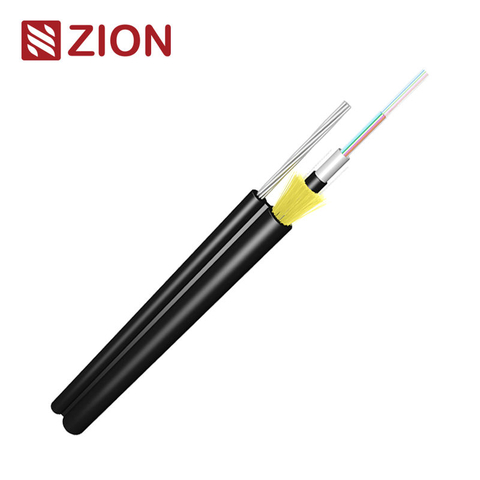

GYAXTC8Y :

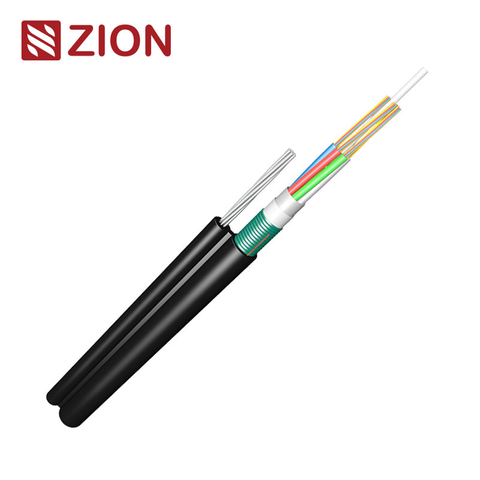

Figure-8 Steel wire Self-supporting Uni-tube with Aramid Yarns Fiber Optic Cable for Networks in Rural Areas Vast Countryside GYFC8S:
Selecting the suitable aerial fiber optic cable for your installation is a critical decision that can significantly affect your network's performance, durability, and overall success. Let's delve into the factors you should consider when choosing an aerial fiber optic cable:
Cable Specifications and Performance Requirements
Fiber Count:
Determine the number of fibers required for your network's present and future needs, considering bandwidth demand and scalability. Bandwidth Capacity:
Assess the necessary bandwidth to fulfill your network's requirements, focusing on data transfer rates, latency, and application types. Fiber Type:
Opt for the suitable fiber type (single-mode for long distances, multi-mode for shorter distances), considering factors like transmission distance and signal attenuation.But most popular is G.652.D
Environmental Factors and Weather Resistance
UV Resistance: Ensure the cable can withstand UV radiation, as sunlight exposure can degrade performance. UV-resistant materials are essential for durability. Moisture Resistance: Select cables with practical moisture barriers, especially if the environment is damp, to prevent signal degradation or damage. Temperature Range: Choose cables that can endure the temperature extremes of the installation area, ensuring consistent performance.
Strength and Durability for Long-Term Installations
Tensile Strength:
Evaluate the necessary tensile strength, considering span length, wind load, and cable weight. Mechanical Protection:
The cable should have robust protective sheathing and, if needed, armor to withstand external forces. Rodent Resistance:
Opt for cables with rodent-resistant features in rodent-prone areas to prevent damage.
Compatibility with Existing Infrastructure and Hardware
Connector Types:
Confirm that the cable's connectors match your existing network equipment, considering common types like LC, SC, or ST. Mounting Hardware:
Ensure compatibility with aerial installation hardware, including clamps, suspension devices, and messenger wires. Splicing and Termination Compatibility:
The cable should be compatible with your network's splicing and termination methods, whether it's fusion splicing or mechanical connectors.
Additional Considerations
Installation Ease:
Consider how easy the cable is to install. Some cables are more flexible or have features that simplify installation. Regulatory Compliance:
Ensure the cable meets industry standards and regulations, such as those set by the ITU, IEEE, or relevant local authorities. Budget and Cost-effectiveness:
Balance performance requirements with cost, considering initial investment and long-term maintenance and repair costs.
By thoroughly evaluating these factors, you can choose an aerial fiber optic cable that meets your current network requirements and is scalable and robust enough to handle future demands and environmental challenges.
