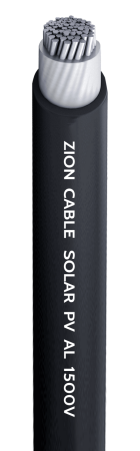

7194301 Solar Aluminum Alloy Conductor Cable-8.1mm² (TUV standard)

General characteristics:

Application:

The cables are suitable for use in class II equipment as defined in IEC 61140.
We suggest using this type to insead of 4 sqmm or 6 sqmm copper conductor solar cable.

Advantage:

Aluminum wire is lighter and more manageable than copper, and can be easier to install, especially for long-distance runs. Aluminum has a much lower scrap value than copper, making it less attractive to thieves. In some configurations, the ‘loaded costs’ of aluminum PV wire (including infrastructure and labor)  can be less than copper.

Cable Construction：

Conductor

Metarial：

Aluminum Alloy

Nom.Size(mm²) :

1*8.1

Shape

Class 5 in accordance with annex A

Construction(N/mm) :

67/0.41

Conductor(Dia./mm) :

4.00 (Ref.)

Max.D.C.Resistance at 20℃：

3.38 Ohm/KM

Insulation

120℃ XLPE/XLPO

Nom. thickness (mm) :

0.8 (Ref.)

Standard diameter (mm) :

5.4±0.10

Colour:

NATURAL

Resistance:

512 Mega Ohm/KM at 20℃

Jacket

120℃ XLPE, Black

Min. thickness (mm) :

0.7

Nom. thickness (mm) :

0.9 (Ref.)

Outer diameter (mm) :

7.20±0.1

Approx Net Weight

67 KGS/1KM

Making

2 PfG 2642 PV1500DC-AL-K 1×8.1mm²  120℃
HALOGEN  FREE  LOW  SMOKE  ZION

Electrical properties

Rated Voltage:

DC 1500V

Max. permitted Voltage

DC 1800V

Ambient Temperature:

-40℃~+90℃

Thermal Index:

120℃ for 20000h

Fire Performance:

IEC/EN 60332-1-2

Halogen-free

Yes

Resistance to chemical and oils:

EN 50618

Service life:

＞25 years ( -40℃~+90℃)

Temperature:

-40~90℃

Conductor resistance (20℃):

2.89Ω/km

Insulation resistance (70℃):

512 MΩ/km

Speak voltage(V/5min)

AC 6500V or DC 15000V

Min bending radius(mm)

10*D

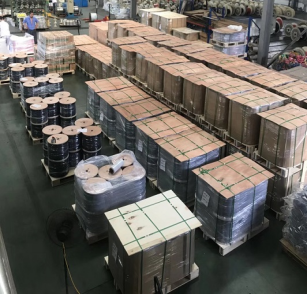

Package：

Standard packing length:

1000 Mtrs ± 5%

Cable and sealing:

Yes with end caps

Non. Standard length

10%-20% QUANTITY TO BE SUPPLIED IN NON STD.LENGTHS.

Order Quantity Tolerance

± 5%
