F Type RG6 Cable

Cable Construction Parameters:

Inner Conductor

0.040"/1.02mm/18AWG CCS

Dielectric

0.180"/4.57mm Foamed PE

Shield 1

0.187"/4.75mm Bonded Aluminum Polyproylene

Shield 2

Aluminum braid wire 60% coverage

Jacket

0.268"±0.006"/6.81±0.15mm PVC

Jacket Thickness

0.030"/0.76mm

Application

For Use in Longer CATV Run Lengths

Cable Electrical Characteristics:

Inner Conductor
Resistance

The Max. at 20℃ shall be
<  87 Ω/km  26.6Ω/1000ft

Capacitance

52 ±3 pF/m         15.9 ±0.9 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Cable Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

0.268"±0.006"/6.81±0.15mm PVC

※Customized customer specifications are accepted.

Order Informations:

Marking

HELLOSIGNA RG6 S 60% CM
CATV COAXIAL CABLE 7100003 ×××M/FT

Length (FT)

1,2,3,...100FT

Length (M)

0.25m,0.5m,1m,...,100m

Delivery time

Normally 30 days after received the deposit.

Brand

HELLOSIGNAL^TM OR OEM

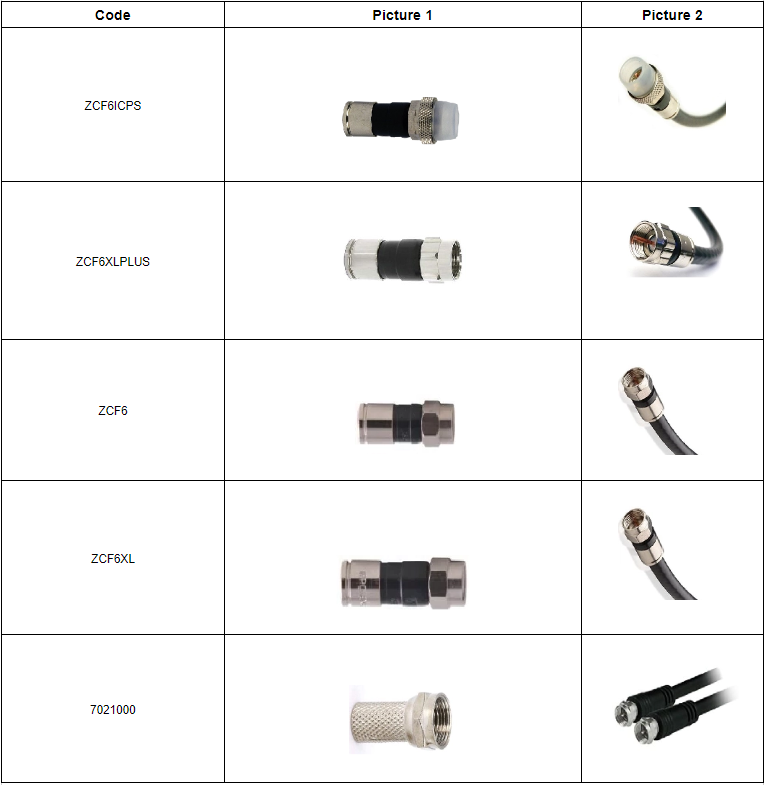

F Connector types:

Code

Picture 1

Picture 2

ZCF6ICPS

ZCF6XLPLUS

ZCF6

ZCF6XL

7021000
