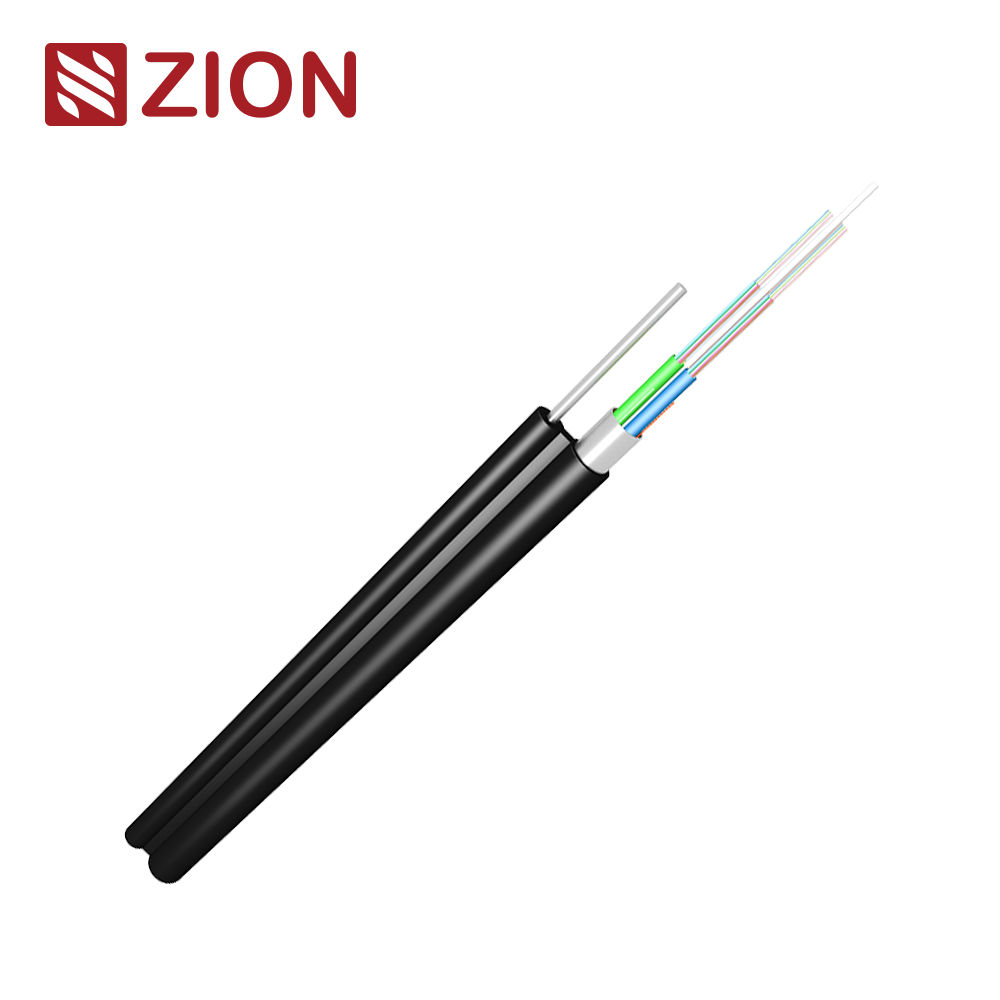

GYFC8A-3U 3-Unit Tube with Fibers FRP Strength APL Tapes Figure-8 Steel wire Self-supporting Micro Optical Cable

GYFC8A-3U                                                                                          3-Unit Tube with Fibers FRP Strength APL Tapes Figure-8 Steel wire Self-supporting Micro Optical Cable

Introduction:

Optical fibres are housed in 3 loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes are stranded around the central strength member to form a cable core.The core is surrounded with water blocking yarns and armored with laminated aluminum tape.A steel wire is applied as the messenger. Finally,a figure-8 PE sheath is extruded.This type of cable is typically applicable to self-supporting aerial installation.

Features:

 Figure-8 design,easy for self-supporting aerial installation,reducing installation costs
 Good mechanical and temperature performances
 Small size,light weight and soft, easy for installation
 Applicable to short distance self-supporting aerial installation

Product Series:

1

Feeder segment

GYTA/GYTS

Stranded Loose Tube

2

Distribution segment

GYAXZY

Uni-tube Aramid LSZH Sheath

GYGXZY

Uni-tube Glass Yarn PE Sheath

GTJGA

Slotted TBF APL CSM

GYFXBY

Flat-shape & Self-supporting Uni-tube

GYAXTC8Y

Figure-8 Self-supporting Uni-tube Aramid

GYFC8A-3U

 3-Unit FRP APL Figure-8 Self-supporting

3

Drop segment

GJXH

Bow-type drop cable

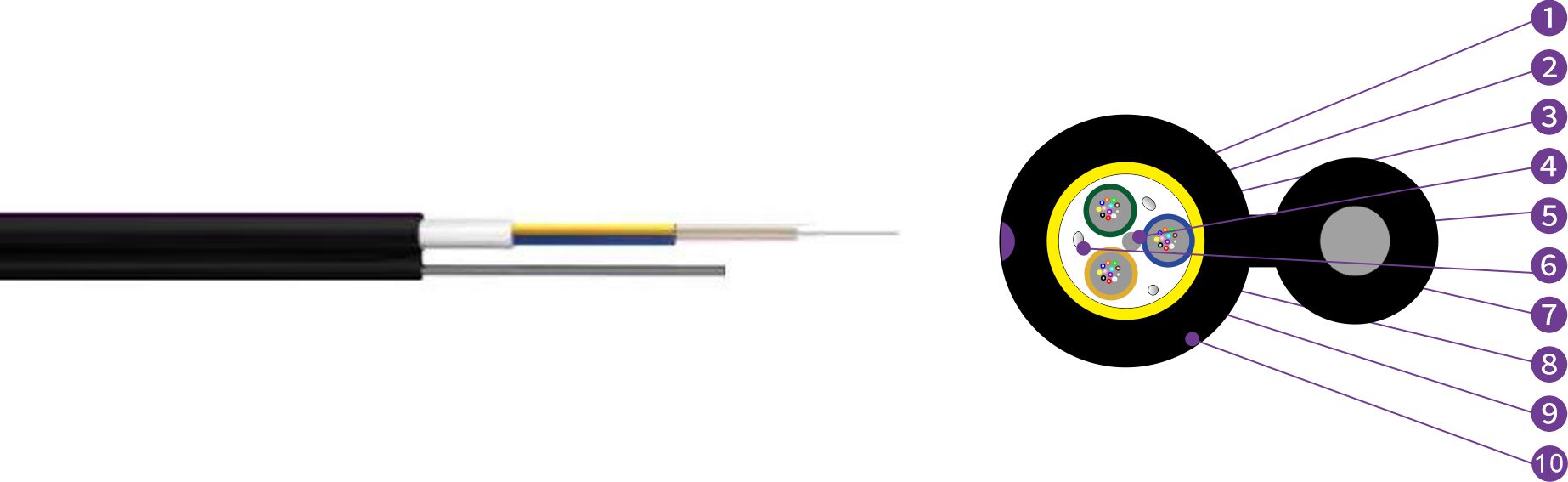

Cross Section:

1,Fiber  2,Stripe  3,Loose Tube  4,FRP  5,Tube Filling Compound   6,Water  Blocking Yarn  7,Steel Wire  8,APL  9,PE Sheath  10,Ripcord

Technical Characteristics:

Type

Diameter
mm

Weight
(kg/km)

Diameter wires

Tensile strength
Long/short term
(N)

Crush
Long/short term
(N/100mm)

GYFC8A(3U)-02-12Xn

7.5*12.5

62

1.6

600/1500

300/1000

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

Environmental Characteristics:

  Transport/storage temperature: -40℃~70℃

Delivery Length:

 Standard length:2000m;Other length availabe
