Specification

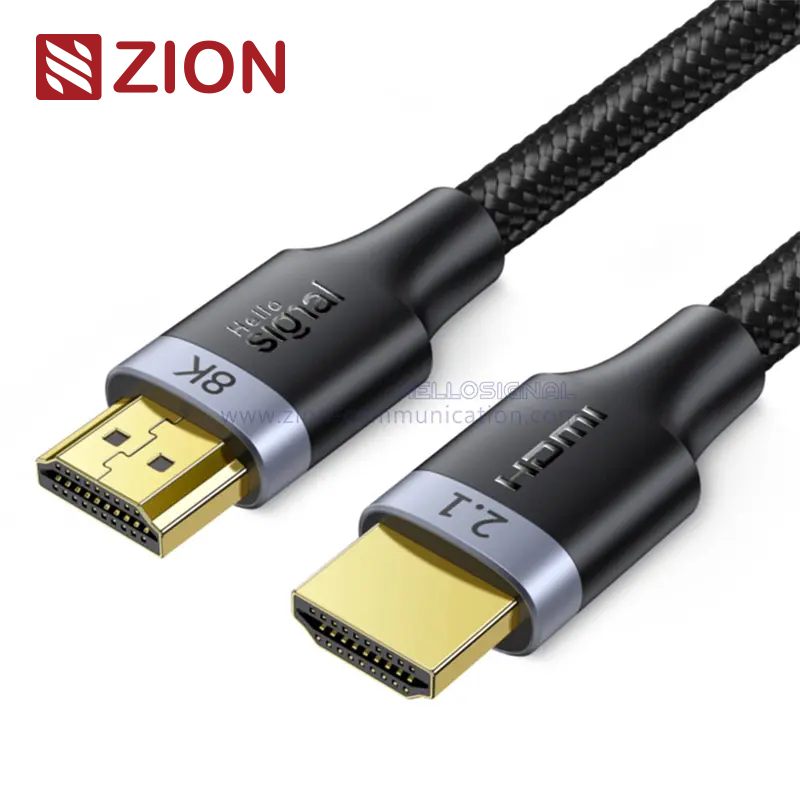

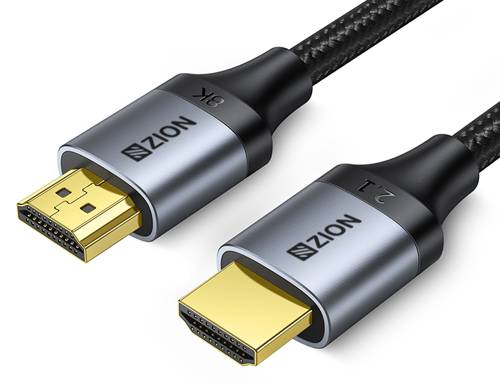

HDMI 2.1 8K Cable | |||||||
Description | |||||||
|
| ||||||
Features: | |||||||
Maximum bandwidth up to 48Gbps |  | ||||||
3D Video | |||||||
8K/60Hz, 4K/120Hz | |||||||
High Dynamic Range (HDR) Static and Dynamic | |||||||
Variable Refresh Rate (VRR) | |||||||
Quick Media Switching(QMS) | |||||||
Auto Low Latency Mode(ALLM) | |||||||
Support for advanced audio features such as DTS-HD, Dolby TrueHD & Dolby ATMOS | |||||||
| |||||||
Broad Compatibility | |||||||
 | |||||||
Specification: | |||||||
General | |||||||
Length | 0.5m - 10m | ||||||
Resolution | 7680×4320 | 3840×2160 | 2048×1080 | ||||
Refresh Rate | 60Hz | 120Hz/60Hz | 144Hz | ||||
HDMI Version | 2.1 | 2.0 | 1.4 | ||||
Bandwidth | Up to 48 Gbps | ||||||
Tone Quality | 32 Audio Channels | ||||||
Display screen | 21:9 cinemascope | ||||||

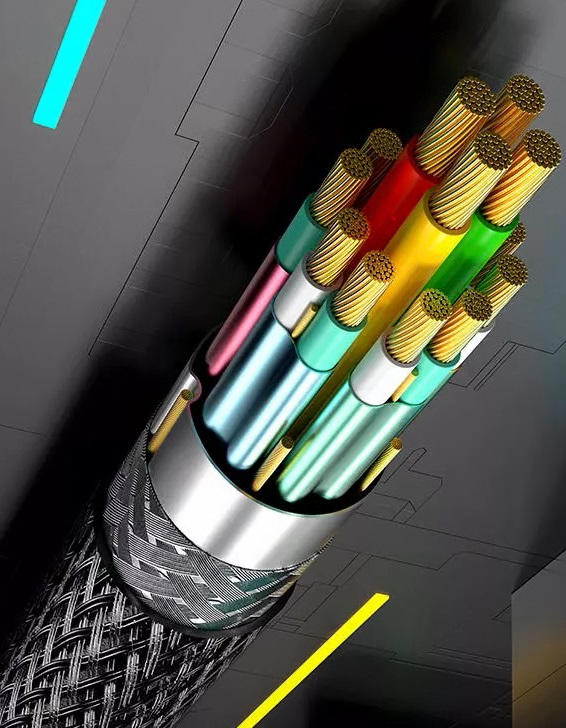

Cable details | |||||||
Conductor Matterial | Tinned Copper |
| |||||
Conductor Gauge | |||||||
No. of conductors | 19+1 | ||||||
Shielding | Aluminum Foil | ||||||
TC Braid | |||||||
Drain Wire | Tinned Copper | ||||||
OD of Jacket | 0.5M - 2M: 6.8mm | ||||||
3M - 5M: 7.3mm | |||||||
Jacket Matterial | PVC (Polyvinyl chloride) | ||||||
Jacket Color | Black | ||||||
Braiding | Fibre | ||||||
Connector details | |||||||
Connector Plating | 24K Gold | ||||||
Connector Type | HDMI (19pin) | ||||||
Male to Male | |||||||

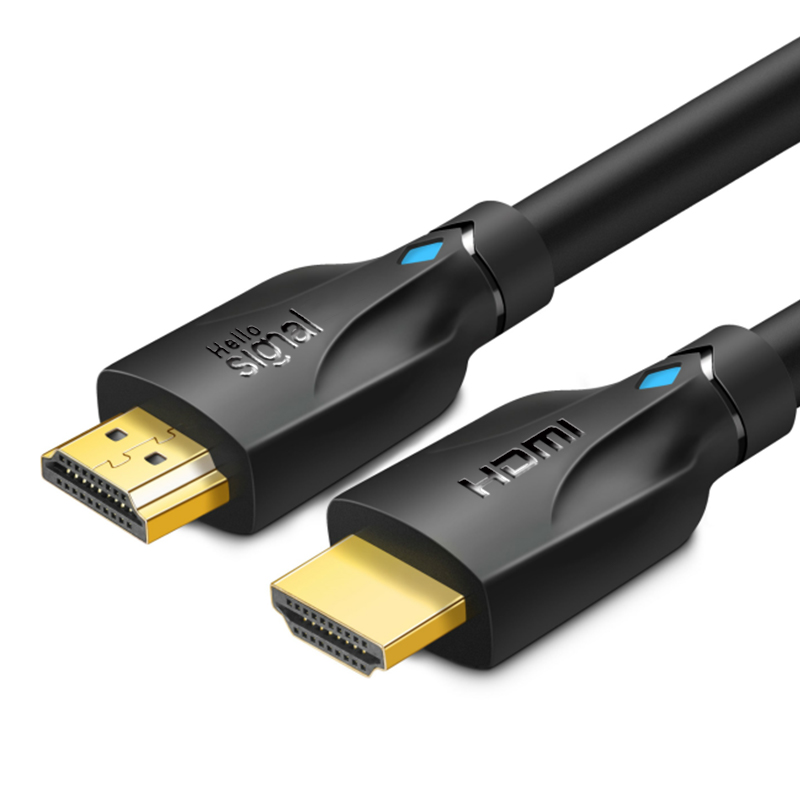

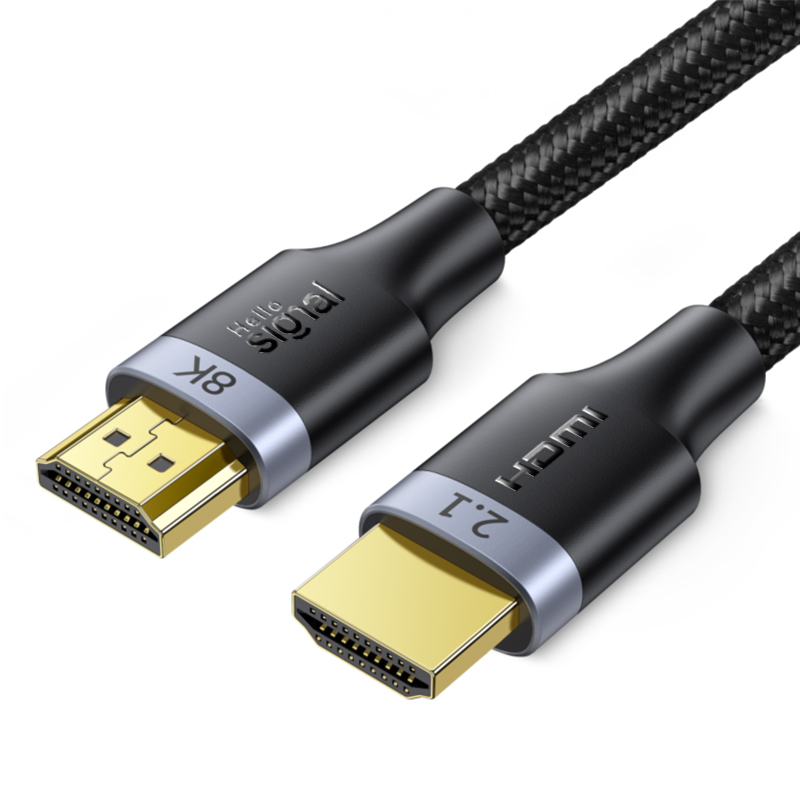

ZC122 | ZC128 | ||||||
|
| ||||||
Model List | |||||||
Zion Code | Description | ||||||
H21C005-ZC122 | HDMI 2.1 CABLE 0.5M ZC122 Connector 8K/60Hz 48 Gbps | ||||||
H21C010-ZC122 | HDMI 2.1 CABLE 1M ZC122 Connector 8K/60Hz 48 Gbps | ||||||
H21C015-ZC122 | HDMI 2.1 CABLE 1.5M ZC122 Connector 8K/60Hz 48 Gbps | ||||||
H21C020-ZC122 | HDMI 2.1 CABLE 2M ZC122 Connector 8K/60Hz 48 Gbps | ||||||
H21C030-ZC122 | HDMI 2.1 CABLE 3M ZC122 Connector 8K/60Hz 48 Gbps | ||||||
H21C050-ZC122 | HDMI 2.1 CABLE 5M ZC122 Connector 8K/60Hz 48 Gbps | ||||||
OEM/ODM service for you | |||||||
ZION Communication has rich expiriences in producing OEM/ODM cases | |||||||
• Customized Logo on Plug & Boot | |||||||
• Printing on Cable | |||||||
• Label/PE bag/Carton design | |||||||
• Different Color & Different Lengths Available | |||||||
• Different Molding/Strain Relief | |||||||

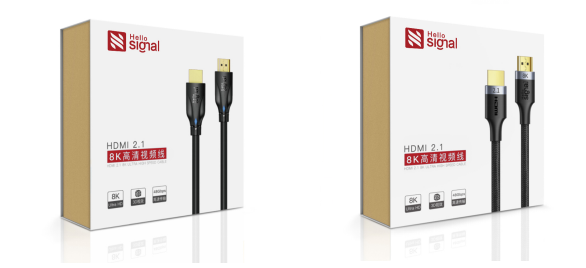

Packing | |||||||
Production Process Flow
#1 Insulation Line
#2 Twisting
#3 braiding
#4 Jacket Line
#5 Connector Making
Accessories
| HDMI Connector Type A | |||||
| The plug (male) connector outside dimensions are 13.9 mm × 4.45 mm, and the receptacle (female) connector inside dimensions are 14 mm × 4.55 mm. There are 19 pins, with bandwidth to support all SDTV, EDTV and HDTV modes. It is electrically compatible with single-link DVI-D. | |||||
| HDMI Connector Type C | |||||
| This Mini connector is smaller than the type A plug, measuring 10.42 mm × 2.42 mm but has the same 19-pin configuration. It is intended for portable devices.The differences are that all positive signals of the differential pairs are swapped with their corresponding shield, the DDC/CEC Ground is assigned to pin 13 instead of pin 17, the CEC is assigned to pin 14 instead of pin 13, and the reserved pin is 17 instead of pin 14.The type C Mini connector can be connected to a type A connector using a type A-to-type C cable. |
