NO.7100202 RG11 S 60% Jelly PE

Construction Parameters:

Inner Conductor

0.064"/1.63mm/14AWG CCS

Dielectric

0.280"/7.11mm Foamed PE

Shield 1

0.287"/7.29mm Bonded Aluminum PET

Shield 2

Aluminum braid wire 60% coverage

Flooding Compound

Jelly

Jacket

0.400"±0.006"/10.16±0.15mm PE Jelly

Jacket Thickness

0.042"/1.07mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be <  38 Ω/km

<  11.59 Ω/1000ft

Capacitance

52 ±3 pF/m    15.85 ±1 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

0.40''±0.006''/10.21±0.15 mm PE

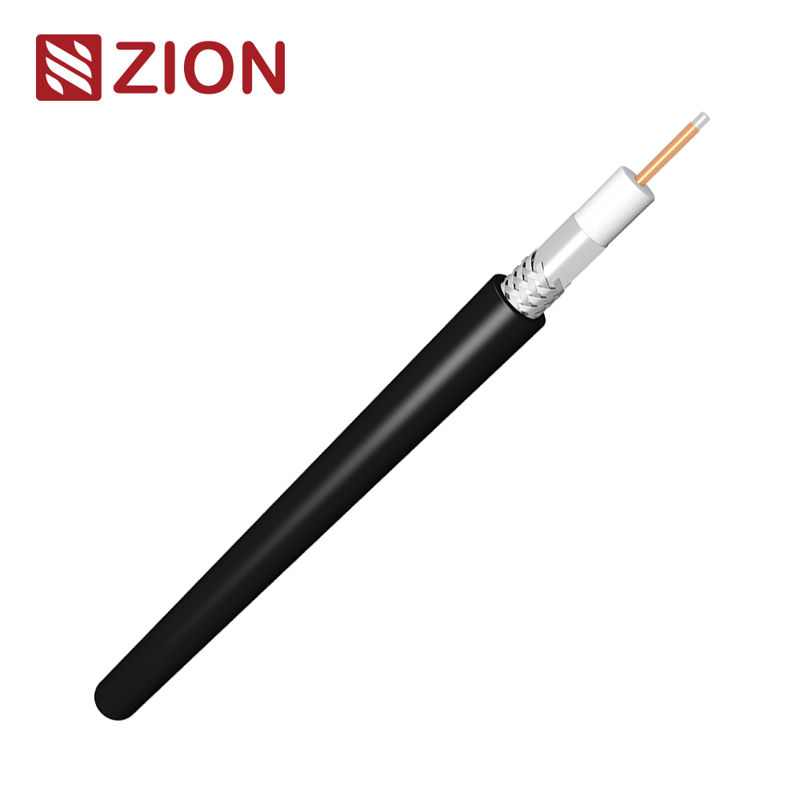

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.38

1.25

55

0.96

3.15

83

1.18

3.87

187

1.75

5.74

211

1.90

6.23

250

2.05

6.72

300

2.25

7.38

350

2.42

7.94

400

2.60

8.53

450

2.75

9.02

500

2.90

9.51

550

3.04

9.97

600

3.18

10.43

750

3.65

11.97

865

3.98

13.05

1000

4.35

14.27

Order Informations:

Marking

HELLOSIGNAL RG11 S 60% Jelly PE

CATV COAXIAL CABLE 7100202 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
