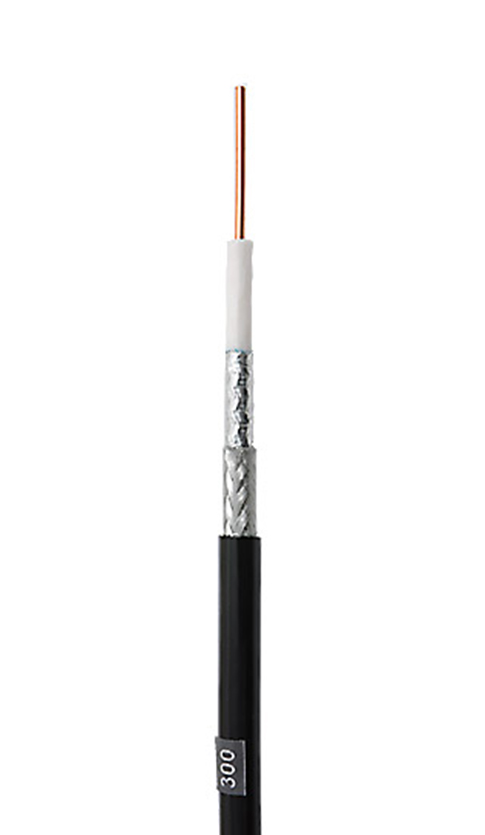

NO.7101006 LLC 300 CCA PE

LLC 300 CCA
NO.7101006

LMR300 was designed and produced by Times Microwave;

CNT300 was designed and produced by Compex;

LLC300 was designed and produced by Zion Communications.

This type of 50 Ohms coax cable with UV Resistant jacket.

LLC-300 is a drop-in replacement for RG-8/9913 cables.

Designed for antenna feeder jumper assemblies runs requiring a high-performance, flexible, low loss RF cable

We produce this model 365 days a year, giving you a five-star experience in terms of quality, price, delivery time and service. We welcome your inquiry and order.

Construction Parameters:

Inner Conductor

1.78mm Copper Clad Aluminum

Dielectric

4.83mm Foamed PE

Shield

Bonded AL Foil

Outer Conductor

Nom. 5.72mm Tinned Copper Braid

Jacket

7.62mm PE Black

Jacket Thickness

Application

Electrical Characteristics:

Capacitance

78.8 pF/m

Impedance

50 Ω

Velocity of Propagation

83%

Insulation Resistantce

>5000 M Ω.km

Shielding Effectiveness

> 90 dB

Inner Conductor DC Resistance

6.96 Ω/km

Outer Conductor DC Resistance

7.25 Ω/km

VSWR ≤ (Return loss≥dB)

5-3000MHz

1.20 (20)

800-1000MHz

1.10 (26)

1700-2000MHz

1.15 (23)

2000-2400MHz

1.15 (23)

Cross Section:

Mechanical and Environmental Properties:

Cable Bend Radius

38mm

Operating Temperature Range

-40 ℃ to +85℃

Cable Diamensions

7.62mm

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100m)

Avg.Power(KW)

30

3.50

1.78

50

4.50

1.38

150

7.90

0.79

220

9.60

0.65

450

13.80

0.45

900

19.90

0.31

1500

26.00

0.24

1800

28.70

0.22

2000

30.30

0.21

2500

34.20

0.18

3000

37.50

0.17

5800

54.30

0.11

Order Informations:

Marking

HELLOSIGNAL LLC 300 50 Ohm COAXIAL CABLE ×××M

Package

Inquired Length on Roll,Wooden Spool,Pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
